500kg Per Hour Small Wood Pellet Plant

Zhengzhou Fanda Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 500kg per hour small wood pellet plant in China. With abundant experience, we warmly welcome you to buy cheap 500kg per hour small wood pellet plant for sale here from our factory. For price consultation, contact us.



500kg per hour Small Wood Pellet plant



 Portable 2022 Factory Supplier Manufacturer Small Wood Pellet production Line is developed to meet the needs of family and small farm use and is made up of a Wood Chipping Machine, Hammer Mill, Air-Current Dryer / Small Rotary Drum Dryer, Mixer, Screw Conveyor, Conditioner, Flat Die Pellet Machine, Grade Sieve and Cooler, and a small semi-auto packing machine. Each process can run independently, so it doesn't affect overall equipment efficiency, and users can equip the whole line freely based on different raw materials and available space.

We offer 200kg/h, 300-400kg/h, and 400-500kg/h small wood pellet plants to suit your needs.



The small wood pellet line suits starters who want to make pellets or produce pellets on a small scale for home use. In Europe and North America, people make pellets to burn in fireplaces for home heating and community use; this small wood pellet line is a good choice.



This small wood pellet production line takes up little space, is easy to operate, uses little electricity, and can use many different raw materials to make pellets.



What raw materials are suitable for a wood sawdust pellet plant?

Pelletizing turns waste materials into solid fuel. The pellets are used for burning purposes. Wood pellets can be made from any agro-forestry waste: groundnut shell, sugarcane bagasse, caster shells/stalk, sawdust, coffee husk, paddy straw, sunflower stalk, cotton stalks, tobacco waste, mustard stalk, jute waste, bamboo dust, tea waste, wheat straw, palm husk, soybean husk, coir pitch barks/straws, rice husks, forestry wastes, wood chips, wood logs, and many other agro wastes.

This small wood pellet production line consists of a wood crusher or hammer mill to grind the raw material to 5 mm. Depending on your raw material, choose a suitable grinder, a flash dryer to reduce moisture to 12-15%, a screw conveyor to transfer the material to the pellet mill, and a flat die pellet mill to make pellets.

If your raw material is already sawdust, you don't need a wood crusher or hammer mill.

If your raw material moisture is below 15%, you don't need the dryer.

Machine list and specification of 400-500kg/h small wood pellet production line:

1. Wood crusher/Hammermill

The wood crusher/Hammer mill grinds raw material to <5 mm. If your raw material is wood logs, tree branches, or bamboo, a wood crusher is a good choice because it can make sawdust directly from these materials. If your raw material is straw, coconut shell, peanut shell, corn cobs, corn, wheat stalks, wood chips, wood residues, waste wood, etc., a hammer mill is much better for grinding them. If you have different raw materials for pellets in different sizes, a double-inlet crusher machine is the best choice because it combines the functions of a wood crusher and a hammer mill.

Model	Capacity	Motor power	Blades quantity
DCS600	600-800kg/h	1 Kw	4

2. Flash dryer

A Flash dryer, also called a pipe dryer, is a biomass drying machine suitable for drying small-sized biomass materials like sawdust and wood powder. In a 400-500kg/h small pellet line, a pipe dryer is economical because it is low-cost and takes up less space. The flash dryer can dry biomass from 30-35% to 112- 5% directly. If your raw material moisture is above 45%, choose a rotary drum dryer instead of a flash dryer.

Model	Capacity	Motor power	Weight
QL30	400-600kg/h	7.5Kw	2 80Kg

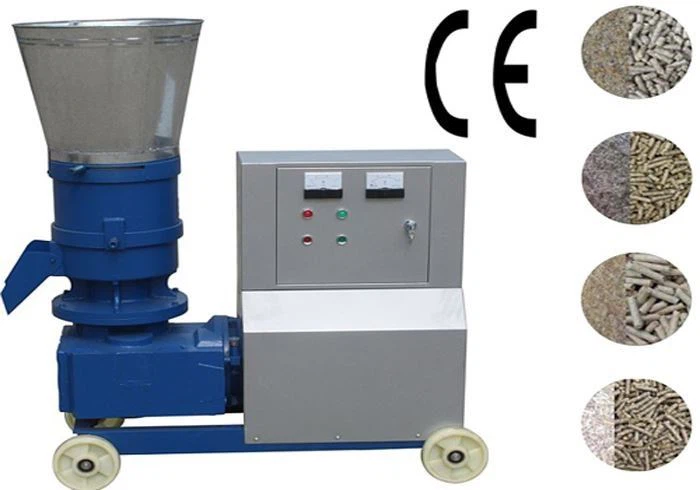

3. Electric flat die pellet mill

An electric flat die pellet mill suits small-scale pellet production and is the best solution for the pelletizing part of a small wood pellet line. It efficiently makes pellets from dried ground biomass. It can make 6 mm, 8 mm, and 10 mm diameter pellets. Nowadays, 6 mm wood pellets are the most popular. Based on your raw materials, we can calculate the best flat-die compression ratio to produce high-quality wood pellets.

Model	Capacity	Motor power	Weight
400B	400-500kg/h	30Kw	630Kg

Features of factory-price manufacturer small wood pellet making plant

PELLET STANDARDS:

Fines (fine particles)......1% maximum through a 1/8" screen

Bulk Density..................40 pounds per cubic foot minimum

Ash Content..................1% maximum (Premium grade)

                  ..................3% maximum (Standard grade)

Moisture Content...........8% maximum

Heat Content.................approximately 8200 Btu per pound minimum



1. We have the CE certificate for all our Series Hot Sale Mobile Biomass Wood Pellet Making Pl nt.



2. We have the self-protection device on our Series Hot Sale Mobile Biomass Wood Pellet Making Pla. When the pellet machine's running temperature exceeds the set normal standard, our machine stops automatically. This makes it easier for new operators.



3. The Electricity Consumption of the Hot Sale Mobile Biomass Wood Pellet Making Plant will save 30-50% electricity.
