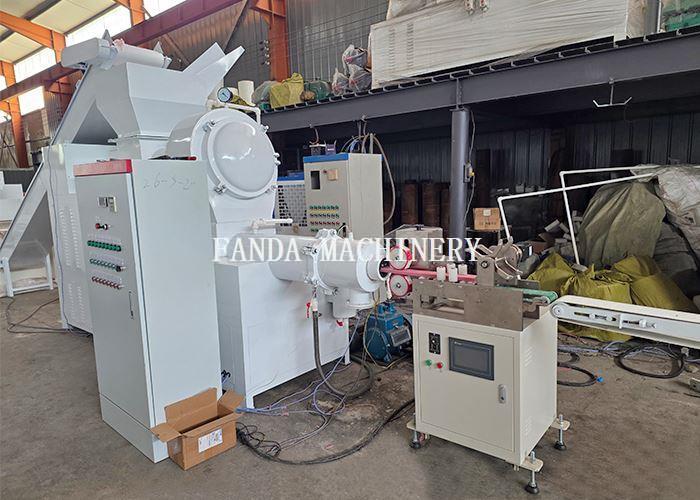

1000kg/h Laundry Soap Production Line

High working efficiency to make good quality laundry soap from soap noodles Easy to install, operate, and maintain Make high-grade laundry soap with 40-65% fatty acid content Capacity 1000kg/h

Send Inquiry

Description

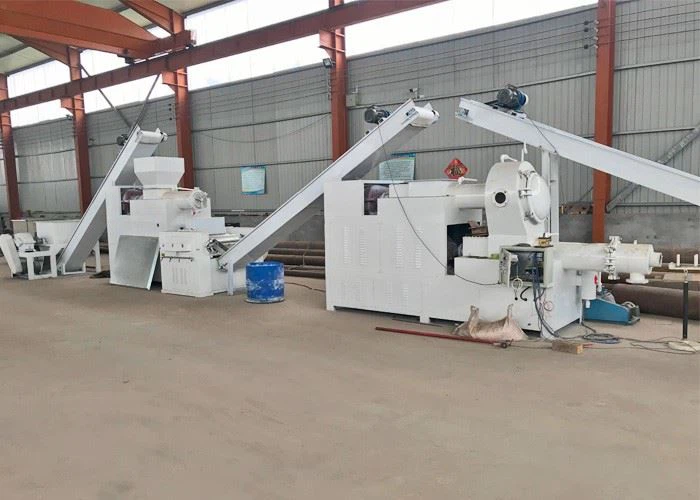

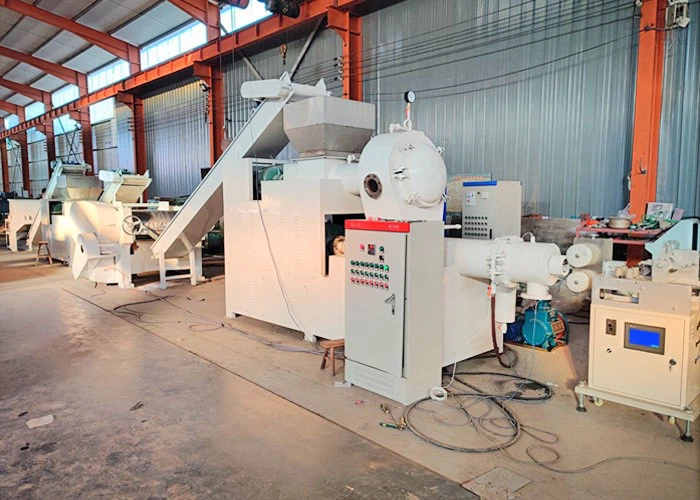

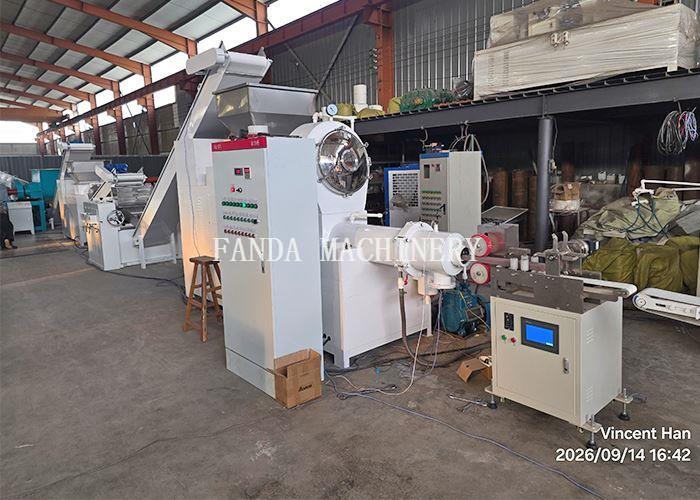

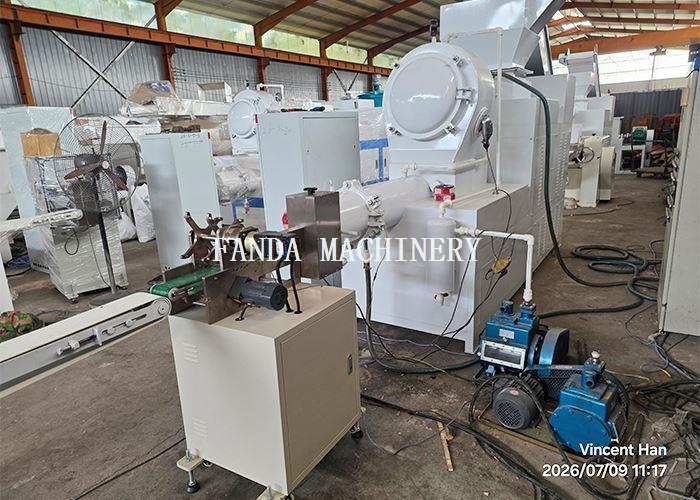

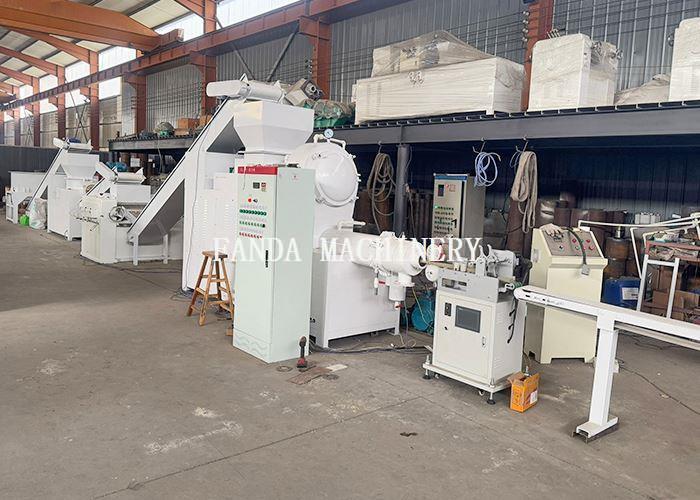

1000kg/h laundry soap production line

The 1000kg/h laundry soap production line is a whole line to make laundry soap from soap noodles, the process includes mixing step, refining step, milling step, extruding step, cutting step, and packing step. Use the 1000kg/h laundry soap production line can make high-grade laundry soap with 40-70% fatty acid, applied double vacuum pressing technology, the final soap is compact and not easy cracking.

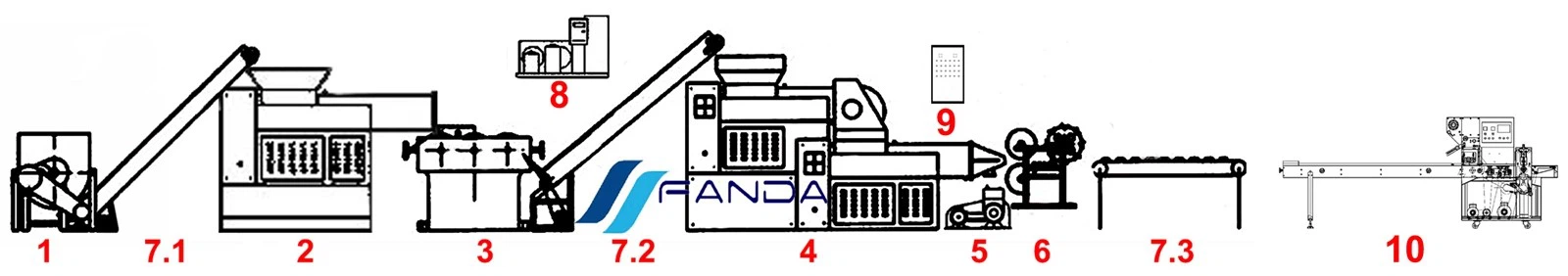

Flowchart of 1000kg/h laundry soap production line

Laundry soap line

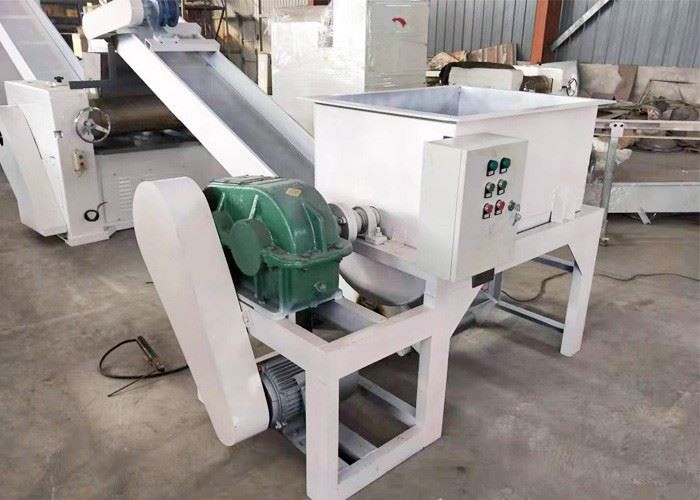

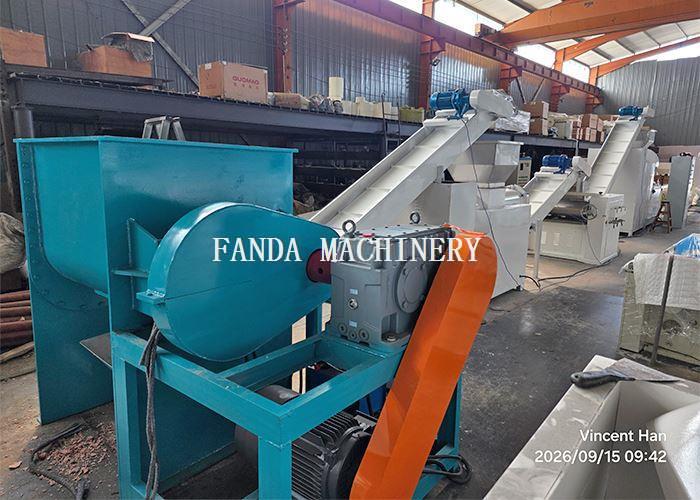

1. Mixer: Mixing soap noodles with ingredients like Caustic soda, Sodium silicate, Essence and Pigment

2. Refiner mill: Milling and refining the mixed raw material to press them into granular, pressing force can make the soap noodle and other ingredients mixed together more uniformly thus to improve smoothness and tighteners of finished soap

3. Three roller mill: Milling and refining mixed raw materials and press them to lamina form / schistose, so that to improve the fineness and evenness thus to make finished soap bar more tighten and smooth

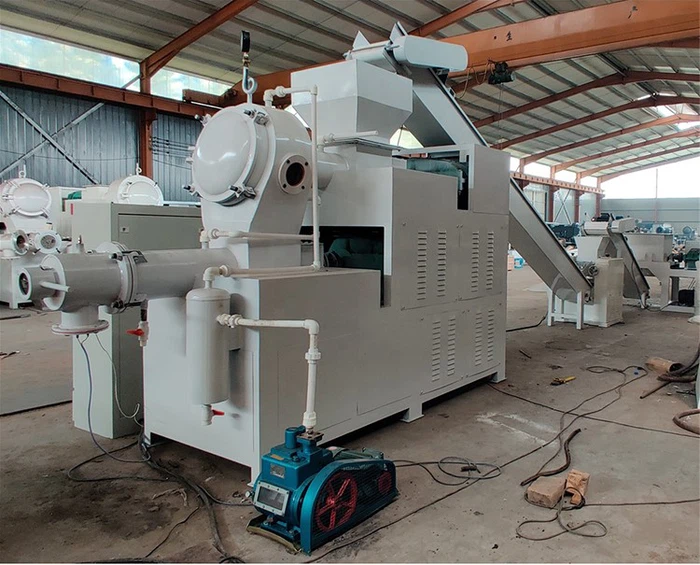

4. Duplex vacuum plodder: extruding raw material to soap bar under vacuum condition

5. Vacuum pump: installed on duplex vacuum plodder, exhausting water and impurities in extruding chamber and make it vacuum circumstance

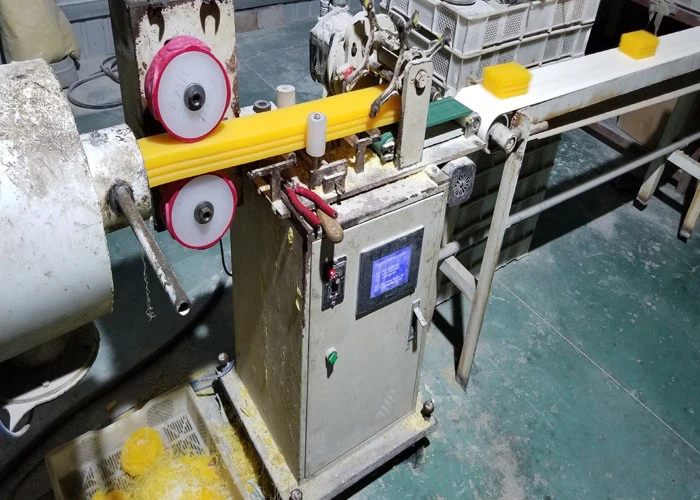

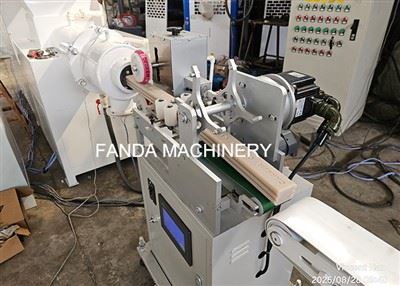

6. Laundry soap cutting machine: press logo on soap bar and cutting the soap bar to each laundry soap

7. Conveyor:

7.1 PVC belt conveyor send mixed material from mixer to refiner mill

7.2 PVC belt conveyor send milled schistose from three roller mill to duplex vacuum plodder

7.3 Flat belt conveyor to collect finished laundry soap

8. Chiller: Supply cooling water and circulating the cooling water so that to cooling down refiner mill, three roller mill and plodder

9. Electric panel: Control all the machines in the production line start/sop and protect the motors

Mixer and conveyor 7.1 have independent electric panel, so that it is easier to control raw material feeding

10. Packing machine: Pack finished laundry soap into bag and print date on the bag

Working condition of 1000kg/h laundry soap production line

1. Water: 1 cube meters circulating water (no consumption)

2. Electricity: 80.24Kw.h

The standard voltage is 380V, 50Hz, we can customize the motor as your requirement of voltage

3. Installation area: length 25 meters, width 8 meters, height 3.5 meters.

This area includes storage soap noodle, final laundry soap and workers operation place.

4. Labor: need 5-6 people to operate the production line

Two people feed the soap noodle to the mixer and operate the mixer, since the mixer is batch working, need people to control discharge the mixed soap noodle

Two people work at the packing machine place to pack the soap

One people take of the whole line while it is working

One or two people move the soap noodle and storage the final laundry soap.

Detailed machine list of 100kg/h laundry soap production line

No.	Machine name & Specification	Model	Quantity	Power
1	Mixer Capacity: 300Kg/batch Mixing soap noodle and pigment, perfume or another ingredient together evenly Weight: 870Kg Dimension: 2300x1200x1850mm	WJ1000	1	11Kw
2	Refiner mill Capacity: 1000-2000kg/h Milling and refining the mixed raw material Weight: 950Kg Dimension: 2450x970x2250mm	JM273	1	11Kw
3	Three roll mill Capacity: 1000kg/h To grinding raw material and prepare for the next step Weight: 1735Kg Dimension: 1700x1200x1300m	SG260	1	11Kw
4	Duplex vacuum plodder Capacity: 1000kg/h To make laundry soap Weight: 2035Kg Dimension: 3850x1000x2290mm	ST245	1	11+15Kw
5	Vacuum pump Capacity: 8Liter/second Make the plodder extruding chamber vacuum Weight: 65Kg Dimension: 600x500x350mm	B8	1	1.1Kw
6	Laundry soap cutting machine To cut the soap bar into laundry soap, press logo on soap bar Cutting length: 60-1000mm adjustable Weight: 128Kg Dimension: 820x500x1080mm	FZ40	1	1.5Kw
6.1	Laundry soap mold Design according to buyer requirement on soap shape, size, weight, logo	FZ40	1	/
7	7.1 Conveyor send raw material from mixer to refiner mill, dimension 4000x600x600mm 7.2 Conveyor send raw material from refiner mill to plodder, dimension 4000x600x600mm 7.3 Flat conveyor collect soap after cutting machine, dimension 3000x600x850mm PVC conveyor belt which is food grade, conveyor shell make of carbon steel Q235 Total weight 480Kg	FDP50	1	1.5*3=4.5Kw
8	Chiller High temperature chiller, to supply cooling water to refiner mill, three roller mill, duples vacuum plodder, cooling down the machines and improve machine working stability Cooling temperature: 5-15 Celsius Equipped two compressors, two air fan and water pump Weight: 390Kg	LS12	1	11.34Kw
9	Electric panel To control all of the machines Electrical elements CHNT brand	XL21	1	/
10	Packing machine To wrapping laundry soap into bags Packing material: OPP/CPP film, OPP and PE composite film, PET and PE composite film., etc one layer or multi-layer composite film roll Control system: Triple servo system Machine setting from touch screen Language: English Packing speed: 60-150 bag/minute Packing film max width: 350mm Packing film roll max diameter: 320mm Pack soap length: Infinite length, servo motor adjustable Packing soap width: 20-80mm Pack soap max height: 60mm Voltage: 220V, 50Hz, Single phase Overall dimension: 3990x800x1460mm Weight: 500Kg	PT350	1	2.8
