2000Kg/h automatic Laundry Soap bars making production Finishing Line

Introduction of 1500-2000Kg/h Laundry Soap production Finishing Line

This laundry soap production line is designed to make laundry soap bars and the bar soaps for laundering and washing clothes, which use soap noodles and other ingredients as raw material, designed capacity is 1500-2000Kg/h for finished laundry soaps. From this production line can make various sizes and shapes medium and high grade laundry soaps which have TFM (totally fatty acid) contain from 35% to 72%.

Main raw material: Soap Noodles

Ingredient: Caustic soda, Zeolite, Perfume, Pigment or the ingredients according to buyer's formula

Water: Water circulating in jacket of augers on duplex vacuum plodder to cooling the machines

Installed power: 110.5Kw, electricity consumption about 85-90Kw.h

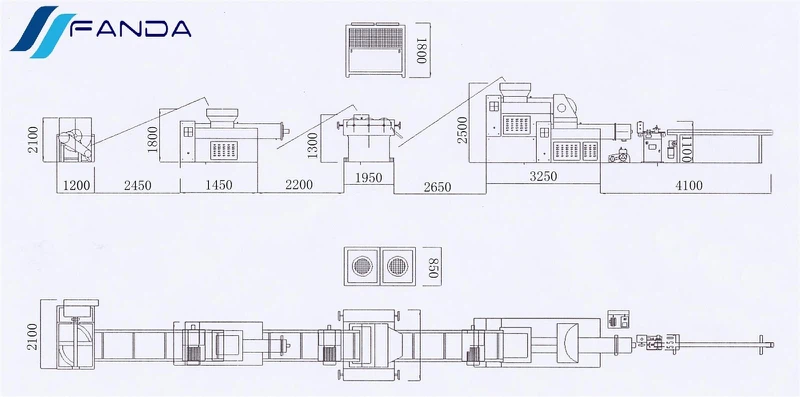

Installation size: 25x8x3.5 meter (LxWxH)

Labor required: 6-8

We have ability to suppy 300kg/h, 500kg/h, 1000kg/h and 2000kg/h Laundry soap lines

We can produce mold to make various shape and size laundry soaps, we can design the mold according to buyer requirement on the laundry soap shape, size and logo will press on the laundry soaps.

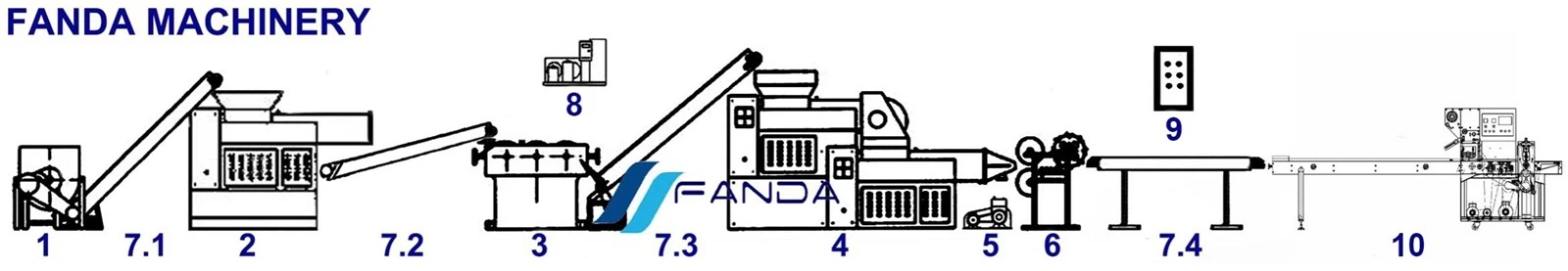

1500-2000Kg/h Laundry Soap Production Line Working Flowchart



1500-2000Kg/h Laundry Soap FInishing Line Machine List and Technical Data

1. Mixer

Model: WJ1000, capacity 300Kg per batch, equip with stair for easy loading

Motor: 11Kw

Dimension: 2100x1200x1500mm

2. Refiner mill

Model: JM273, capacity 200Kg/h

Motor: 11Kw

Dimension: 2450x970x1700mm

3. Three roller mill

Model: SG405, capacity 2000kg/h

Roller quantity: 3

Roller diameter: 405mm

Roller working area length: 810mm

Motor: 15Kw

Dimension: 2100x1950x1350mm

4. Duplex vacuum plodder

Model: ST325, capacity 2000Kg/h

Upper auger motor: 15Kw

Lower auger motor: 30Kw, speed inverter adjustable

Heating power: 2.5Kw

Dimension: 4300x1100x2500mm

5. Vacuum pump

Model: B15, capacity 15 Liters/second

Motor: 1.5Kw

Dimension: 800x550x600mm

6. Laundry soap cutting machine

Model: FZ40

Cutting length: 60-1000mm adjustable

Max cutting thickness: 65mm

Max cutting width: 100mm

Motor: 1.5Kw, 380V, 50Hz, 3 phase or customized

Dimension: 850x500x1100mm

7. Conveyors

7.1 Conveyor between mixer and refiner mill

Dimension: 3000x600x600mm, motor 1.5kw

7.2 Conveyor between refiner mill and three roller mill

Dimension: 2000x600x600mm, motor 1.5kw

7.3 Conveyor between three roller mill and duplex plodder

Dimension: 4000x600x600mm, motor 1.5kw

7.4 Conveyor after laundry soap cutter to collect laundry soaps

Dimension: 3000x450x850mm, motor 1.5kw

8. High temperature chiller

Model: LS15

Cooling Temperature: 5-20 °C

Dimension: 1750x850x1700mm

9. Electric panel

Control all the machines in this production line

10. Packing machine (Optional)

Model: PT350

Packing speed: 40-150 bag/minute (decide by soap size)

Packing film roll width: max 340mm

Packing film roll diameter: max 320mm

Packing bag length: ≥50mm

Packing bag width: 30-160mm

Packing bag height: ≤60mm

Motor: 2.8Kw, 220V, 50/60Hz, single phase

Dimension: 3905x765x1375mm

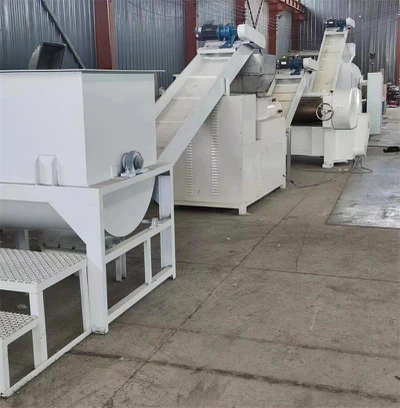

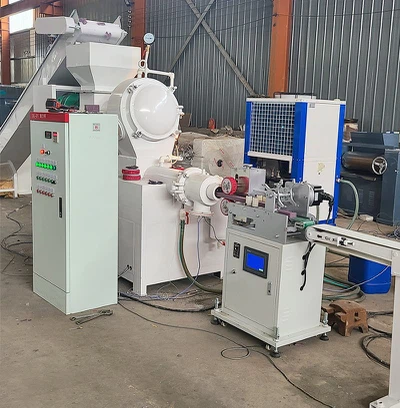

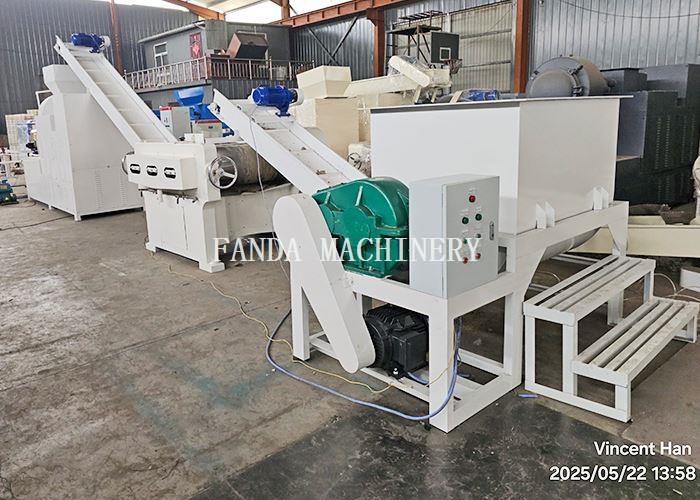

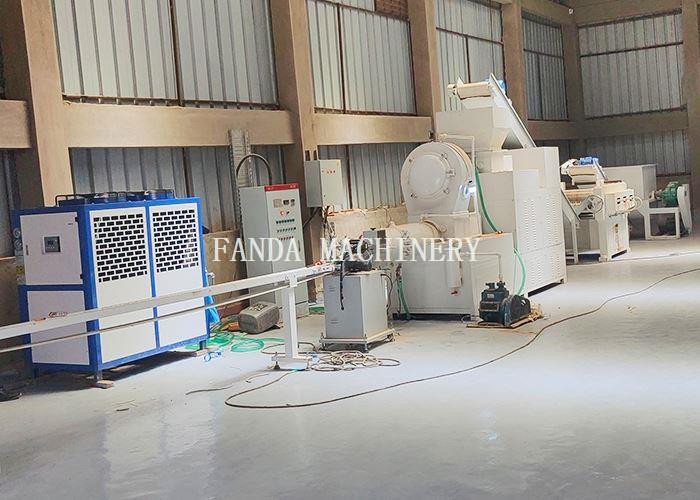

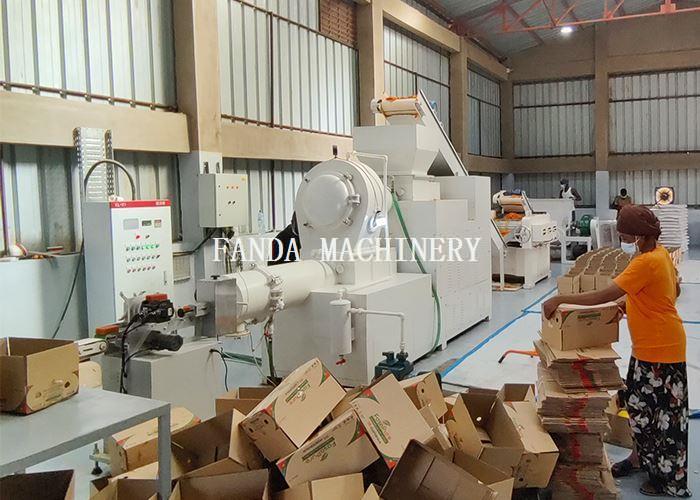

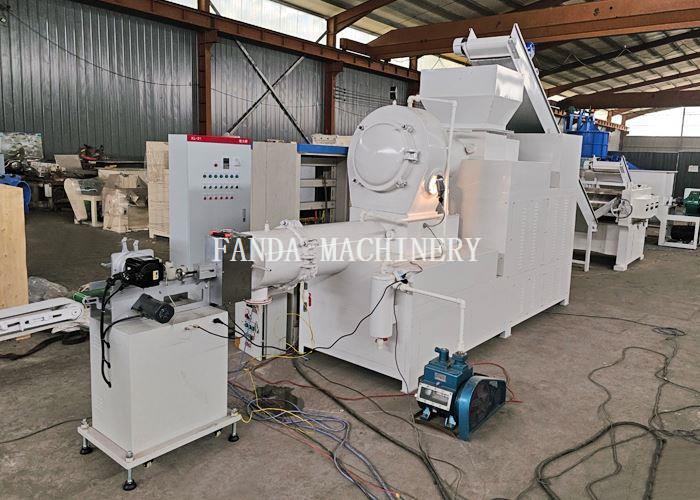

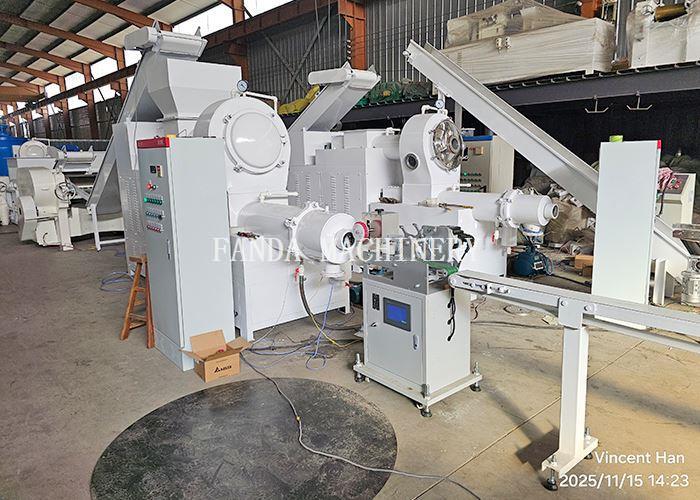

1500-2000Kg/h Laundry Soap Finishing Line Picture
