1T/H Sawdust Pellet Plant
the biomass materials should be wood waste dust, sawdust, corn stalk, peanut shells, agri waste, etc. While the wood waste can be all kinds of raw materials, such as spruce tree waste, pine tree waste and other sawdust waste, tree branches and shavers or parings from wood working factory and furniture manufacturers.
Description
Zhengzhou Fanda Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 1t/h sawdust pellet plant in China. With abundant experience, we warmly welcome you to buy cheap 1t/h sawdust pellet plant for sale here from our factory. For price consultation, contact us.
1T/H Sawdust Pellet Plant
It is mainly suitable for granulation of crude fibers, such as sawdust, rice husk, cotton stalk, sunflower stalk,
peanut shell, bamboo, bagasse, alfalfa, empty fruit bunch, palm fiber, cottonseed coat, weeds and other crop straw, household waste, waste plastic, and forest waste. It has a low bonding rate and is difficult to form materials for granulation, compaction, and rod-making. It can also be used for low-temperature granulation of bio-bacterial fertilizer and compound fertilizer.

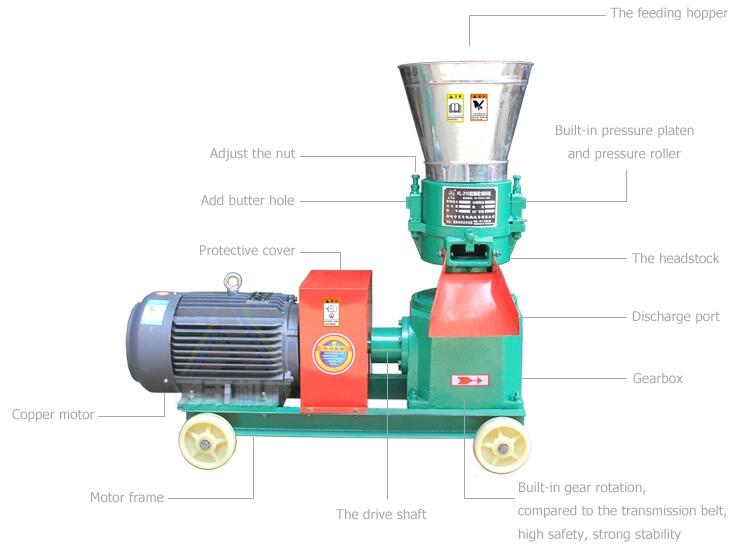

Structure of 1t/h sawdust pellet plant：
1. High precision gearbox-driven transmission system, about 20% higher than belt driving;
2. Simens motor, SKF/NSK bearing, Germany oil seal to ensure long service time;
3. Advanced frequency-conversion motor, overload protection device, magnetic separating device is designed to ensure safety and long service time;
4. Advanced compensation type serpentine spring coupling to ensure high efficiency, low noise, and long service time.
5. High quality of forging body, HT250 material, which makes it much more durable and noise numerously decreased, greatly improve the driving efficiency.
6. Enforced feeder, even feeding stainless steel strengthened promotor and increase the spraying area and improve the production capacity.
Parameter of 1 t/h sawdust pellet plant:
| Model | Power(kW) | Output(kg/h) | Weight(kg) | Packing Size(mm) |
| 200B | 3phase 7.5 | 80-120 | 215/245 | 950*450*1050 |
| 300B | 3phase 22 | 250-350 | 540/575 | 1350*750*1400 |
| 400B | 3phase 30 | 350-450 | 770/810 | 1400*800*1450 |
| 420B | 3phase 37 | 400-600 | 1100/1200 | 1630*620*1400 |
| 550B | 3phase 55 | 500-800 | 1770 | 2300x750x1850 |

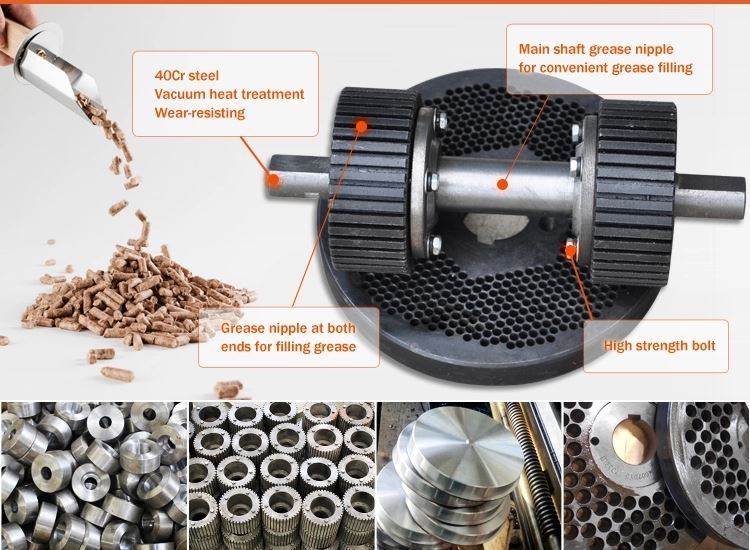

The parts of 1 t/h sawdust pellet plant:
The final pellet size will be 2mm,3mm,4mm,5mm,6mm,8mm,10mm,12mm by your demands.

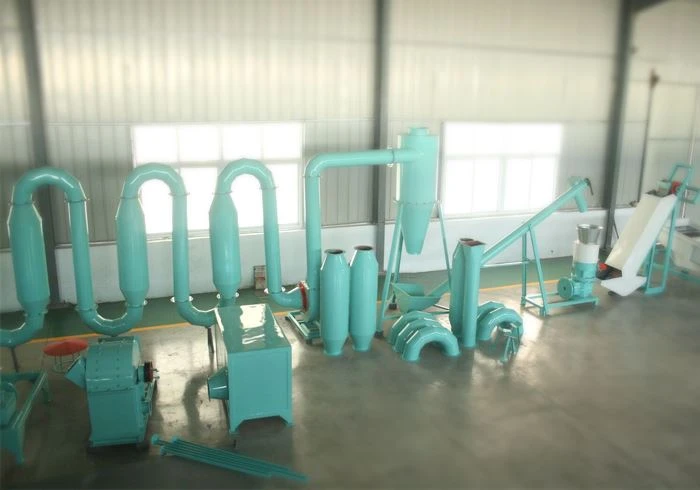

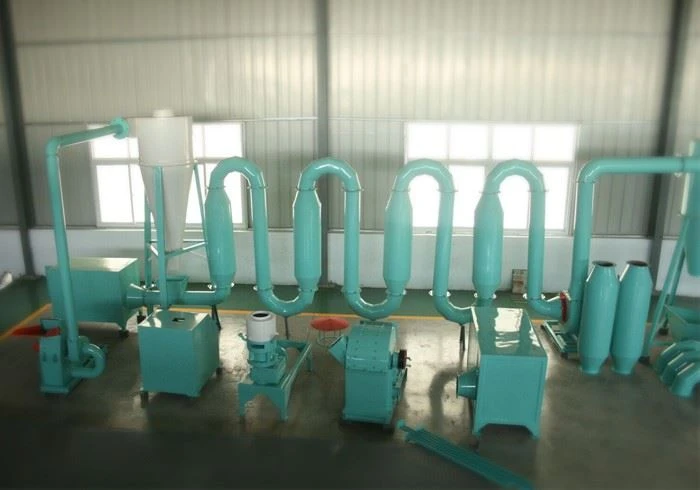

The 1t/h sawdust pellet plant includes a wood crusher, wood dryer, wood pellet mill, cooler machine, packing machine.
