500Kg/h Bath Soap Toilet Soap Production Line

Bath soap, toilet soap, hotel soap production line, capacity 500kg/h, atrting with soap noodles as raw material, ideal machines to make high quality toilet soaps.

Send Inquiry

Description

Introduction for 300-500Kg/h Toilet Soap Bath Soap Production Line

This soap line is a soap finishing line designed to make toilet soap, bathing soap or hotel soap from soap noodles and other ingredients as raw material, the designed capacity is 300-500Kg/h for finished soaps. From this production line can make various sizes and shapes medium and high grade toilet soaps which have TFM (totally fatty acid) contain from 35% to 72%.

Main raw material: Soap Noodles

Ingredient: Caustic soda, Zeolite, Perfume, Pigment or the ingredients according to buyer's formula

Water: Circulating water in inter layer of augers on refiner mill and duplex vacuum plodder to cooling the machines

Installed power: 68.2Kw, electricity consumption: 50-55Kw.h

Installation size: 25x8x3.5 meter (LxWxH)

Labor required: 6-8

Designed with cooling technology, use high temperature chiller to cooling water to 5 Celsius thus to circulating the cold water into refiner mill and duplex vacuum plodder so that to cooling down the machine and improve machine stability thus to make good quality soaps. Use low temperature chiller cooling the coolant to -18 Celsius, circulating the cold coolant to the molds on toilet stamping machine, thus to make the soaps easy off mold so that to make high quality toilet soaps

300-500Kg/h Toilet Soap Production Line Working Flowchart

Bath Soap Production Line 300-500Kg/h Toilet Soap Line Machine List

1. Mixer: Mixing soap noodles with ingredients uniformly

Model: WJ700, motor 5.5Kw

2. Refiner mill: Refining and mill the mixed raw materials and extruding them to granules

Model: JM219, motor 7.5Kw

3. Three roller mill: Milling and refining mixed raw materials and press them to schistose

Model: SG260, motor 11Kw

4. Duplex vacuum plodder: extruding raw materials to soap bar

Model: ST219, upper auger motor 7.5Kw, lower auger motor 11Kw, heating power 2.5Kw

5. Vacuum pump: installed on duplex vacuum plodder, exhausting water and impurities in extruding chamber

Model: B8, motor 1.1Kw

6. Toilet soap molding/stamping machine: make toilet soap

Model: XD120, motor 2.2Kw, stamping speed 60-120 pieces per minute

7. Low temperature chiller: cooling mold on toilet soap stamping machine

Model: LD5, power 4Kw

8. Conveyors:

8.1 Length 4 meters belt conveyor send mixed material from mixer to refiner mill

8.2 Length 4 meters belt conveyor send milled schistose from three roller mill to duplex vacuum plodder

8.3 Length 4 meters flat conveyor to collect finished toilet soaps

8.4 Length 7 meters belt conveyor send residues from toilet soap stamping machine to duplex vacuum plodder

9. High temperature chiller: Cooling water and circulating it to refiner mill, duplex vacuum plodder so that to cooling the machines

Model: LS10, motor 9.9Kw

10. Electric panel: Control all the machines in the production line

We have ability to deisgn mold and produce mold which can make toilet soaps according to buyer requirement on toilet soap shape, size, weight and logo will press on the toilet soaps

We can manufacture machines all made of carbon steel, we can manufacture machines which contact part made of stainless steel SS304

We have toilet soap production lines with different capacities, such as 100-200kg/h, 300-500kg/h, 500-1000kg/h, 1000-2000kg/h

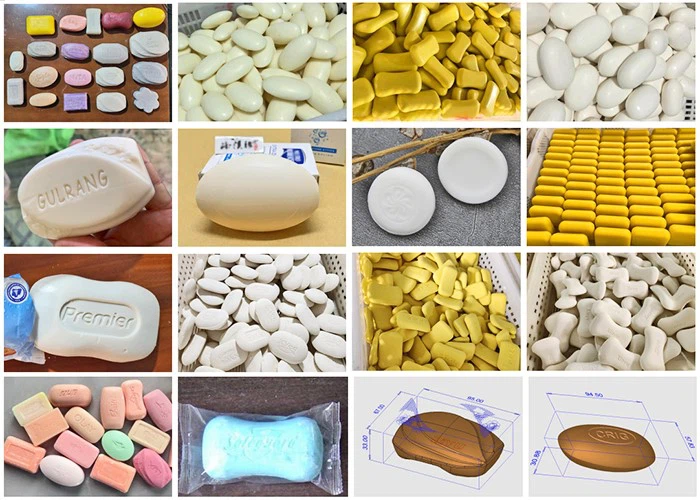

Toilet soaps
