1000-3000kg/h Automatic Complete CE Biomass Wood Pellets Line
The automatic complete wood production line also includes the simple plant, the standard plant and the semi-auto full plant. It is up to the client budget. It is not fixed, because everything in the plant can be changed according to the final budget. There are various capacity for your choosing:500-800kg per hour; 1-2ton per hour; 3-4ton per hour; 5-10ton per hour; 10-20ton per hour wood pellet production line.
Description
1000-3000kg/h Automatic Complete CE Biomass Wood Pellets line

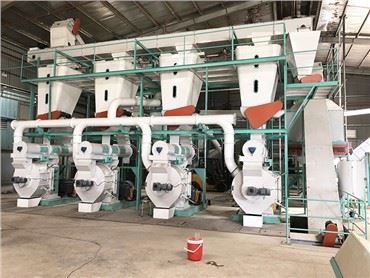

Introduction of biomass wood pellets line
Normally a wood pellet plant includes the wood chipping part, wood crushing part, drying part, pelleting part, pellet cooling part, and pellet packaging part. According to the raw material features, there are some differences before pelleting part.
Wood pellet plant is to make wood pellets (also called biomass fuel pellets) from wood logs, tree branches, sawdust, wood chips, wood residues, wood shavings, wasted wood, as well as other biomass material like a peanut shell, EFB, coconut shell, rice husk, bagasse, cotton stalk, straw, corn stalk, corn cob., etc.
We have a college team with good experience on design the pellet plant, produce the machines, exporting the machines, install the machines, training staff for customers,s, and service our customers.
Please feel free to tell us the raw material and capacity you need, we will give you professional proposes accordingly with the best machine and best price.
Flow chart of 1-1.5t/h biomass wood pellets line
| Main Equipment | Main Brand |
1.Wood Chipper 2.Wood Crusher 3.Sawdust Dryer 3.Wood Pellet Machine: MZLH420 4.Cooling Machine 5.Automatic Packing Machine 6.Electric Control System | Siemens Motor SKF Bearing Schneider electric components Various capacity:1-10t/h |
More detailed information about 1-2 ton/h wood pellet production line, please feel free to send our email, we will reply to you as soon as possible. | |
| Parameters of wood pellet mill | |
 | Model:350 Capacity:500-800kg/h Power:55kw Weight:3500kg Dimension:2500*1100*1600mm |
Model:420 Capacity:1000-2000kg/h power:110kw Weight:4000kg Dimension:2800*1150*1730mm | |
Model：508 Capacity:1500-2500kg/h Power:160kw Weight:4500kg Dimension:3000*1260*1860mm | |
Material of biomass wood pellets line:
Fanda pellet line is capable to process multiple kinds of biomass materials which gives you the flexibility to choose the most economic raw material based on availability and price. Below are suitable raw materials for pelletizing.
Wood Materials: Wood logs (such as pinewood, rubber tree, eucalyptus, Robinia pseudoacacia, salix), wood chips, shavings, and sawdust.
Agricultural Raw Materials: Straw (such as maize straw, wheat straw, canola straw, cotton straw…), Chaff (such as rice husk, rice bran, wheat husk…), Peanut Shell, Reed, Bagasse, Pineapple Peel, soybean stem…
Others: Palm fiber, Palm Kernel Shell (PKS), Coconut Shells, Waste Paper, Moso Bamboo, Grass (such as alfalfa, The giant king grass, elephant grass), and other biomass rubbish.
Finished pellets of the biomass wood pellets line
The size of fished wood pellets or biomass pellets has various choices: 4, 6, 8, 10, 12mm, or another customized diameter. At the same time, you can customize the flat die of the wood pellet machine with different thicknesses and compression ratios to adapt to different materials and realize the best pelleting result.
The features of biomass wood pellets line:
The main motor drive the ring die mold rotated. the press roller that was placed inside of the roller does not revolution but will rotate because of the friction of the ring dies mold and sawdust wood powder raw material.
The biomass wood sawdust powder raw material was spread evenly into the space between the ring die and roller, and was press into the mold hole, formed column shape pellet, the pellet will rotate along with the rotating ring die mold and will be cut when the length of the column pellet reaches to a certain value.
Feeder: feeding raw material into the wood pelleting chamber. the feeder is made of stainless steel.
Forced feeding unit: since the raw material is fluffy, and the bulking value is higher, we equip the force-feeding sets.
Pellet making unit: ring die mold and press roller inside work together to make the raw material into a wood pellet.
Main motor: driving the pellet-making system.
Why choose our wood pellet production line
1. Efficient. The wood pellet production line is an efficient source of heat because they contain very low levels of moisture and ash when compared to woodchips or cordwood. Virtually all of the material is burned and converted to heat.
2. Cost-effective. The wood pellet production line is economically competitive with home fossil fuel options and electric heat.
3. Environmental friendly. The biomass pellet production line is a sustainable fuel source, and burning wood pellets is carbon neutral.
4. Renewable. The biomass pellet production line is a biomass product made of wood waste or other forest-thinning byproducts. According to data collected by the Pellet Fuels Institute, the wood pellet production line is an unlimited fuel source.
Our Service
Pre-Sales Service
Inquiry and consulting support.
Sample testing support.
View our Factory.
After-Sales Service
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.
Our machines for biomass wood pellets line
