Large Capacity Multi Function Wood Crusher For Chips
The wood chipper is mainly composed of chassis, dead knife base, dead knife, chipping rod, rotor, main shaft, hammer or blade, upper feeding mechanism, below feeding mechanism, feeding device, discharge device, hydraulic system, and electric control system.
Description
Introduction:
The wood crusher is an efficient and versatile wood processing equipment, which is widely used in wood processing, furniture manufacturing, building decoration and other industries.
Its main features include:
Wide applicability: It can crush various woods, such as stumps, roots, trunks, branches, etc., and can even be used to crush packaged straw.
Efficient and stable: The equipment has a compact structure, simple operation, convenient maintenance, good crushing effect, high stability and strong reliability.
Flexible adjustment: According to the needs, the shape of the finished product can be freely adjusted from sawdust, granules to flakes to meet different production needs.
Working principle:

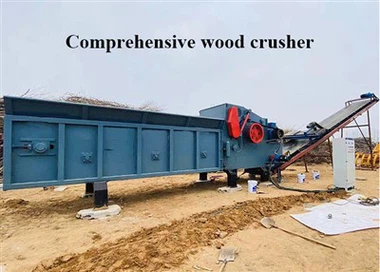

The machine consists of a feed port, a crushing chamber, a power and control system. The wood enters from the feed port and is quickly crushed by the interaction between the high-speed rotating blade and the fixed blade. The crushed wood is separated by a screen to achieve different crushing effects to meet diverse needs. The equipment is not only simple in structure and easy to maintain, but also has high crushing efficiency. It is an ideal choice for wood processing, forest felling and other places. By adjusting the screen, the size of the wood crushing can be easily controlled to achieve multi-functional applications.
Technical Parameters：
|
Model |
BX1300-600 |
BX1400*600 |
BX1600*800 |
BX1850*1000 |
| capacity | 10-15T/H | 15-20T/H | 30T/H | 35-40T/H |
| Feed chain plate width | 1300mm | 1400mm | 1600mm | 1800mm |
|
Number of Knives |
4 pieces |
4pieces | 4 pieces | 6 pieces |
|
Number of hammerheads |
20 pieces |
24 pieces | 28 pieces | 36 pieces |
|
Max input material size |
Wood material Φ<38cm, or EFB size < 600x500mm |
Φ<300-400mm |
Φ<500mm | Φ<600mm |
|
Discharge material size |
30-1100mm or EFB fibber 10-50mm |
30-1100mm | 30-1100mm | 30-1100mm |
|
Power |
187Kw |
212kw | 285kw | 360kw |
|
Electric panel |
1 motor soft starting to reduce starting amps, 2 pieces remote controller |
1 motor soft starting to reduce starting amps, 2 pieces remote controller | 1 motor soft starting to reduce starting amps, 2 pieces remote controller | 1 motor soft starting to reduce starting amps, 2 pieces remote controller |
|
Dimension |
8500x2400x3000mm |
8500*2600*3000mm | 9500*3000*3100mm | 9500*3100*3100mm |
|
Total weight |
14 tons |
18tons | 23tons | 28tons |
Parts for wood log pallet biomass chipper machine:

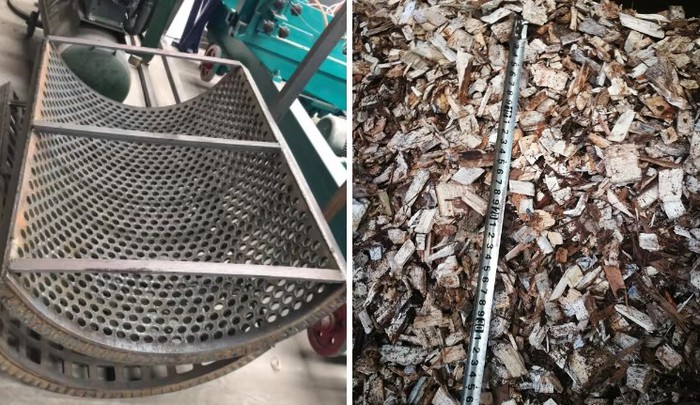

Customize different mesh, then you will get different size wood chips and sawdust.
After-sales service:
1. Debug the machine carefully before shipment.
2. Train customer technicians and provide operation videos and precautions.
3. Arrange customs declaration, shipping, insurance, etc.
After-sales service:
1. Our machine warranty period is 12 months. We will provide spare parts free of charge within 12 months, but customers need to bear the freight. After the warranty period, we charge the cost price and freight.
2. Provide solutions to installation or use problems within 3 working hours.
3. Engineers are able to install and train operators overseas.
