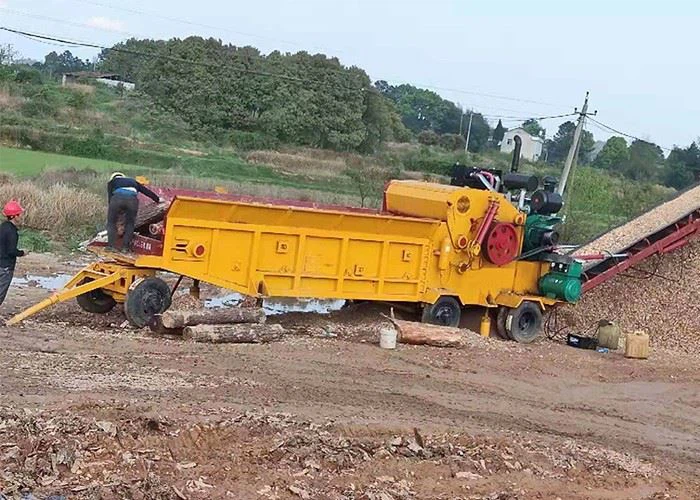

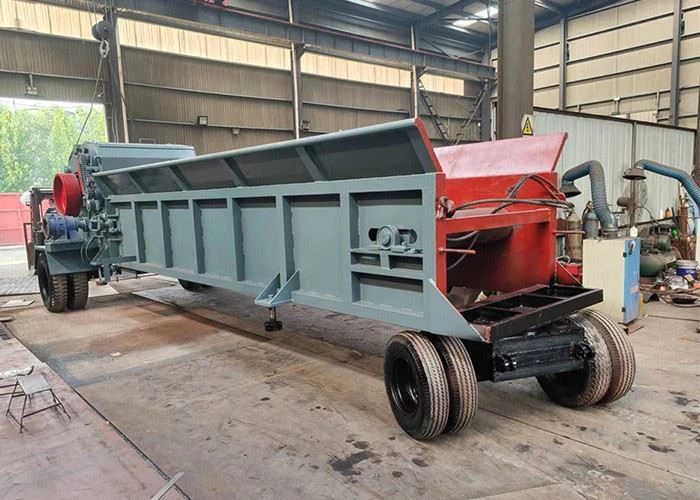

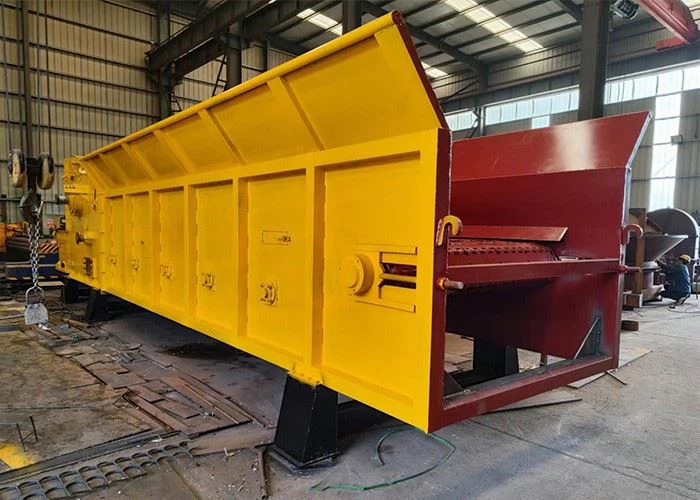

Comprehensive Wood Crusher

Zhengzhou Fanda Machinery Co., Ltd. is one of the leading manufacturers and suppliers of comprehensive wood crusher in China. With abundant experience, we warmly welcome you to buy cheap comprehensive wood crusher for sale here from our factory. For price consultation, contact us.

Introduction：
1. The Comprehensive crusher is used to pulverize various biomass materials and agricultural waste, such as wood logs, trees, tree roots, waste wood pallets, waste wood, waste wood furniture, wood residues, sawmill cuttings, bamboo, veneer, EFB, building formwork, MDF, straw, grass, and rice straw.

2. The machine crushes biomass branches into wood chips or fibers to reduce size. It is generally used in the wood chip manufacturing industry, the paper industry, and the paper industry.

3. The Comprehensive crusher consists of a feed conveyor, a feed roller, a knife roller, a cutting blade, a screen, a motor, a base, a hydraulic system, a discharge conveyor, and an electrical control system.

Working Principle:
1. The conveyor helps to feed the raw materials into the machine more easily. The raw materials can be loaded onto the conveyor manually or placed on this conveyor using a wood grab/loader.
2. The feed roller is installed at the feed port and is controlled by the hydraulic system to move up and down to adjust the feeding capacity. When the raw material comes from the feed conveyor, the teeth on the feed roller swallow the raw material into the feed chute and send it to the knife roller.
3. The knife roller is installed in the center of the machine and rotates with the main motor. There is a cutting blade on the knife roller. There is a fixed lower blade on the frame of the biomass crusher. When the raw material comes to the knife roller, both the rotating blade and the lower blade cut it.
4. Equipped with a hydraulic oil station to control the feed roller, so that it can lift the feed chute slightly to make it easier to enter larger-sized raw materials, and then the upper plate of the chute slowly falls to protect the feed roller.
5. The wood chips/EFB fibers will fall onto the screen and be discharged from the holes on the screen to the discharge conveyor.
6. The machine is equipped with a 12-meter-long discharge conveyor.
7. The biomass crusher is equipped with an electrical panel, through which the start and stop of the main motor, feed roller motor, feed conveyor motor, discharge conveyor motor, and hydraulic system motor can be controlled.

Technical Parameters：
