Drum Chipper Machine

Zhengzhou Fanda Machinery Co., Ltd. is one of the leading manufacturers and suppliers of drum chipper machine in China. With abundant experience, we warmly welcome you to buy cheap drum chipper machine for sale here from our factory. For price consultation, contact us.



Drum chipper machine

1. Drum chipper machine technical data

Model	BX216	BX218A	BX2110	BX2113
Capacity	5-8t/h	8-12t/h	15-20t/h	20-30t/h
Main motor	55kw	110kw	160kw	200kw
Inlet conveyor	6m	6m	6m	6m
Inlet conveyor motor	3kw	4kw	11kw	11kw
Feeding roller	4 units	4 units	6 units	6 units
Feeding roller power	4kw	5.5kw	11kw	11kw
Cutting drum diameter	600mm	800mm	1000mm	1300mm
Cutting drum speed	650rpm	650rpm	500rpm	500rpm
Inlet chute size	300x600mm	400x800mm	1000x500mm	1300x500mm
Rotating blade	4pcs	4pcs	2pcs	2pcs
Bottom blade	1pc	1pc	1pc	1pc
Feeding speed	0.63m/s	0.63m/s	0.63m/s	0.63m/s
Max intake wood Φ	< 20 cm	< 30 cm	< 40 cm	< 40 cm
Wood chip size	20- 30 mm	20- 30 mm	20- 35 mm	20- 35 mm
Outlet conveyor	2.5+10m	3+10m	10m	10m
Outlet conveyor motor	3kw	3+4kw	5.5kw	5.5kw
Hydraulic pump motor	1.5kw	1.5kw	3kw	4kw
Dimension	2000x1950x1300	2500x2200x1600	3670x2448x2050	3850x2550x2100
Weight	4.5 ton	7.2 ton	12 ton	14.5 ton
Install size	20x3x3.5m	20x4x3.5m	25x5x4m	25x5x4m

2. Drum wood chipper introduction

BX series drum wood chipper chips wood logs, tree branches, waste wood, wood residues, woodcuts, and bamboo into 2-3 cm wood chips or bamboo chips. This chipper also shreds EFB into 10-50 mm EFB fiber.

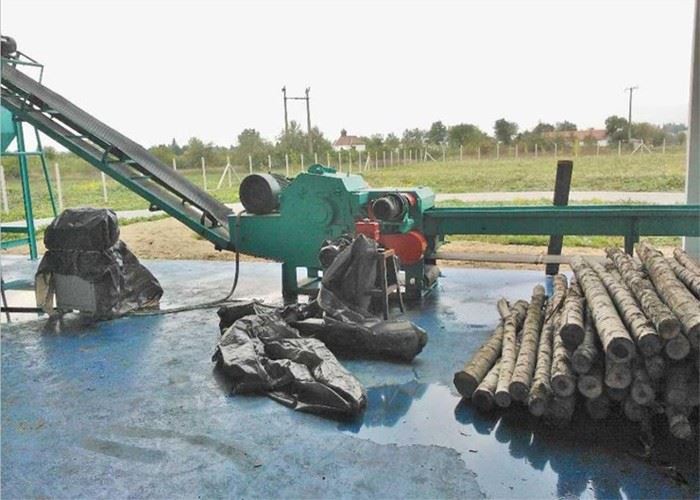

This machine is commonly used in manufacturing, wood pellet production, and paper production. A drum wood chipper consists of a feeding conveyor, feeding roller, knife roller, blades, screen, motor, frame, hydraulic system, and discharge conveyor.

1. The feeding conveyor helps make wood feeding easier. Operators can load it manually or with a timber grab loader, placing wood logs, waste wood, bamboo, and tree branches on the conveyor. The conveyor is installed horizontally on the ground and can send wood to the wood chipper's feeding inlet

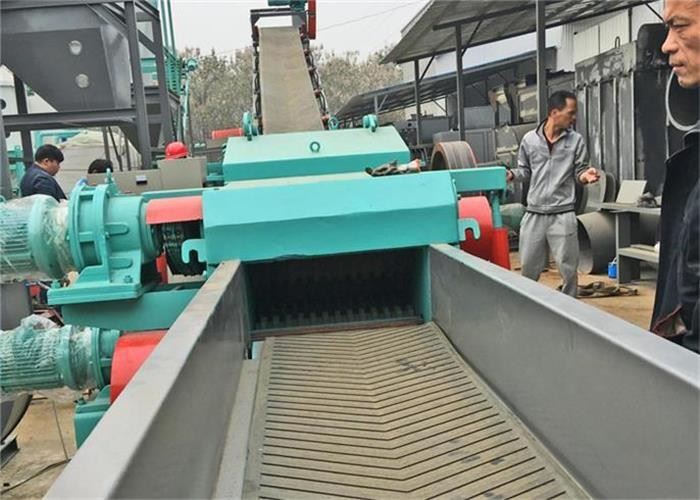

2. The feeding rollers are installed at the feeding inlet; it has two layers, and the lower layer is stable. In contrast, the upper layer moves via the hydraulic system to adjust feeding capacity. When wood comes from the conveyor, the roller teeth bite the wood; as the feeding rollers rotate, the wood feeds into the drum chipper, then to the knife roller.

3. The knife roller is in the center of the wood chipper. It rotates together with the main motor. The knife roller has blades, and the chipper frame has a stationary blade. When wood reaches the knife rollers, the rotary blades rotate; when a rotary blade meets the stationary blade, it cuts the wood into chips.

4. The hydraulic oil pump is equipped with the feeding rollers; thus, it can raise the feeding chute upper plate a bit to let bigger-diameter wood enter the wood chipper more easily, and then the chute upper plate falls slowly to protect the feeding rollers.

5. The wood chips will fall to the screen, and through the holes, the chips go to the discharge conveyor and are sent away.

Our drum wood chipper has a base frame, so you don't need to build a foundation during installation.

The drum wood chipper handles various raw materials, including wood logs, wood chips, tree branches, waste wood, wood residues, wood material, bamboo, EFB, and building templates.

The drum wood chipper is equipped with an electric panel; from this panel, you can start and stop the main motor, feeding roller motor, feeding conveyor motor, discharge conveyor motor, and hydraulic system motor.

We offer different drum wood chipper models to meet different user requirements. For each model, the maximum wood diameter it can handle depends on the client's needs; when choosing a drum wood chipper, pay attention to the maximum wood diameter and select a suitable model.

Our service

1. Guarantee/warranty period: 12 months (except wearing parts on the pellet mill). During the guarantee period, if the machine breaks down due to non-artificial factors or buyer operation mistakes, Zhengzhou Fanda Machinery Co., Ltd will provide replacement parts at its own cost and help the buyer repair the machine until it can run normally. After the guarantee period, we provide replacement parts at the buyer's cost.

2. After-sales service: We provide an operation manual for our machine in English, and we have lifetime after-sales service for our machine. If buyers need any service while using our machine, they can get online support easily and quickly.

3. Shipping the above-listed machines takes one 20'' container.

4. The delivery period of the above machines is 15-20 working days after receiving your down payment.

5. We provide different colors for painting the machines; we can paint them according to your color requirements.
