Laundry Soap Making Machine

Zhengzhou Fanda Machinery Co., Ltd. is one of the leading manufacturers and suppliers of laundry soap making machine in China. With abundant experience, we warmly welcome you to buy cheap laundry soap making machine for sale here from our factory. For price consultation, contact us.

Laundry Soap Making Machine

FANDA brand laundry soap making machine is complete laundry soap finishing line which can make laundry soaps from soap noodles as raw material. The production line consists mixing, milling, soap bar exteuding, cutting and necessary conveyors, electric controlling.

From the mixing process at beginning, worker put soap noodles, caustic soda and other ingrediets into the mixer to mixing these raw materials together uniformly, then conveyor send the mixed materials to three roller mill, use the three roller mill to milling them to schistose, after that conveyor send the milled raw material to vacuum plodder, use the plodder machine extruding soap raw materials to soap bar, finally use the cutting machine press logo on the soap bar and cut the soap bar to each laundry soaps, there is conveyor after cutting machine for workers to collect the finished laundry soaps. There is electric panel to control all the machines in the poduction line.

Advantage for Laundry Soap Making Machine

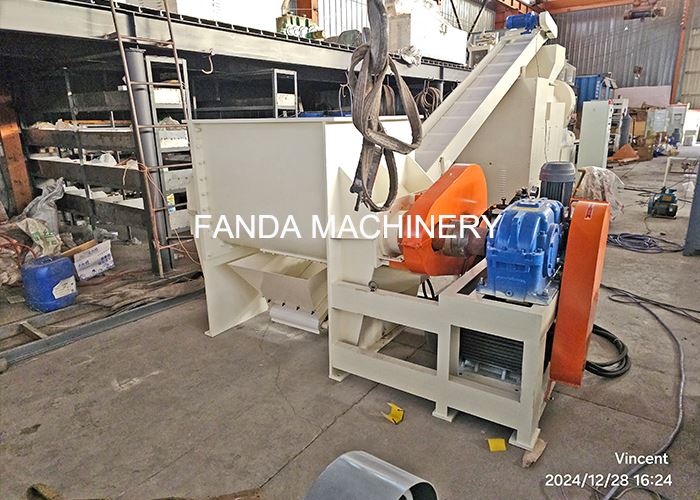

1. Mixing process applied ribbon mixer, which is easy loading raw materials and mixing raw materials uniformly in short time with high performance

2. Milling process adopt three roller mill, circulate water inside the rollers so that to improve the pressure for the rollers thus to improve milling effect

3. Soap bar extruding process use duplex vacuum plodder, which work with vacuum mpum. Two layers auger extruding the raw materials with high efficiency and proformance. Vacuum extruding chamber which can remove the impurities and improve quality of soap bar. Applied hot extruding technology for lower auger, there is heating coil equipped in front of plodder mold. Plodder machine applied water cooling technology, circulate water inside the interlayer of extruding augers so that to cooling down the machine and improve machine stability

4. Cutting process can press logo on the soap bar and cut soap bar to laundry soaps automatically.

The plodder mold decide shape, width and height of finished laundry soaps, cutting machine mold decide length and logo on the finished laundry soaps, we can design and produce mold according to buyer requirement on soap shape, size and logo

5. Conveyor belt is food grade PVC belt

6. Electrical elements are famous brand in China

7. We can make machines use carbon steel or make the machine touch raw material and soap made of stainless steel SS304

8. Production line is easy to installation, operation and maintenance

9. We have different capacity laundry soap production line for buyer choose, such as 100kg/h, 100-300kg/h, 300-500kg/h, 800-1000kg/h, 1500-2000kg/h

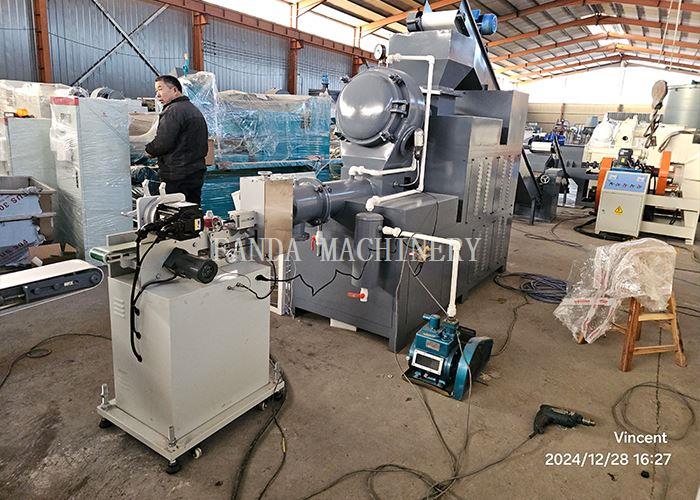

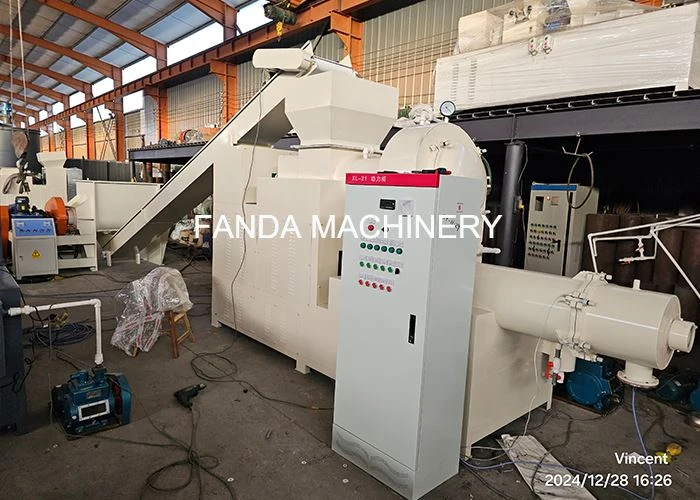

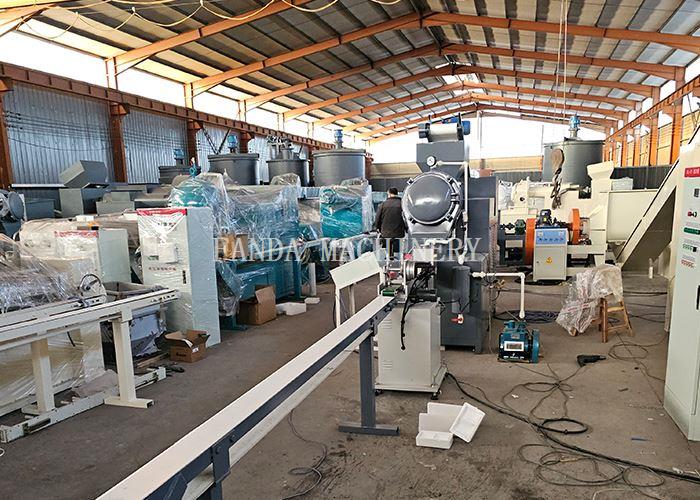

Installed Picture for Laundry Soap Making Machine

Sample for laundry soaps from our laundry soap making machine
