1000kg/h Laundry Soap bars production Line
Make high-quality laundry soap with high working efficiency Easy to install, operate, and maintain Uses soap noodles as raw material Capacity 800-1000kg/h
Description
Zhengzhou Fanda Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 1000kg/h Laundry Soap bars production Line in China. With abundant experience, we warmly welcome you to buy cheap 1000kg/h Laundry Soap bars production Line for sale here from our factory. For price consultation, contact us.
800-1000kg/h laundry soap production line
Our soap production line can produce a wide range of soaps. The soap body has a dense structure, resists drying out, and maintains stable quality. It can produce low-, medium-, and high-end laundry soaps with a fatty acid content of 50%-60%. The size, weight,t and printing pattern of the laundry soap can be customized according to customer requirements.
Flowchart of 800-1000kg/h laundry soap bar making production line price
1. Mixer: Mixing soap noodles with ingredients like Caustic soda, sodium silicate essence,ce and Pigment
Three-roller mill: Milling and refining mixed raw materials and pressing them into lamina form / schistose, to improve the fineness and evenness, thus making the finished soap bar tighter and smoother
3. Duplex vacuum plodder: extruding raw materialinto ao soap bar under vacuum conditions
4. Vacuum pump: installed on the duplex vacuum plodder, exhausting water and impurities in the extruding chamber and creating a vacuum circumstance

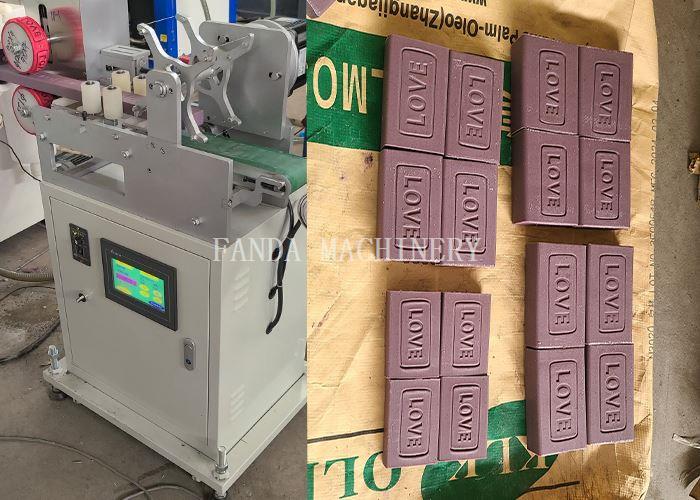

5. Laundry soap cutting machine: presses the logo on the soap bar and cuts the soap bar into laundry soap
6. Conveyor:
6.1 PVC belt conveyor sends mixed material fromthe mixer to the three-roller mill
6.2 PVC belt conveyor sends milled schistose from the three-roller mill to the duplex vacuum plodder
6.3 Flat belt conveyor to collect finished laundry soap;
7. Electric panel: Controls all the machines in the production line start/sop and protects the motors;
Mixer and conveyor 6.1 have an independent electrical panel, so that it is easier to control raw material feeding;
8. Packing machine: Packs finished laundry soap into bags and prints the date on the bag.
Working conditions of 1000kg/h laundry soap line
1. Water: 1 cubic meter circulating water (no consumption)
2. Electricity: 57.5 kWh
The standard voltage is 380V, 50Hz, we can customize the motor to your voltage requirements.
3. Installation area: length 25 meters, width 8 meters, height 3.5 meters.
This area includes storage for soap noodles, finished laundry soap, and the workers' operation area.
4. Labor: need 5-6 people to operate the production line.
Two people feed the soap noodles to the mixer and operate the mixer; since the mixer is batch working, people are needed to control the discharge of the mixed soap noodles;
Two people work at the packing machine to pack the soap;
One person takes care of the whole line while it is working;
One or two people move the soap noodles and store the final laundry soap.
Detailed machine list of 100kg/h laundry soap line
|
No. |
Machine name & Specification |
Model |
Quantity |
Power |
|
1 |
Mixer Capacity: 300Kg/batch Mixing soap noodles, pigment/perfume, and other ingredients evenly Weight: 870Kg Dimension: 2300x1200x1850mm |
WJ1000 |
1 |
11Kw |
|
2 |
Three-roll mill Capacity: 1000kg/h To grind raw material and prepare for the next step Weight: 1735Kg Dimension1700x1200x1300 mm0m |
SG260 |
1 |
11Kw |
|
3 |
Duplex vacuum plodder Capacity: 1000kg/h To make laundry soap Weight: 2035Kg Dimension: 3850x1000x2290mm |
ST245 |
1 |
11+15Kw |
| 4 |
Vacuum pump Capacity: 8Liter/second Make the plodder extruding chamber vacuum Weight: 65Kg Dimension: 600x500x350mm |
B8 | 1 | 1.1Kw |
|
5 |
Laundry soap cutting machine To cut the soap bar into laundry soap, press the logo on the soap bar Cutting length: 60-1000mm adjustable Weight: 125Kg Dimension: 820x500x1080mm |
FZ40 |
1 |
1.5Kw |
|
5.1 |
Laundry soap mold Design according to buyer requirements for soap shape, size, weight, and logo |
FZ40 |
1 |
/ |
|
6 |
6.1 Conveyor sends raw material from mixer to three-roller mill, dimensions 3000x600x600mm 6.2 Conveyor sends raw material from the three-roller mill to the plodder, dimensions 4000x600x600mm 6.3 Flat conveyor collects soap after the cutting machine, dimensions 4000x600x850mm PVC conveyor belt which is food grade, conveyor shell made of carbon steel Q235 Total weight 420Kg |
FDP50 |
1 |
1.5*3=4.5Kw |
|
7 |
Electric panel To control all of the machines Electrical elements: CHNT brand |
XL21 |
1 |
/ |
|
8 |
Packing machine Wrap laundry soap into bags Packing material: OPP/CPP film, OPP and PE composite film, PET and PE composite film, etc ., one-layeror multi-layer composite film roll Control system: Triple servo system Machine setting from touch screen Language: English Packing speed: 60-150 bag/minute Packing film max width: 350mm Packing film roll max diameter: 320mm Pack soap length: Infinite length, servo motor adjustable Packing soap width: 20- 80 mm Pack soap max height: 60mm Voltage: 220V, 50Hz, Single phase Overall dimension: 3990x800x1460mm Weight: 500Kg |
PT350 |
1 |
2.8 |
