Hot Air Drying Machine

Introduction to the hot air drying machine:

CT-C series hot air circulating drying oven features a low-noise, high-temperature axial-flow fan and an automatic temperature control system.

The whole circulation system is fully enclosed to increase the heat efficiency of the drying oven from 3-7%of the traditional drying oven to 35-45% of the present one.

Heat efficiency can reach up to 50%.

Working principle :

CT-C series hot air circulation tray dryer is the most often used convection chamber dryer. Inside the drying chamber, trays loaded with wet material are stacked on trolleys.

During drying, the circulation fan brings fresh air into the drying chamber, and the steam radiator or electrical heating tubes at the top provide the required temperature. An air distributor ensures hot air flows evenly through each tray layer for heat transfer and carries away evaporated moisture. Most of the hot air returns to the circulation fan for the next drying cycle, and only a small amount is exhausted to save energy. When finished, open the drying machine door and pull out the trolleys to unload the dried product.

CT-C series hot air circulation tray dryer can be used for drying or heating almost all kinds of wet materials, such as many kinds of fruits, many kinds of vegetables, meat, fish, pet food, slurry, paste, cake, powder, granules, or sliced materials in almost all kinds of industries.

Features ofa  hot air drying machine:

1. The temperatures to be used: steam heating 50-140°C, Max.150°C.

2. For the heating source, there are many kinds: steam, electrical, far infrared, or steam and electrical to be chosen.

3. The moisture content while using electrical heating and temperature: 50-350°C.

4. There are automatic control systems and computer control systems for users' selection.

5. Commonly used steam pressure: 0.02-0.08MPa a(0.2-8kg/cm2)

6. If using electrical heating and being type one, the calculation is 15kw, and the practical use is 5-8kw/h.

7. The special requirements should be indicated at the time of order.

8 . The price for the non-standard oven should be consulted.

9. The use temperatures of more than 140°C and less than 60°C should be indicated at the time of order. Parameters of hot air dryer:

Model	CT-C-IA	CT-C-I	CT-C-II	CT-C-Ⅲ	CT-C-IV
The capacity of each batch	60kg	120kg	240kg	360kg	480kg
Power of Fan	0.45kw	0.45kw	0.9kw	1.35kw	1.8kw
Consumption of steam	10kg/h	18kg/h	36kg/h	54kg/h	72kg/h
Total Power	12kw/h	15kw/h	30kw/h	45kw/h	60kw/h
Thermal area	10m2	20m2	40m2	80m2	100m2
Air volume	3400m3/h	3450m3/h	6900m3/h	10350m3/h	13800m3/h
Temperature used	±2°C	±2°C	±2°C	±2°C	±2°C
Quantity of trays	24	48	96	144	192
Overall Dimension(mm)	1400*1200*2300	2300*1200*2300	2300*2200*2300	2300*3220*2300	4460x2200x2290
Trolley	1	2	4	6	8

Pictures of hot air dryer:

CT-C-I for 120kg/batch:

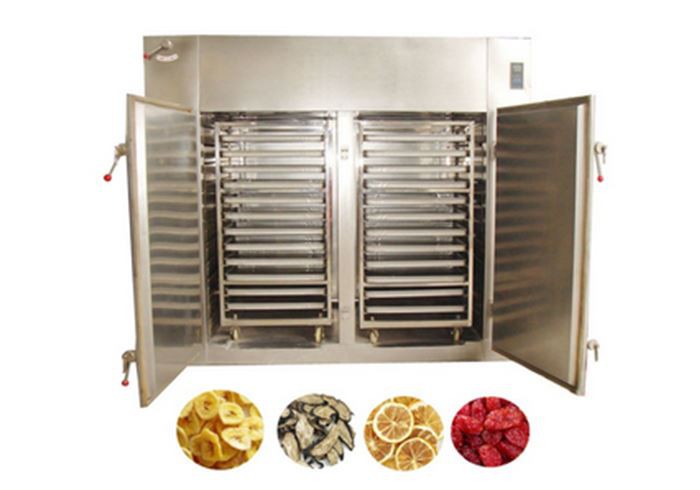

CT-C-II for 240kg/batch:

CT-C-III for 360kg/batch:

CT-C-IV for 480kg/batch:

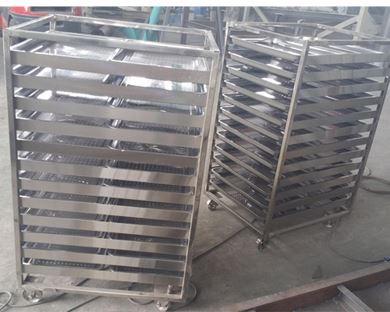

Trays of hot air dryeStandardard trays with holes, mesh trays, electric panel trolleys

Application of hot air dryer:
