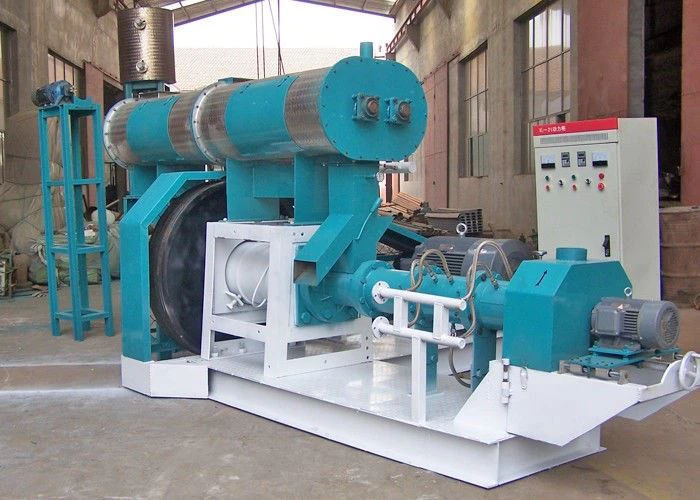

Floating Fish Feed Extruder Machine

Zhengzhou Fanda Machinery Co., Ltd. is one of the leading manufacturers and suppliers of floating fish feed extruder machine in China. With abundant experience, we warmly welcome you to buy cheap floating fish feed extruder machine for sale here from our factory. For price consultation, contact us.



 The floating fish feed extruder machine, also called a floating fish feed pellet mill, is mainly utilized for making floating fish feed pellets or sinking, slow-sinking fish feed for catfish, aquarium fish, shrimp, tilapia, red or black porgy, rainbow trout, and carp; it can also be a pet food extruder for making pet food for dogs and cats. You can also use it to make extruded feather meal as a protein additive to replace fish meal.

The wet-type floating fish feed extruder machine can produce various floating or sinking aquatic feeds such as fish, eels, shrimps, crabs, loaches, bullfrogs, etc. It can also produce a variety of pet feeds for cats and dogs. The particle size can be adjusted from 0-- 15 mm to different sizes. fish. Our fish feed extruder has high output and good product quality. It is the first choice for large and medium-sized feed processing plants and aquaculture farms.

The fish feed extruder is equipped with a boiler that continuously provides hot steam.

The structure of the floating fish feed extruder:

1. Feeder: to ensure uniform and stable feeding and adjust the feeding amount according to the rated current value of the extrusion motor. Generally, electromagnetic speed-regulating motors or frequency converters control the speed and adjust the feeding amount. A dragline usually feeds from the hopper outlet to the extrusion section.

2. Extrusion chamber: It is composed of the screw, barrel, template, clamp, etc. The screw and barrel are combined in sections, so you can adjust the degree of compression to match the type and requirements of the extruded feed, changing the degree of expansion.

 Technical data of Wet type floating fish feed extruder machine:

Model	Capacity	Main motor	Feed motor	Conditioner motor	Cutter motor	Dimensions(mm)	Weight(Kg)
DSP60	180-200kg/h	15Kw	0.4Kw	0.75Kw	0.4Kw	1780x1250x1300	480
DSP70	250-300kg/h	18.5Kw	0.6Kw	1.1Kw	0.6Kw	2460x1550x1740	940
DSP80	350-400kg/h	22Kw	1.1Kw	1.5Kw	0.75Kw	2650x1450x1750	1000
DSP90	500-600kg/h	37Kw	1.1Kw	2.2Kw	1.1Kw	2600x2100x1900	2000
DSP120	700-800kg/h	55Kw	1.1Kw	2.2Kw	1.5Kw	3200x1950x1900	2200
DSP135	1000-1200kg/h	75Kw	1.5Kw	3Kw	2.2Kw	3750x1980x1800	2500
DSP160	1800-2000kg/h	90Kw	2.2Kw	4Kw	2.2Kw	6600x2800x2330	3800
DSP200	3000-4000kg/h	132Kw	2.2Kw	5.5Kw	3Kw	6600x2900x2350	4500

What is the difference between a Dry-Type and Wet-Type Fish Feed Extruder?

Fish feed pellet extruders are divided into two types: dry-type and wet-type. The differences and features of the dry-type extruder and wet-type extruder are:
1. The dry-type fish feed extruder does not need a steam boiler, while the wet type is equipped with a conditioner and needs to be equipped with a steam boiler. So the dry-type fish feed pellet extruder is cheaper and easier to use and operate.
2. The feed pellets made by the wet-type fish feed pellet machine are smoother and of better quality because the material is ripened and mixed enough in the conditioner compared with the dry-type extruder.
3. The capacity of the wet-type fish feed pellet machine is higher than that of the dry-type feed pellet machine, so usually, the wet-type fish feed machine is suitable for large feed pellet factories. In contrast, the dry-type fish feed pellet machine is better and more economical for small and medium-sized users of factories.

What is the difference between sink fish feed and floating fish feed?



Fish feed can be divided into floating or sinking pellets. Some fish prefer to float; others prefer to sink. Both types of particles have their pros and cons. However, compared with sinking particles, the use of floating particles has more advantages:

1. Reduce waste.



The sinking particles left at the bottom of the fish pond are usually lost and wasted. However, floating feed pellets can maintain their shape even after several hours in the water, so uneaten feed remains intact.

2. Reduce disease. Sinking particles left at the bottom of the tank will eventually rot, which may promote bacterial growth and spread harmful fish diseases.

3. Convenient to observe. Another reason for keeping particles floating is that farmers can directly observe the fish's feeding intensity and adjust the feeding amount accordingly. Determining whether the feeding rate is too low or too high is important to maximize fish growth and feed utilization efficiency. However, sinking particles will fall to the bottom of the fish tank, and the fish may not even find them.

The advantages of the wet-type floating fish feed extruder :

1. The screw sleeve adopts a jacket structure, which can inject hot steam or cooling water to control the temperature of the extruder effectively.

2. The modulator can fully gelatinize starch through the combination of hot steam and materials.

3. We can use stainless steel and carbon steel to make modulators. Carbon steel conditioners are cheaper, while stainless steel conditioners are better suited for feed production.

Service

Pre-sale service

1. Testing with customer engineers to learn how to use the packing machine.

2. Testing the packing machines with production samples and film materials.

3. Test machine videos will be sent to customers



After-sales service

1. Manual book.

2. Videos of installation, adjustment, setup, and maintenance.

3. Telecommunications or face-to-face online communication.

4. Overseas engineering services.

5. The machine has a one-year warranty period, and the spare parts have a two-year warranty period. During the warranty period, if it is not damaged due to human error, we will replace the accessories free of charge.



FAQ:

1. Q: What is the after-sales service?

 A: Manual installation book, video support, online support, overseas engineers.



2. Q: What is the payment term?

A: T/T by bank directly, or by Alibaba trade assurance service, or by Western Union, or by L/C, or by Cash.



3. Q: How can we make sure of the quality after making an order?

A: Before delivery, we will send you pictures and videos for your checking, and you can also arrange quality checking by yourself or Inspection by your designated third-party agency



4. Q: Can you do OEM?

A: We accept all OEM orders; contact us and give us your design. We will offer you a reasonable price and make samples for you ASAP.



5. Q: How long is your production lead time?

A: It depends on the product and order quantity. Normally, it takes us 7-15 days for an order with the MOQ quantity.
