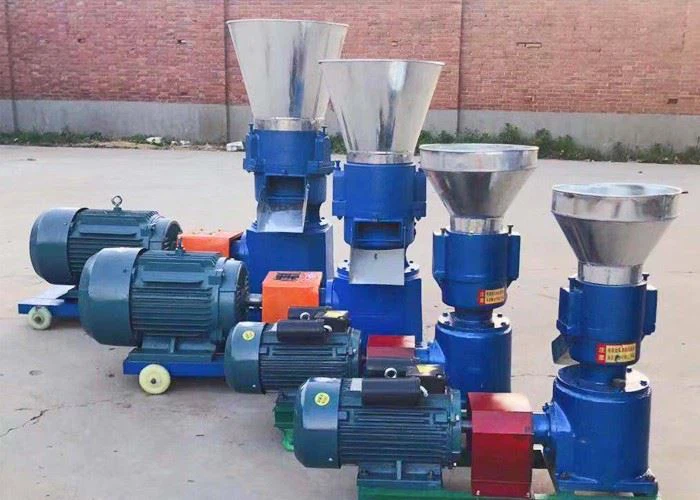

Small Poultry Feed Mill Machinery

KL120 capacity 50-100kg/h, KL150 capacity 150-200kg/h, KL200 capacity 200-300kg/h, KL230 capacity 300-400kg/h, KL260 capacity 400-600kg/h, KL300 capacity 600-800kg/h, KL400 capacity 900-1200kg/h

Send Inquiry

Download

Description

Zhengzhou Fanda Machinery Co., Ltd. is one of the leading manufacturers and suppliers of small poultry feed mill machinery in China. With abundant experience, we warmly welcome you to buy cheap small poultry feed mill machinery for sale here from our factory. For price consultation, contact us.

Small Poultry Feed Mill Machinery

1. What is small poultry feed mill machinery?

A small poultry feed mill machine is a flat-die pellet mill designed to make poultry feed pellets, animal feed pellets, livestock feed pellets, and bird feed pellets.

2. What is the raw material for poultry feed mill machinery?

Usually, people use raw materials like corn, wheat, soybean, rice, oats, maize, grain or cereal, and rice bran, clover, alfalfa, grass, straw, and other raw materials to make feed pellets.s

Some people add powdered or liquid additives like vitamins, fish meal, soybean meal, bone meal, etc to the raw material to make feed pellets.

The quantity of each kind of raw material is decided by the formula of the feed pellets you want to make

3. What size feed pellets can your machine make?

Our small poultry feed mill machinery can make 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 7mm, and 8mm diameter feed pellets.

The holes on the flat die/matrix decide the diameter of the finished feed pellets. Changing the flat die/matrix lets you make different diameters on one machine.

The feed pellet length is 15-40 mm, adjustable on the machine.

4. Do we need a grinder or crusher to crush raw materials before using your machine to make pellets?

If your raw material is only grain or cereals, you can use the pellet mill to make pellets directly without grinding them into powder.

If your raw material contains clover, grass, straw, or other materials, you have to grind it into powder before making pellets.s

If you make small-diameter pellets like 2 mm, 0.5 mm, and 3 mm, it is better to grind the raw material into powder before making pellets. ets

If you want to mix raw material with additives and want to make high-quality feed pellets, it is better to grind the raw material before making pellets .lets

5. What is the capacity of your machines?

Model	Motor	Roller quantity	Capacity	Dimension	Weight
KL120	4kw	2	50-100kg/h	750x320x700mm	78kg
KL150	4kw	2	100-200kg/h	780x330x770mm	86kg
KL200	7.5kw	2	200-300kg/h	1000x430x960mm	175kg
KL230	11kw	2	300-400kg/h	1180x450x1120mm	240kg
KL260	18.5kw	2	400-600kg/h	1260x480x1150mm	310kg
KL300	22kw	2	600-800kg/h	1380x550x1250mm	360kg
KL400	30kw	3	900-1200kg/h	1620x780x1500mm	580kg

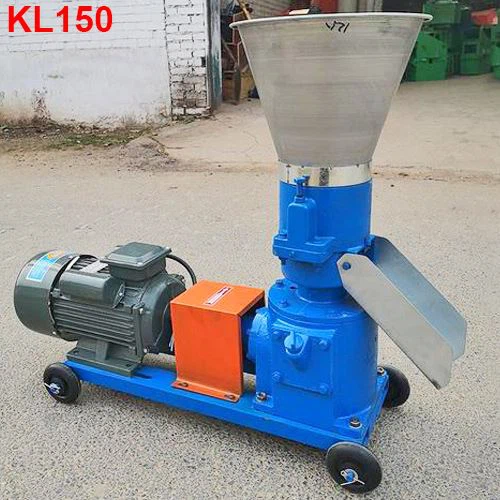

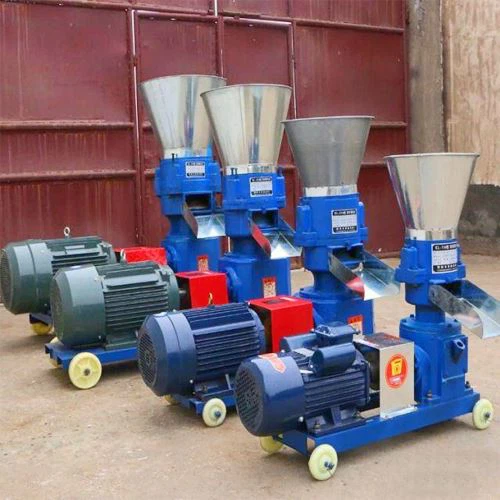

6. Can I see pictures of each model?

Poultry feed pellet mill Poultry feed machinery Small feed mill machinery

Small poltry feed mill Small feed machinery Feed mill machinery

Poultry feed machinery small feed machine feed mill machinery

7. What is the electrical requirement for your poultry feed mill machinery? The

KL120 and KL150 models are equipped with single-phase electricity, so you can use your home electricity. We can make the voltage 110V, 220V, 230V, 50Hz, or 60Hz. We can provide a motor that matches your single-phase electricity standard.

KL200, KL230, KL260, KL300, and KL400 motors are three-phase; you need an industrial power supply or three-phase electricity. We can adjust the motor voltage according to your electricity supply.

8. What are the advantages of your small poultry feed mill machinery?

- Small machine, easy to operate and maintain, suitable for home use or farm use to make feed pellets, and suitable for people who make feed pellets on a small scale and sell the feed pellets

- This kind of flat die feed pellet mill is gearbox type; the motor connects to the pellet mill via the gearbox, thus ensuring the compression pressure and machine quality

- Flat die and roller are easy to change

- Can make different kinds of feed pellets from one machine; can make different size pellets; only need to change the flat die/matrix; no need to grind the grains; the machine can press them into feed pellets directly

- Machine equipped with wheels, which makes it easy to move

- We use a pure copper rotor motor, which can ensure the quality and long lifetime of the machine

- We can change the electric motor to a diesel engine if there is an electricity shortage in your area or the electricity supply is not convenient.

9. What is the guarantee for your machine?

We have a one-year guarantee period for our small poultry feed mill machinery. If the machine breaks down due to no human error in operation, we provide a replacement at our own cost.

We provide lifetime after-sales service for our machines. After delivery, we provide an English operation manual to guide you through installation, commissioning, and maintenance. We provide 24-hour24-hour online service; you can contact us anytime you need help or service.

10. What are the spare parts for the poultry feed mill machinery?

The spare parts for this machine are the flat die/matrix and roller. You can buy spare parts from us easily while you use the machine.

11. If we need a grinder/crusher or mixer, can you supply it?

Yes, we have a grinder and crusher to grind the raw material into powders. WWe cansupply a mixer to mix the raw materials uniformly

12. Below is a picture showing the feed pellets produced from our poultry feed mill machinery.

Poultry feed machiner Feed mill machinery samll feed mill machinery
