Soap Manufacturing Machine
if you buy soap manufacturing machines, please us, we have laundry soap-making machines and toilet soap-making machines with high quality and good prices.
Description
soap manufacturing machine
The soap production line is a whole line to make laundry soap from neat soap (soap noodles), the process includes the mixing step, milling step, vacuum pressing step, cutting step, and packing step. Using the 500kg/h laundry soap production line can make high-grade laundry soap with 35-70% fatty acid, applied double vacuum pressing technology, the final soap is compact and not easy to crack.
Flowchart of soap production line
1. Mixer 2. Three roll mill 3. Conveyor 4. Duplex vacuum plodder 5. Digital cutting machine 6. Conveyor 7. Packing machine
The working conditions of the soap production line
1. Water: 1 cube meter circulating water (no consumption)
2. Electricity: 39Kw.h
The standard voltage is 380V, 50Hz, we can customize the motor to your required voltage
3. Installation area: length 22 meters, width 8 meters, height 3.5 meters.
This area includes storage soap noodles, final laundry soap, and workers' operation place.
4. Labor: need 6-7 people to operate the production line
Two people feed the soap noodles to the mixer and operate the mixer, since the mixer is batch working, need people to control the discharge of the mixed soap noodles
Two people work at the packing machine place to pack the soap
One person takes off the whole line while it is working
One or two people move the soap noodles and store the final laundry soap.
Detailed machine list of soap production line
|
No. |
Machine name & Specification |
Model |
Quantity |
Power |
Picture |
|
1 |
Soap Mixer Mixing soap noodles and pigment, perfume, or another ingredient together evenly Weight: 420Kg Dimension: 1800x1000x1100mm |
WJ700 |
1 |
5.5Kw |
|
|
2 |
Conveyor To transfer the mixed material to three roll grinding machine Weight: 160Kg Dimension: 4300x550x650mm |
FDP50 |
1 |
1.1Kw |
|
|
3 |

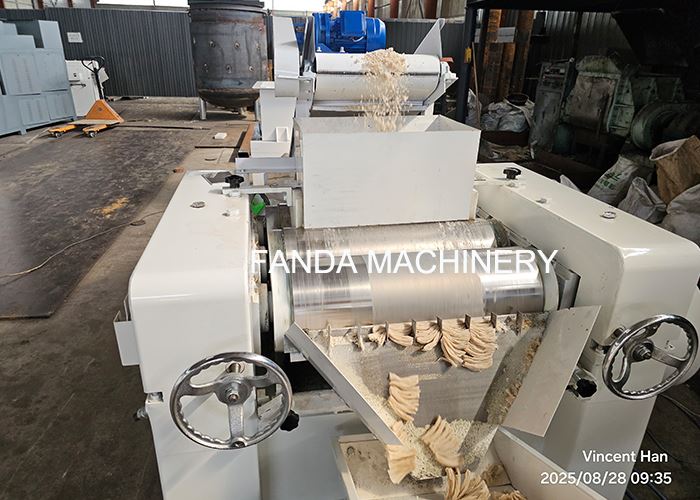

Three roll mill (we also have simplex refiner for optional) To grind raw material and prepare for the next step Weight: 2692Kg Dimension: 1300*1650*1300m |
SG260 |
1 |
11cKw |
|
|
4 |
Conveyor To transfer the ground material to a vacuum extraction machine Weight: 160Kg Dimension: 4300x550x650mm |
FDP50 |
1 |
1.1Kw |
|
|
5 |
Duplex vacuum plodder To make laundry soap Weight: 2150Kg Dimension: 3900x1000x2150mm |
ST245 |
1 |
7.5+15Kw |
|
|
6 |
soap cutting machine Cut the soap strip into pieces Cutting length: 60-400mm adjustable Weight: 58Kg Dimension: 800x360x800mm |
FZ40 |
1 |
/ |
|
|
7 |
Vacuum pump Vacuum for the vacuum extraction machine Vacuum capacity: 8 Liters/second Dimension: 510x310x390mm |
B8 |
1 |
1.5Kw |
|
|
8 |
Conveyor To transfer the final soap to the packing machine Weight: 165Kg Dimension: 4440x550x850m |
FDP50 |
1 |
1.1Kw |
|
|
9 |
Soap packing machine To pack the soap Dimension: 4600x1100x1900mm |
PT350 |
1 |
2.8Kw |
|
|
10 |
Electric panel To control all of the machines in the production line |
XL21 |
1 |
/ |
Our soap machines have been sold to many countries, including Algeria, Nigeria, Ethiopia, Congo, Kenya, Afghanistan, Sudan, etc.
laundry soap production line:
1. 300kg /h laundry soap production line
2. 500kg /h laundry soap production line
3. 1000kg /h laundry soap production line
4. 2000kg /h laundry soap production line
Toilet soap production line:
1. 200kg /h toilet soap production line
2. 500kg /h toilet soap production line
3. 1000kg /h toilet soap production line
4. 2000kg/h toilet soap production line
Welcome to contact us for the quotation!
