Automatic Soap Making Machine

automatic soap making machine

hot sale laundry soap and toilet soap making machines are designed to make laundry soap and toilet soap from soap noodles. It can make soap with different fatty acid content.

We supply our clients a full range of technical assistance and make sure every client, no matter new joined or experience, can build & operate their own soap plant well. We will see to each client to get high profit by our machines. (finishing line soap making machine)

1, We help you to figure out the most suitable and competitive soap product lines for your aimed market.

2, We help you to make the drawing of the workshop building and equipment layout.

3, We supply you the good quality and stable performance soap machines, spare parts and accessories, that is the turn-key project.

4, We send our professional engineers to your plant for machine installation, staff training, etc.

5, We offer consistent technique support during the whole lifespan of our machines.

The small  automatic laundry soap and toilet soap making machines are 100-300kg/h;

The middle scale automatic laundry soap and toilet soap production line  is 300-500kg/h and 500-1000kg/h;

The large scale automatic soap making machines output is 1000-2000kg/h.

Introduction of automatic soap making machines:

1. Soap mixer

Feeding the raw material soap noodles into the soap mixer, mixing the soap noodles, sodium silicate, perfume additive, talc powder well.

2. Conveyor

Delivering the material into the refiner machine

3. Soap refiner

Refining the material more blended and soft through the screw extruder working, as a result, it can improve the smoothness and tighteners of the final soap.

4. Three roller mill

Making soap flakes or soap thin sheets, it can make the soap structure tight and improve soap's density and quality.

5. Conveyor

Delivery the soap flakes into the soap plodder.

6. Double screw vacuum plodder

Making long soap strips, the double-screw vacuum plodder can make the soap compact and looking bright, and not easy to crack.

7. Vacuum pump

Work for soap vacuum plodder, to exhaust air and water out of soap noodles, to prevent soap from cracking.

8. Toilet soap cutting and stamping machine/soap moulding machine

It can mould different sizes and different logos on soap bars you need.

9. Soap cooling machine

Keeping the mould cool, and making the moulding machine work well.

10. Conveyor

Delivering the finished soap bars.

11. Electric control cabinet

Control all of the machines start and stop, making all the lines operate easily.

How about the Engineer and technique support?

1. We would send engineers overseas for machine installation, staff training and production test running, till your own staff can operate the machine well and produce out qualified soaps.

2. During the lifespan of our machines, we should give consistent technique support and service, and we are a pleasure to be in service of you. (24hours online)

How to operate the automatic soap making machines?

Firstly, Inspection before starting

1. Check whether there is some foreign matter in the feeding and unloading part in the plodder. Make sure it is clean.

2. Check all the lines is connected with the power.

3. Open the cooling water valve on the up and down screw in the plodder.

4. Open the air inlet valve on the vacuum pump.

5. Turn on the soap heating switch, preheat the outlet of the plodder, temperature control at 45 ℃ ~ 55 ℃.

Second, operate the machines

1. When the up and down screws are full of material, turn on the vacuum pump, turn off the vacuum chamber vent valve, the vacuum control at -0.06Mpa.

2. Make sure there is enough material for every machine.

3. Make sure the speed match the soap cutting machine.

4. Note that the cooling water temperature can not be over 20 ℃.

Up and down screw current can not exceed the allowable range.

Third, turn off the machines

1. Make sure the material is finished in every machine.

2. Turn on the vacuum pump venting valve, and turn off the vacuum pump. (Note: Be sure to turn on the vent valve to make sure the vacuum is at 0.)

3. Cleaning the screw of plodder after two hours when the machine cools down.

4. Turn off the power, turn off the cooling water valve, clean up the surrounding environment.

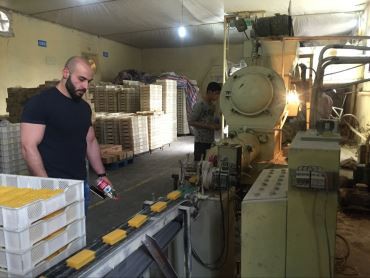

Automatic laundry soap and Toilet soap making machines pictures:
