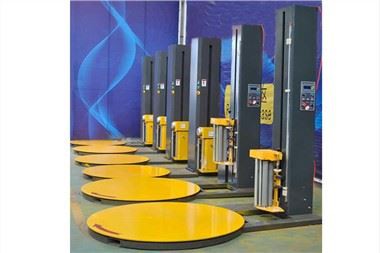

Pallet Wrapper

Zhengzhou Fanda Machinery Co., Ltd. is one of the leading manufacturers and suppliers of pallet wrapper in China. With abundant experience, we warmly welcome you to buy cheap pallet wrapper for sale here from our factory. For price consultation, contact us.



   Pallet Wrapper machines are widely used for glass products, hardware tools, electrical products, paper, ceramics, chemicals, food, beverages, building materials, and more. They improve logistics efficiency, reduce goods loss during transport, provide waterproofing and dustproofing, lower product costs, and improve packaging quality.

Features of an automatic pallet wrapper machine:

1. Automatic Cut Film.

After wrapping the pallet, our pallet stretch wrapper automatically cuts the film. Workers don't need to cut the film by hand, which is very helpful.

2. Multi-layer Function

This function lets you set different wrapping circles and wrapping force at any height you want, and we can set up to 9 layers per pallet. The normal machine applies the same wrapping force from bottom to top and cannot stop during wrapping to achieve reinforced wrapping. Such a function completely avoids these problems.

3. Saving Film Consumption

With a pre-stretch roller, up to a 380% pre-stretch rate.

Maximize the value of each meter of stretch film.

Standard constant-release film.

Fixed-point wrapping and quantitative film use.

4. Advanced Safety Technology

Safety device under the film carriage to protect the operator's foot or head.

A transparent board makes it easy to find problems without opening the door.

Up-and-down belt deviation and damage alarms alert you in time, preventing the carriage from dropping.

5. Better Spare Parts

SIEMENS PLC

SICK proximity switch

AUTONICS photoelectric switch

WEIDMULLER terminal block

X-LINE Inverter

OMRON 24DC supply

6. Intelligent operation Guiding system

LED indicator. Ready for work: Blue; Working: Green; Alarm: Red.

The touch screen guides you on how to operate the machine. If an alarm appears, the touch screen shows you how to solve the problem.

Parameters of pallet wrapper:

Product Name	Automatic Pallet Wrapper Machine
Wrapping size(L*W)	(500-1200)mm*(500-1200)mm
Packing height	L type:(500-2000)mm
	H type:(500-2400)mm
	H type:(500-2400)mm
Packing efficiency	20-40 loads/hour
Turntable speed	0-12rpm
Turntable diameter	Diameter:1650mm height:85mm
Turntable loading(max)	2000kg
Voltage	Single-phase 220V/50Hz
Power	Turntable:0.75kw, Film carriage:0.3kw,up-down:0.4kw
Up-down frame	Double-chain, Up-down speed adjustable
Film carriage	Pre-stretch
Control system	PLC
Machine weight(max)	700kg
Machine size	2650mm*1650mm*2400mm



Service

Pre-sale service

1. Testing by customer engineers to learn how to use the machine.

2. Testing the machines with production samples and film materials.

3. Test machine videos will be sent to customers

After-sales service

1. Manual book.

2. Videos of installation, adjustments, settings, and maintenance.

3. Telecommunications or face-to-face online communication.

4. Overseas engineering services.

5. The machine has a one-year warranty period, and the spare parts have a two-year warranty period. During the warranty period, if it is not damaged due to human error, we will replace the accessories free of charge.

FAQ:

1. Q: What is the after-sales service?

 A: Manual installation book, video support, online support, overseas engineers.

2. Q: What is the payment term?

A: T/T by bank directly, or by Alibaba Trade Assurance Service, or by Western Union, or by L/C, or by Cash.

3. Q: How can we make sure of the quality after placing an order?

A: Before delivery, we will send you pictures and videos for your checking, and you can also arrange quality checking by yourself or Inspection by your designated third-party agency

4. Q: Can you do OEM?

A: We accept all OEM orders; contact us and give us your design. We will offer you a reasonable price and make samples for you ASAP.

5. Q: How long is your production lead time?

A: It depends on the product and order quantity. Normally, it takes us 7-15 days for an order with the MOQ quantity.
