Jumbo Bag Filling Machine

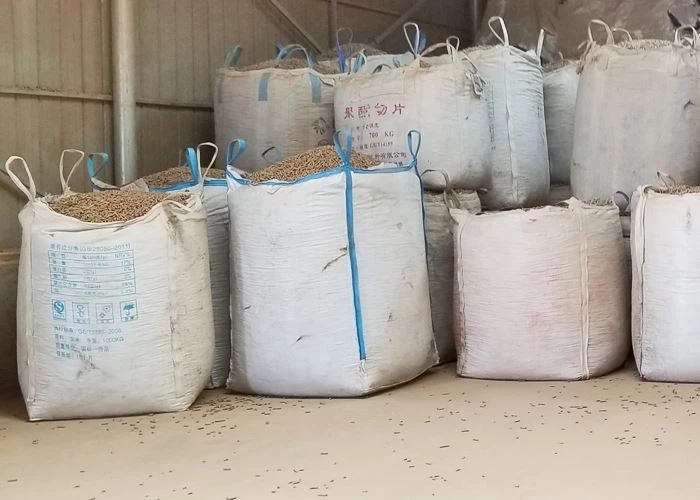

Jumbo bag filling machine, packing granules or powdered material into jumbo bags like 500kg, one ton, 1.5 ton bags
Description
Zhengzhou Fanda Machinery Co., Ltd. is one of the leading manufacturers and suppliers of jumbo bag filling machine in China. With abundant experience, we warmly welcome you to buy cheap jumbo bag filling machine for sale here from our factory. For price consultation, contact us.
1. Technical data of jumbo bag filling machine
| Model | JT1000 |
| Weighing range | 500- 2000 kg |
| Weighing method | Gravity feeding, three-time feeding, sensor weighing of raw material |
| Tolerance | ± 0.2% |
| Filling speed | 10-20 bags/h according to different materials |
| Feeding motor power | 1.5kw |
| Compressed air pressure | 0.6Mpa |
| Air consumption | 0.08 m³/minute |
| Jumbo bag size | 1000x1000mm to 1500x1500mm |
| Jumbo bag inlet size | Φ>400mmGallons |
| s of jumbo bag | Four gallus |
| Working temperature | -20℃ to 40℃ |
| Working relative humidity | <90% RH |
| Mainbody dimension | 2000x2000x5155mm |
| Jumbo bag moving type | by conveyors |
| Conveyor length | 1.5+2.5 meters |
| Conveyor motor power | 1.5+2.2 kW |
| Electric panel | Included, with a PLC system and touchscreen |
| Machine material |
The machine's main body is made of carbon steel Q235 The hopper and the part that touches raw material are made of stainless steel SUS304 |
| Hopper volume | 1 m³ standard; we can OEM according to your requirements |
| Installation dimension | 5500x3000x5200mm |
| Total weight | 1150 kg |
| Shipping | by one 20 feet container |

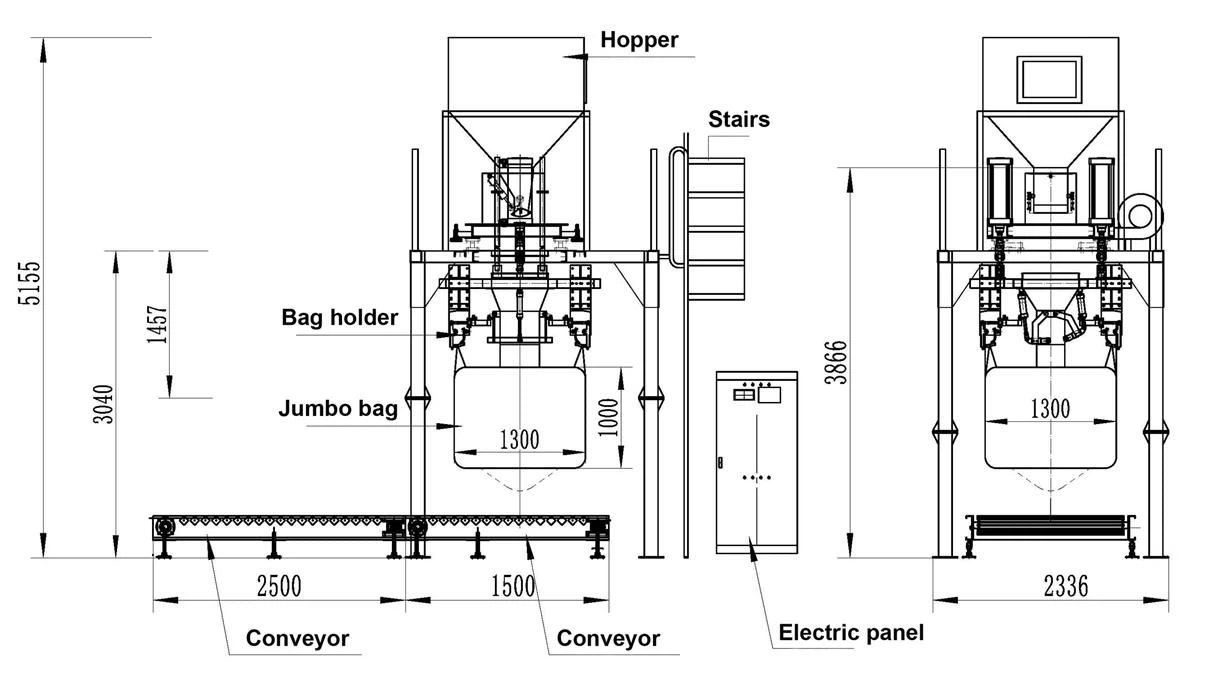

Drawing of jumbo bag filling machine
2. Jumbo bag filling machine introduction
A Jumbo bag filling machine is a bagging machine that fills powdered and granular material into big jumbo bags, like 500kg/bag, one ton per bag, or 1.5 tons per bag, which is widely used for the packing solution of wood pellets, feed pellets, fertilizer, industrial and chemical granular or powdered material, or grain and cereals. Due to its wide use, it can be used in many different industries such as grain and oil, food, feed pellet making, wood pellet making, fertilizer pellet making, medical, chemical, cement, glass, friction material, refractory material, steel, building material, environmental protection, etc
A jumbo bag filling machine consists of a hopper, weighing system, bag clamping system, bag-moving conveyors, an electric panel with a PLC control system, a machine frame, and a compressed air system.
Our standard machine is equipped with a 1 m³ hopper; we can make hoppers in different volumes to meet your specific requirements or usage. Usually, people feed raw material into the hopper via a bucket elevator, belt conveyor, screw conveyor, or directly from a large storage tank.
The electric panel is the main control system for this jumbo bag-filling machine and uses a PLC to control the entire weighing system. The electric panel has a touch screen that lets the user set the target filling weight, check the number of bags filled, and control the entire system.
The bag clamping device holds the jumbo bag and helps the raw material inside achieve better density; it operates on compressed air, so this machine requires an air compressor.
After the raw material enters the feeding hopper, the electric panel controls the weighing sensor to weigh the material and achieve the target weight with high accuracy. The bag clamp system can automatically release the ton bag after the material fills into the bag, and the conveyor under the machine can move the bag away.
The weighing system supports fast, medium, and slow feeding, using three feeding cycles to reach the target weight and improve weighing accuracy.
Features of jumbo bag filling machine
Suitable for various granular and powder materials used across different industries. Applies three-time feeding to get the target weighing value, weighing material by the sensor to improve packing precision
A worker manually places the bag into a bag-clamping device, which automatically clamps the bag before filling and releases it after filling.
During filling, it can automatically shake the jumbo bag to distribute the material evenly and improve packing density.
A feeding place equipped with a cleaning door to clean powder material, easy maintenance
Equippedwith two conveyors under the packaging machine to move the packed bags away
The hopper and machine parts that contact raw material are made of SUS304 stainless steel, making them easy to clean and corrosion-resistant if the raw material is corrosive. The frame is made of Q235 carbon steel.
Depending on your packing material, we can provide a dust collector if you pack powdered material.
Use a famous-brand weighing controller and weighing sensor, PLC control, easy operation, and maintenance.e
Use a famous-brand air cylinder, frequency converter, AD module, and CPU

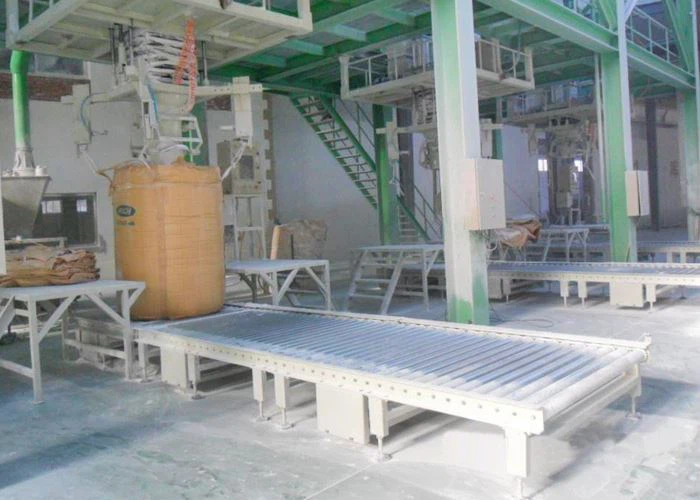

Jumbo bag filling machine installation
