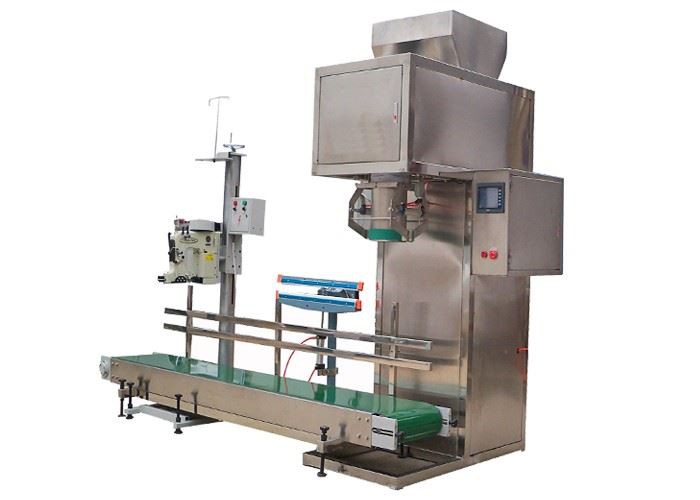

Pellet Packaging Machine
packaging machine weighing pellets, filling pellet into bags and seal the bags, have heat sealer to seal plastic bags, nylon bags, have sewing machine to seal woven bags.
Description
Pellet Packaging Machine
1. Pellet packaging machine technical data
| 1.1 Packaging machine | DGS50K |
|
| Weighing range | 10-50kg or 50-100kg | |
| Packaging speed | 4-8 bag/minute | |
| Tolerance | ≤±0.1-0.2％ | |
| Relative humidity | <90% | |
| Packaging scale voltage | AC220V/50Hz, or customized | |
| Weighing method | sensor | |
| Sealing conveyor voltage | AC380V/50Hz, or customized | |
| Sealing conveyor motor | 0.55kw | |
| Sealing conveyor size | 2000x400x320mm | |
| Sealing conveyor belt | PVC belt, width 320mm | |
| Hopper volume | 1 m³ | |
| Control method | automatic control by electric panel | |
| Electric panel control system | PLC system with touch screen | |
| Compressed air pressure | 0.6Mpa | |
| Air consumption | 0.5m³/h | |
| Machine material | Stainless steel | |
| Installation size | 1050x880x2400mm | |
| Total weight with sealers | 480Kg | |
| 1.2 Sewing machine | seal woven bags |
|
| Sewing speed | 9 meters/minute | |
| 300-600bags/h | ||
| Sewing type | stitching | |
| Sewing height | 400-900mm adjustable | |
| Motor power | 0.37kw | |
| Stitch type | double thread chain stitch | |
| Max sewing thickness | 8mm | |
| Stitch width | 6.5-11mm | |
| Needle mode | 80800 200#-250# | |
| Working speed | 1700rpm | |
| Wheel diameter | 114mm | |
| 1.3 Heat sealer | Sealing plastic bags, nylon bags made of BOPP/CPP, BOPP/PE, PET/PE, etc |
|
| Heat strip quantity | 2 | |
| Sealing type | heat sealing | |
| Sealing length | 650mm | |
| Sealing width | 8mm | |
| Bag thickness | 0.01-0.4mm | |
| Power | 1.5kw |
Plastic bags sealed by heat sealer Woven bag sealed by sewing machine
2. Pellet packaging machine introduction
This pellet packaging machine is a quantitive packing machine, it is designed to pack the wood pellets and animal/poultry feed pellets and other granules like grain, cereals, and other chemical materials into bags and seal bags, this machine can equip with a heat sealer to seal plastic/nylon bags or sewing machine to seal woven bags.
Pellet packaging machine includes material tank, weighing hopper, sensor, bag clamping system, heat sealer, sewing machine, sealing conveyor, and electric control panel.
Material feed into a hopper from a conveyor or top storage tank, the weighing hopper and sensor will work under the control of electric panel to weighing pellets according to the packing weight set in the PLC system, after people put the bag on bag clamping device the hopper discharge pellets to bags, then use a sealer to sealing the bags.
The hopper on this pellet packaging machine is 1 m³ volume, usually, it is enough for storage material coming from the conveyor, you can put a bigger tank on top of this hopper if you want to install this pellet packaging machine in a production line and want more storage ability.
The weighing system for this packaging machine is a sensor, the PLC system control sensor working to weighing the target packaging weight by fast adding, medium adding, and slowly adding, by three times adding to increase packaging precision.
Pellet packaging machine equipped with a pneumatic bag clamping system, after put bag to the filling pipe just push the limit switch so that the clamping system can hold the, at this time the packaging scale start to fill pellets into bags. The bag clamping system is controlled by an air cylinder, which needs an air compressor with 0.6Mpa air pressure.
The whole weighing process is automatically, only need people manually put the bag to the bag clamping system
The whole machine is made of stainless steel so that the machine is easy to clean and anti-corrosion if the raw material to be packed have corrosivity, thus extending the machine lifetime
Automatically controlled by the electric panel:
From electric panel can set target packaging weight want to pack per bag, it can set fast speed to add, medium speed adds and low speed add, by three times weighing and filling to get the target weight for one bag, thus to make sure the high weighing accuracy with only 0.1-0.2% tolerance. From electric panel can change to use automatic control packing method and manual control packing method. From the electric panel can check the bags have been packed.
Equipped with a sealing conveyor, on the packaging machine main body have a 2 meters length sealing conveyor, thus helping move the bags during packaging and sealing. The conveyor width is 400mm, use a PVC belt.
Equipped with a sewing machine or heat sealer to seal the bags
The sewing machine is designed to seal woven bags
The heat sealer is designed to seal plastic bags, nylon bags made of BOPP/CPP, BOPP/PE, PET/PE, etc
You can choose this packaging machine with both the sewing machine and heat sealer or only with a sewing machine or only with heat sealer according to the what kind bags you will use.
