Wood Crusher Machine

Wood crushing machine is a kind of crusher machine to turn wood logs, tree branches, wasted wood, wood residues, trunk, bamboo into sawdust. It is widely used by wood pelletizing plant, wood powder making, edible fungi growing, sawdust burning furnace., etc. With the blades and hammers inside, it can cut the wood into pieces and then beating them into sawdust by hammers at same time inside the crushing chamber, that is why wood crusher also called sawdust making machine.

Send Inquiry

Description

Introduction of wood crusher machine:

A wood crushing machine is a kind of crusher machine to turn wood logs, tree branches, wasted wood, wood residues, trunks, and bamboo into sawdust. It is widely used by wood pelletizing plants, wood powder making, edible fungi growing, sawdust burning furnaces., etc. With the blades and hammers inside, it can cut the wood into pieces and then beat them into sawdust by hammers at the same time inside the crushing chamber, that is why a wood crusher is also called a sawdust sawdust-making machine. we could supply the CE.

wood crushing machine 1

Technical data of wood crusher machine:

Model: FS400

Capacity:400-600kg/h

Power:7.5kw

Blade quantity: 4pcs

Model: FS500

Capacity:600-800kg/h

Power:18.5kw

Blade quantity: 4pcs

Model: FS600

Capacity:800-1200kg/h

Power:30kw

Blade quantity: 4pcs

Model: FS700

Capacity:1000-1500kg/h

Power:37kw

Blade quantity: 6pcs

Model: FS900

Capacity:1500-2000kg/h

Power:55kw

Blade quantity: 8pcs

This machine integrated the chipping and crushing functions into one.
It is suitable for wood chips, wood branches, wood logs, bamboo, biomass waste, etc.
The largest wood log size that can be put into the wood crusher is less than 40cm.

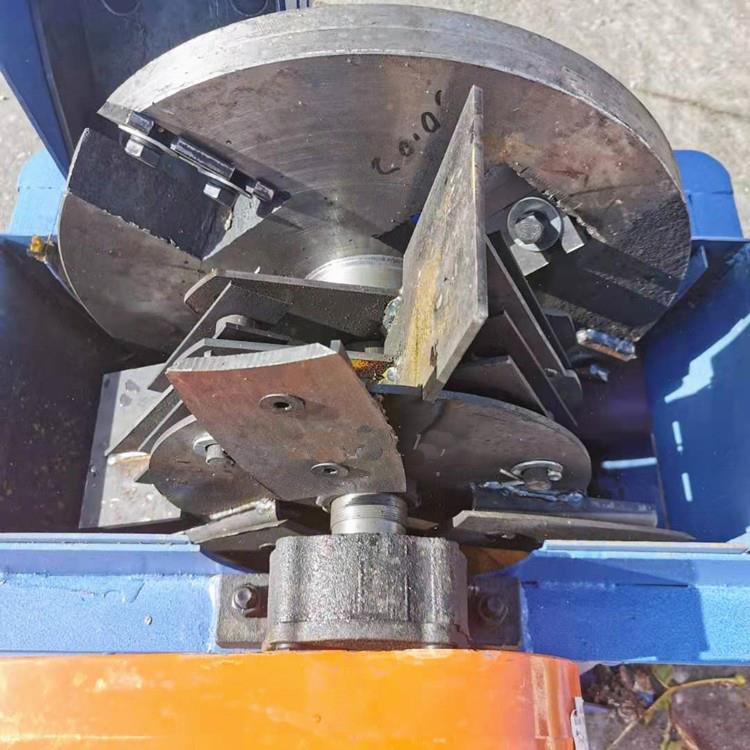

Blade for wood crusher machine :

1. The blade knife and blade disc, bolt, and other main parts are made of special alloy metal, which possesses the advantage of durable, resistance.

2.It is easy to operate and high crushing ratio

3.It is easy to move and easy for outdoor manufacturing.

Raw material for wood crusher machine

The war material can be wood chips, wood logs, wood branches, coconut shells, bean stems, slabs, bamboo, waste veneer, cotton stalks, and other biomass waste.

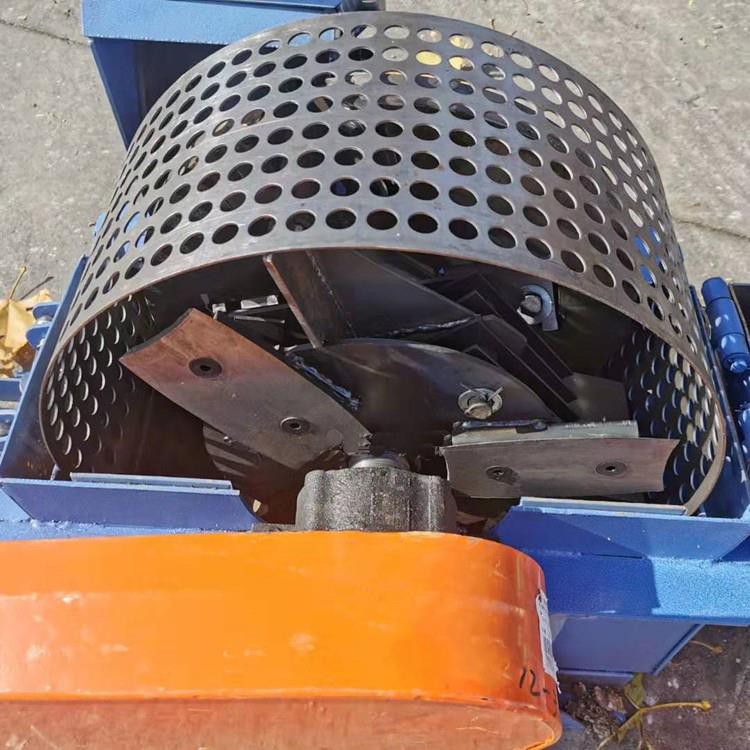

The final production is sawdust. The final sawdust size can be adjustable by using different size sieves, the sawdust diameter can be 3mm-20mm.

Maintenance for wood crusher machine:

1. The bearings should be injected with oil after the machine working for three to four hours.

2. Adjust the tightness of the V belt after using it for a period, lower 6-10mm is suitable.

3. Clean and examine carefully every part of the machine, if there is any malfunction, repair it in time.

wood hammer mill models
