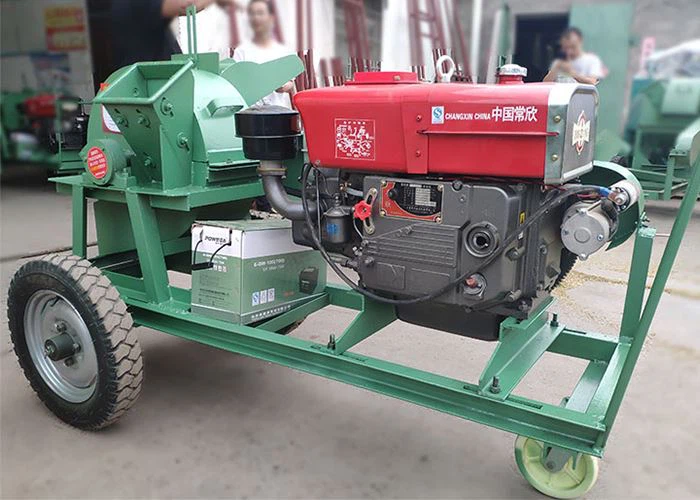

diesel engine sawdust making machine
small diesel engine sawdust-making machine with high quality and good price
Description
Zhengzhou Fanda Machinery Co., Ltd. is one of the leading manufacturers and suppliers of diesel engine sawdust making machine in China. With abundant experience, we warmly welcome you to buy cheap diesel engine sawdust making machine for sale here from our factory. For price consultation, contact us.
Introduction:
The diesel engine sawdust-making machine is a kind of hammer mill, which mainly uses the principle of blade cutting and air impact to pulverize the materials to be pulverized. This equipment is mainly composed of five parts: crushing, classification, wind conveying, unloading, and dust removal. The traditional screening process is eliminated, and wind energy is used to form powder at one time.
Waste wood is a common material, including old furniture, waste wood removed from the renovation of old houses, disposable wood products, waste wood from construction projects, old and decayed wood, and other urban waste wood, so the recycling of waste wood is imperative.
The sawdust shredder can process pinewood, miscellaneous wood, poplar wood, fir, and raw bamboo, and can also be used to cut fibrous stalk-like materials such as bamboo, thatch, corn stalk, sorghum stalk, etc. Because of the compact structure, small floor space, good chipping quality, low power consumption, and suitability for mobile operations, this machine is widely used in the material preparation section of small and medium-sized particleboard and fiberboard production enterprises, and can also be used by self-employed for the production of commercial wood chips.

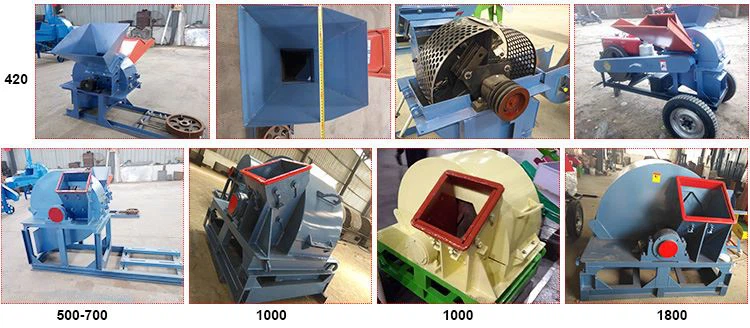

Technical Parameters of diesel engine sawdust-making machine :
| Model | Number of blades | Diameter of feeder | Electric motor | diesel engine | Capacity |
| FS400 | 4 | 150*150 | 7.5 | 18 horsepower | 400-600kg/h |
| FS500 | 4 | 200*200 | 18.5 | 32 horsepower | 600-800Kg/h |
| FS600 | 4 | 250*250 | 30 | 55 horsepower | 800-1200Kg/h |
| FS700 | 6 | 300*300 | 37 | 65 horsepower | 1000-1500Kg/h |
| FS900 | 8 | 350*350 | 55 | 160 horsepower | 1500-2000Kg/h |
How to operate a diesel engine sawdust-making machine :
1. The diesel engine wood crusher should be fixed on the ground and can be fixed with cement.
2. The wood sawdust maker needs to be tested before the machine is turned on. Simply rotate the main shaft to see if the bearing is running normally, check whether the gap between the parts is firm before installation, and check whether the foundation is stable because it is basically installed after installation. To finalize the shape, it will be more time-consuming to re-install the wood shredder, which is also a waste of materials;
3. The grinder and the motor should be installed on the base made of angle steel.
4. When the wood flour machine starts to operate, pay attention to whether there is any debris on the wood shredder. When the wood shredder is tested, check whether it is upside down. Put in less material to see if the finished product is up to the standard. The customer buys the wood shredder. After returning home, when placing the wood when installing the test machine, try to wait for the first piece of wood to enter the feed inlet before placing the second piece to avoid jamming.
5. The wood shredder should be fed evenly. If there is noise, the temperature of the bearing and the body is too high, or the material is sprayed out, it should be shut down immediately for inspection and troubleshooting.
6. Before turning on and shutting down the wood shredder, check the circuit to avoid leakage. The length of the wood must be moderate, not too long, it is best to be less than 30 cm, and not too thick. Be as wide as possible around the outlet and inlet to avoid accidents.
7. After the wood shredder has been in operation for 300 hours, the bearings must be cleaned and the oil replaced; when installing the oil, it is better to fill the gap of the bearing seat with 1/3 of the gap, and no more than 1/2 at most. When shopping for a long time, the transmission belt should be removed.
8. The wood shredder should stop feeding before shutting down and then cut off the power supply to shut down after the material in the standby is removed. Cleaning and maintenance should be carried out after shutdown.
9. The staff should carefully check the materials before the wood shredder works to prevent hard objects such as metals and stones from entering the shredder room to causing accidents.
10. Don't change the pulley of the wood shredder frequently to prevent the speed from being too high or too low.
Hot Tags: diesel engine sawdust making machine, China, manufacturers, factory, buy, cheap, price, for sale
