Chicken Feed Making Machine

chicken feed making machine is a kind of poultry feed making machine, it not only can make chicken feed , also can make cattle feed, sheep feed, cow feed,pig feed, duck feed, birds feed, fish feed and so on.

Send Inquiry

Description

Zhengzhou Fanda Machinery Co., Ltd. is one of the leading manufacturers and suppliers of chicken feed making machine in China. With abundant experience, we warmly welcome you to buy cheap chicken feed making machine for sale here from our factory. For price consultation, contact us.

How to make chicken feed or poultry feed?

There are lots of raw materials that can be used to make chicken feed, such as corn, mats, bean cake (flour), fish meal, bone meal, and shellfish meal, and then you have to choose a suitable pellet machine to make feed pellets. Fande Machinery provides you solutions for free, please feel free to contact us.

Application of pellet machine:

This machine is mainly used for raising rabbits, fish, ducks, chickens, shrimps, pigs, cattle, sheep, and industrial pellet processing. It is suitable for large, medium, and small aquaculture, food and feed processing plants, livestock farms, and poultry farms, and also can be used by individuals, families, distributors, and wholesalers.

If it is used for personal, family, or small output feed pellet machine, if it is a large feed factory or breeding plant, the large pellet feed machine can be equipped with a bucket screw conveyor for fast feeding, saving manpower and material resources, and Other ancillary equipment, crushers, mixers, feeders, coolers, packaging machines, etc.

There are three driving modes of the pellet machine, electric engine feed pellet-making machine, diesel engine feed pellet-making machine, and feed pellet-making machine by a tractor.

small feed making machine diesel pellet machine 6 pto

electric pellet mill diesel engine feed pellet mill Pto feed pellet mill

1. the small pellet-making machine has a simple structure, wide adaptability, a small footprint, and low noise.

2. It can be used on the farm. If your area has limited electricity and no electricity, you can choose a diesel engine to feed pellet-making machine or PTO pellet-making machine.

Technical data and cost of small feed-making machine:

Model	Electric motor	Diesel engine	Capacity (for feed pellets)	Flat dieΦ	Net/Gross Weight	Dimension
120B	2.2/3 Kw	8 Hp	60-100Kg/h	120 mm	80/100 Kg	750x320x610xmm
150B	4 kW	8 Hp	90-120Kg/h	150 mm	95/115 Kg	750x350x650mm
200B	7.5 kW	15 Hp	200-300Kg/h	200 mm	200/230 Kg	1000x430x950mm
230B	11 kW	22 Hp	300-400Kg/h	230 mm	290/320 Kg	1140x470x970mm
260B	15 kW	35 Hp	400-600Kg/h	260 mm	330/360 Kg	1200x520x1070mm
300B	22 kW	55 Hp	500-700Kg/h	300 mm	420/450 Kg	1270x520x1070mm
360B	22 kW	55 Hp	700-900Kg/h	360 mm	470/500 Kg	1340x580x1060mm
400B	30 kW	55 Hp	900-1100Kg/h	400 mm	630/660 Kg	1450x620x1150mm

Tell me what is your material and what capacity you need, and we will send you a quotation freely.

The characteristics of feed pellets：

1. Powdered feed and grass meal can be pelletized without a little liquid addition, so the moisture content of pellet feed is basically the moisture content of the material before pelleting, which is more conducive to storage.

2. Dry material processing, the produced feed pellets have high hardness, smooth surface, and internal maturation, which can improve the digestion and absorption of nutrients.

3. The particle formation process can denature the resistance factors in grains and beans, reduce the adverse effects on digestion, kill all kinds of parasite eggs and other pathogenic microorganisms, and reduce all kinds of worms and digestive system diseases.

Working principle:

The pellet feed machine is powered by an electric motor and a diesel engine, based on the principle of circular motion, driving the coupling so that the main shaft and the flat die will drive the pressure wheel to rotate and smash under the action of friction. Subsequently, the material is gelatinized at a high temperature between the pressure wheel and the grinding plate, and the protein is coagulated and denatured. Under the pressure of the pressure wheel, it is discharged from the grinding plate hole. The produced particles are sent out of the machine through the spinning plate, and the length of the particles can be adjusted through the incision.

In the pelletizing process, the pellet feed machine does not need to add water and does not need to be dried. After the natural temperature rises to about 70 degrees, the starch can be gelatinized. When the temperature reaches about 70 degrees, various additives and drugs can be added. The granular feed made by the granular feed mechanism has deep internal maturation, smooth surface, and high hardness, and can be stored for a long time. It is suitable for breeding rabbits, fish, chickens, pigs, sheep, cattle, and small and medium-sized feed processing plants to reduce breeding costs and increase Ideal equipment for economic benefits.

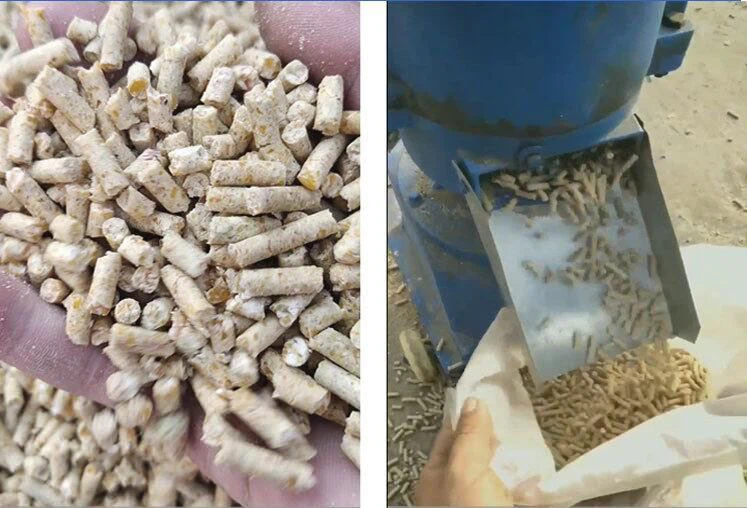

poultry feed making machine1
