Wood Pallet Block Making Machine
A wood pallet feet making machine/wooden pallet block extruder is used for the alle which, s u sed iused in tation. It uses sawdust or wood chips as raw material, which is hydraulically pressed at high temperature up and down into a long block, and then sawn to the required specification. The pallet lock size and shape are made to the customer's requirements.
Description
Zhengzhou Fanda Machinery Co., Ltd. is one of the leading manufacturers and suppliers of wood pallet block making machine in China. With abundant experience, we warmly welcome you to buy cheap wood pallet block making machine for sale here from our factory. For price consultation, contact us.
Wood Pallet Block Making Machine
Introduction to the Wood Pallet Block Making Machine:
Our plant's wood block press machines mainly use shavings, sawdust, and other waste materials to produce wood shaving piers or blocks. Through drying, glue mixing, sizing, and heating, the pier is smooth, waterproof, and strong enough to withstand nail force. We can make molds to match customers' required sizes and specifications. The finished product is fumigation-free and inspection-free.
1. Raw Materials for Wood Pallet Block Making Machine: Wood shavings, sawdust, and other wood waste materials.
2. Wood Pallet Block Making Machine

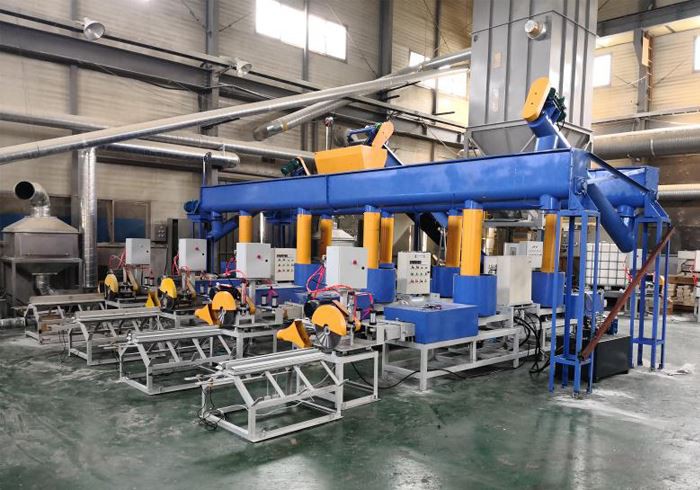

The production line includes a crusher, dryer, gluing machine, hot pressing machine, and saw to cut the block piece by piece.
3. Features of the finished products ofthe Wood Pallet Block Making Machine
The finished wood pallet block has a flat, smooth, artistic surface, good water resistance (it should not disintegrate after 48 hours in water, wind, and sun), and strong nail-holding force. We can manufacture according to customer specifications and requirements, with export inspection exemption, fumigation-free, and formaldehyde release quantity (E2). The products conform to national standards, with a combined strength of 1.07 MPa and a screw-holding force of 1590 N (vertical) and 1660 N (parallel), which is ideal for fumigation-free wood tray holders (feet pier, a leg). The fumigation-free, non-heat-treated product is mainly used in place of pallets and logs.
4. Parameters of Wood Pallet Block Making Machine
| Mold size | Weight | Power | Capacity (m³/24hours) | ||
| 75*75mm | 1050kg | 12kw | Single head | Double heads | Three heads |
| 80*80mm | 1100kg | 12kw | 2-3m³ | 3-4m³ | 5-6m³ |
| 80x90mm | 1150kg | 15kw | 2-3m³ | 3-4m³ | 5-6m³ |
| 90x90mm | 1200kg | 15kw | 2-3m³ | 3-4m³ | 5-6m³ |
| 100x100mm | 1300kg | 16kw | 3-4m³ | 4-5m³ | 7-8m³ |
| 100x120mm | 1350kg | 18kw | 3-4m³ | 4-5m³ | 7-8m³ |
| 120x120mm | 1400kg | 18kw | 3-4m³ | 4-5m³ | 7-8m³ |
| 120x140mm | 1450kg | 19kw | 4-5m³ | 5-6m³ | 8-9m³ |
| 140x145mm | 1500kg | 19kw | 4-5m³ | 5-6m³ | 8-9m³ |
