Vertical Ring Die Wood Pellet Making Machine

Zhengzhou Fanda Machinery Co., Ltd. is one of the leading manufacturers and suppliers of vertical ring die wood pellet making machine in China. With abundant experience, we warmly welcome you to buy cheap vertical ring die wood pellet making machine for sale here from our factory. For price consultation, contact us.



Vertical Ring Die Wood Pellet Making Machine

Introduction to biomass wood pellet making machine

The double vertical ring dies granulator has a unique shape, a practical structure, and strong stability, making it suitable for wood chips, straw, rice husk, peanut shells, bamboo chips, palm fiber, and other materials.

Just tell us your biomass raw material (type, size, and moisture), the intended use of the final biomass pellets, capacity requirements, and budget. FANDA will offer you a turnkey pellet manufacturing solution.

Parameters of biomass wood pellet making machine

Model	Power	Cpacity	Demision	Weight
MKLH450	55kw	0.8-1t/h	1400*750*1550mm	2200kg
MKLH550	90kw	1.5-2t/h	1900*9500*1800mm	4000kg
MKLH800	160kw	2-3t/h	2500*1350*2100mm	6500kg
MKLH1000	200kw	3-4t/h	2650*1450*2100mm	8000kg

The features of the biomass wood pellet making machine:

1. Gearbox: Continuing the gearbox advantages of our company's third-generation flat die pellet machine, it adopts high-precision gear transmission and is equipped with an automatic hydraulic circulating oil system to ensure the service life of the gearbox and the working stability of the pellet machine.

2. Vertical motor: 8-level motor, working vertically; its outstanding feature is that the mounting hole is centered on the output shaft, and the surrounding holes are equidistant so that the machine has greater power and stability.

3. Fan system: Located on the side of the pellet machine working chamber, it can freely control its operating time. The main function is to help the pellet machine work chamber remove dust and exhaust steam.

4. Workpiece part: The die and pressure roller are made of alloy steel. Our company completes the heat treatment process in-house. The hardness can reach 52 or more, which not only ensures granulation but also extends service life. The working method improves from the inside out. The combination of centrifugal and extrusion forces increases output while maintaining particle hardness and density. The unique design of 3-8 pressure rollers increases extrusion frequency and output. The mold uses a "vertical double-layer" design; the same aperture can be used up and down to extend workpiece service life, and two molds with different apertures can also be used, saving the cost of purchasing additional molds to make particles of different sizes.

5. Automatic lubrication system for the pressure roller: The refueling time and working time can be freely controlled, and the refueling frequency can be adjusted freely according to the working time so that the machine can work without stopping for 24 hours, and avoid the time and labor cost of stopping the machine for refueling. Greatly improves work efficiency.

Dust collecting system:

1 . Dedusting from the top of the pelletizing chamber automatically

2. Keep a clean working environment

3. Bag-type dust collector

Automatic lubrication:

1. Add lubrication to rollers&bearings automatically

2.No need to stop the machine during lubrication

3. Decrease the friction between each working part

4. Increase the service life of the machine

Electric cabinet:

1. Control the operation of the wood pellet machine efficiently.

2. Siemens or Schneider Electric Components.

Spare parts for the ring die and rollers:

1. Material: 20CrMnTi Alloy Steel

2 . Pellet Hole: 6mm, 8mm, 10mm

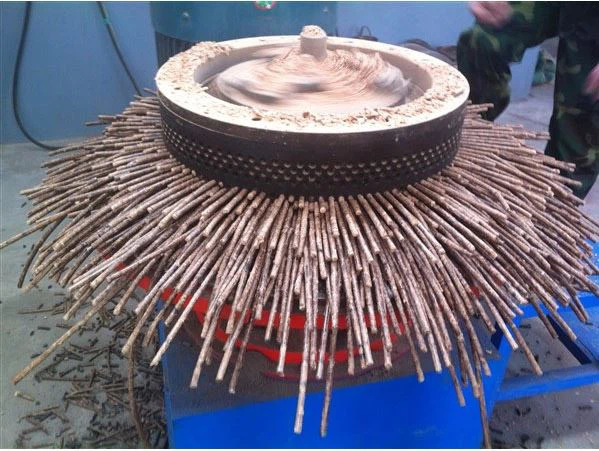

Picture of biomass wood pellet making machine:
