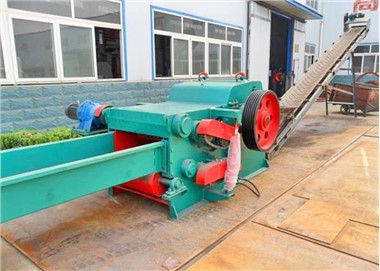

Large Capacity Wood Chipper Machine Tree Branch Shredder Crushing Machine
The comprehensive crusher is improved on the basis of the drum chipper. It can crush wood, waste wood, bamboo, wooden pallets, palm trees, etc. The crushed wood chips can be used for papermaking, carbon, fuel, etc. It is a professional waste wood processing and recycling equipment.
Description
Introduction:
The wood comprehensive crusher is an efficient and multifunctional wood processing equipment, which is widely used in wood processing, furniture manufacturing, building decoration and other industries.
Its main features include:
1. Wide applicability: It can crush various woods, such as stumps, roots, trunks, branches, etc., and can even be used to crush packaged straw.
2. Efficient and stable: The equipment has a compact structure, simple operation, convenient maintenance, good crushing effect, high stability and strong reliability.
3. Flexible adjustment: According to the needs, the shape of the finished product can be freely adjusted from sawdust, granules to flakes to meet different production needs.
Working principle:
The machine consists of a feed port, a crushing chamber, a power and control system.
The wood enters from the feed port and is quickly crushed by the interaction between the high-speed rotating blade and the fixed blade. The crushed wood is separated by a screen to achieve different crushing effects to meet diverse needs.
The equipment is not only simple in structure and easy to maintain, but also has high crushing efficiency. It is an ideal choice for wood processing, forest logging and other places. By adjusting the screen, the size of the wood crushing can be easily controlled to achieve multi-functional application.
Raw materials mainly consist of all kinds of trees, undersized log, timber felling residues (such as branch, twig, etc.), wood pallet, wood building template, and wood processing residues ( such as slab, batten, log core, building templates, etc.) and non-wood raw materials (such as waste of flax, reed, bamboo ,maize straw, cotton stalk, etc.).
wood log/waste composite wood crusher wood chips
wood chips are30-50mm in size;
and can be used to make organic fertilizers and biomass fuels.
Technical Parameters:
Model |
BX1300-600 |
BX1400*600 |
BX1600*800 |
BX1850*1000 |
capacity | 10-15T/H | 15-20T/H | 30T/H | 35-40T/H |
Feed chain plate width | 1300mm | 1400mm | 1600mm | 1800mm |
Number of Knives |
4 pieces |
4pieces | 4 pieces | 6 pieces |
Number of hammerheads |
20 pieces |
24 pieces | 28 pieces | 36 pieces |
Max input material size |
Wood material Φ<38cm, or EFB size < 600x500mm |
Φ<300-400mm |
Φ<500mm | Φ<600mm |
Discharge material size |
30-1100mm or EFB fibber 10-50mm |
30-1100mm | 30-1100mm | 30-1100mm |
Power |
187Kw |
212kw | 285kw | 360kw |
Electric panel |
1 motor soft starting to reduce starting amps, 2 pieces remote controller |
1 motor soft starting to reduce starting amps, 2 pieces remote controller | 1 motor soft starting to reduce starting amps, 2 pieces remote controller | 1 motor soft starting to reduce starting amps, 2 pieces remote controller |
Dimension |
8500x2400x3000mm |
8500*2600*3000mm | 9500*3000*3100mm | 9500*3100*3100mm |
Total weight |
14 tons |
18tons | 23tons | 28tons |

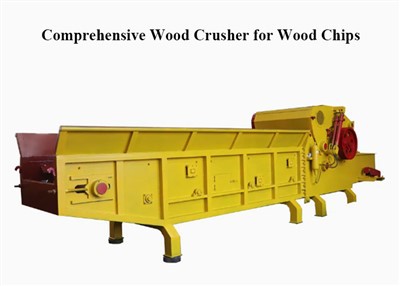

Industrial professional Electric wood crushing machine with a capacity from 10t/h-35t/h:
Electric Model Wood tree log Crusher/chipper/shredder With Mobile Tires
Diesel Model wood pallet Crusher
Diesel Model Wood Crusher With Mobile Tires
Parts of China manufacturer High Quality Comprehensive Wood Crusher for sale:
Delivery&packing:
It needs to be transported in a 20/40-foot container. To protect the machine from damage in the humid ocean environment, the main parts of the machine are wrapped with film to ensure the safety of the electrical parts.
