1. Introduction of wood crusher

1.1 What is a wood crusher?

A wood hammer mill is a machine for crushing wood to powders the size of sawdust, which is widely used in wood pellet lines or charcoal production lines to prepare raw materials to make pellets or charcoal briquettes. This machine can crush wood chips, small wood pieces, wood residues., etc wood raw material or EFB fiber and other biomass material to 3-5mm size.

1.2 Which component does a sawdust-making machine have?

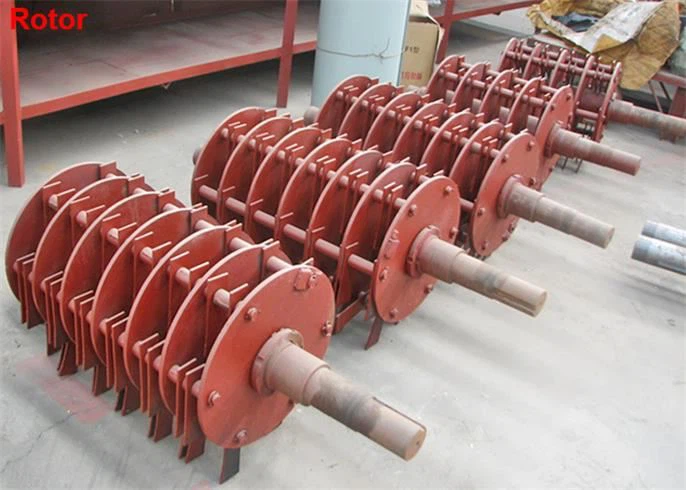

Wood hammer mill is made up of a base frame, motor, rotor, hammers, screen, and feeding chute. Inside the grinding, chamber is the rotor and sieve, on the rotor installed hammers, and the motor transmission rotor by coupling.

The rotor and hammers will rotate at high speed when starting the motor, raw material feeding on the cut on top of the hammer mill, the high-speed rotating hammers heat the wood material to pulverize them. Until the raw material is ground to a size smaller than holes on the sieve then they will be discharged from the machine.

The diameter of holes on the sieve decides the size of finished sawdust from this wood hammer mill, we can manufacture sieve to make 3-5mm, 5-6mm, or 7-8mm size sawdust.

Usually, to make 6mm diameter wood pellets or charcoal briquettes use 3-5mm sawdust, if make 8mm diameter wood pellets use 5-6mm sawdust, if make 10mm or 12mm wood pellets use 7-8mm sawdust

1.3 What is the size of raw material that can feed into this hammer mill?

The best size of raw material put into a wood hammer mill is <6cm, usually, people use this kind of machine to crush wood chips, small wood residues, EFB fiber., etc

If your raw material is wood logs, tree branches, or wasted wood, it is better to use a wood chipper to shred your raw material into wood chips and then use it to make sawdust

If your raw material is building templates, film plywood, waste pallets, or big-size wood plates, it is better to use a template shredder to reduce the size first, and then use a wood crusher to crush them.

1.4 What are the advantages of your wood hammer mill?

- Motor and rotor are fixed by coupling, which has higher transmission efficiency compared with the hammer mill fixed motor and rotor by v-belt

- Hammers on hammer mills use tungsten carbide hammerheads, which have a longer lifetime compared with a common hammer made of carbon steel

- We do a dynamic balance test for the rotor when we manufacture a wood hammer mill to avoid vibration when the machine running

- Our company uses famous brand bearings, bearing seats, and motor on our wood crusher to improve machine quality and lifetime

- Easy maintenance, slide the side doors can remove the sieve and hammers to replace them

2. Technical data for different models

3. Complete hammer mill crushing system

The complete hammer mill crushing system includes a feeding conveyor, strong magnet, hammer mill, sawdust collect system, dust collect system, bag type dust collector, discharge conveyor, and electric panel.

Machine	Description	Picture
Feeding conveyor	Send raw material into the hammer mill Belt moving speed VFD adjustable to adjust feeding speed
Strong magnet	Installed on conveyor to remove iron from raw material, in case of iron damage hammers and sieves
Hammer mill	Crushing raw material to 3-5mm
Sawdust collect system	Cyclone collect sawdust from hammer mill
	Airlock Installed under cyclone to reduce air pressure, thus preventing dust fly during the discharge of sawdust
	Air fan Move crushed sawdust from the hammer mill to the cyclone
Bag type dust collector	Collect dust from the whole crushing system
Discharge conveyor	Move sawdust from the airlock
Electric panel	Equipped thermal overload protector to protect the machine from overload and overheating the main motor applies a star-delta start to reduce starting amps include VFD to control feeding conveyor feed speed
