Paper Straw Making Machine
This Machine is suitable for producing paper straws and very small paper tubes.
Description
Zhengzhou Fanda Machinery Co., Ltd. is one of the leading manufacturers and suppliers of paper straw making machine in China. With abundant experience, we warmly welcome you to buy cheap paper straw making machine for sale here from our factory. For price consultation, contact us.

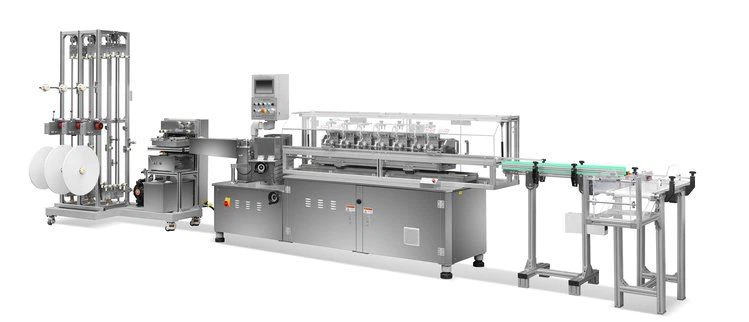

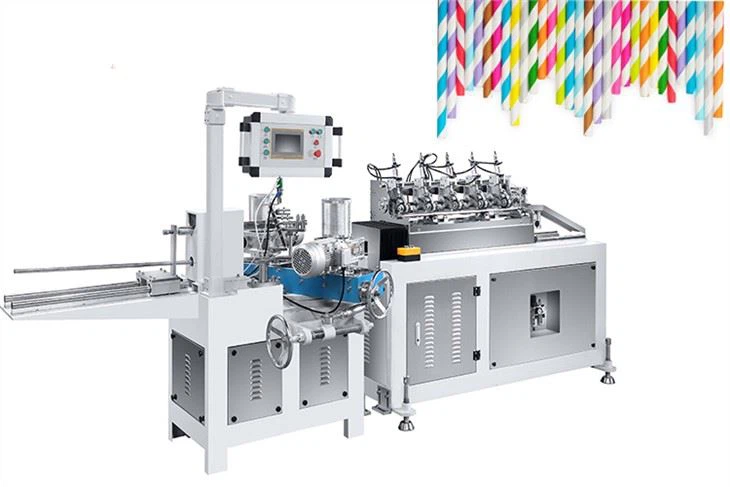

A multi-blade small tube cutting paper straw making machine is suitable for producing different sizes of paper straws and very small paper tubes. It integrates raw material feeding, gluing, winding, and cutting at one time.
Features of the paper straw making machine :
1. The man-machine interface is a touch screen, equipped with a PLC controller, simple settings, and convenient operation. The
2. The main motor is equipped with variable frequency speed regulation and a touch screen man-machine interface. Easy for parameter setting & operation.

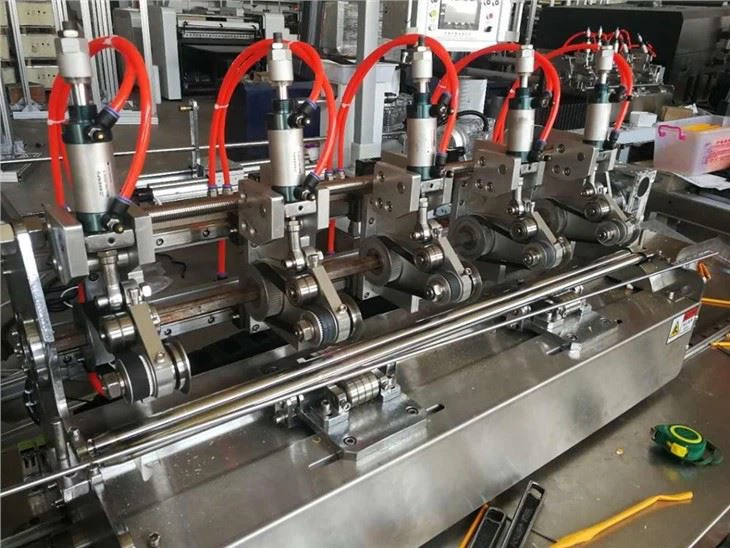

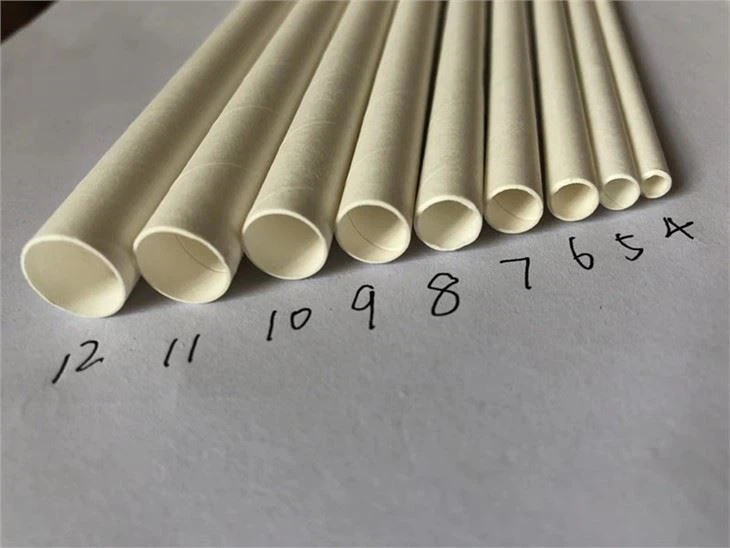

3. C The cutting section adopts a numerical multi-blade cutting system and can make paper straws of any size, such as 6 mm, 8 mm, 10 mm, etc.
4. The servo synchronous tracking cutting system provides high precision, and the multi-blade cutting system saves time and improves efficiency.
5. The machine body and main spare parts are made of stainless steel. Ensures product hygiene and environmental protection.
6. The Sino-tech paper straw making machine is ideal for paper straws. It is specially designed for spiral wind paper tubes with very small diameters, offering high speed and stable capacity.
7. The paper straw machine is easy to operate, and low maintenance cost and great flexibility make this machine perfectly suited for all paper tube manufacturers.
8 . Sino-tech's machines are equipped with top-quality famous electrical and mechanical parts, such as Schneider, Siemens, Airtac, etc. We also offer fully customizable options based on your request.
Technical Parameters of the paper straw making machine:
|
Technical Parameter |
Control System | ||
|
Paper Layer |
3 layers |
Motor |
3.0kw |
|
Inner Diameter |
5- 12 mm |
PLC |
Panel Master |
|
Wall Thickness |
0.5- 1 mm |
Operating Panel |
Panel Master |
|
Winding Speed |
20-40 meters/min |
Inverter |
3.7 kW Schneider |
|
Winding Nose |
Two noses,s single belt |
Electric Components |
Schneider |
|
Cutting System |
Numerical Multi-blades (standard 5 pcs) |
Servo Motor |
SchneideSynchronous |
|
sm tracking cutting system |
Servo motor synchronism tracking |
Pneumatic Components |
Jingwei |
|
Bearing |
Haerbin |
||
|
Gluing Way |
Single/Double sides |
Screw Rod / Slider |
Shangyin |
|
Working Air Pressure |
0.6Mpa |
Configuration |
|
|
Operator |
1peopleson |

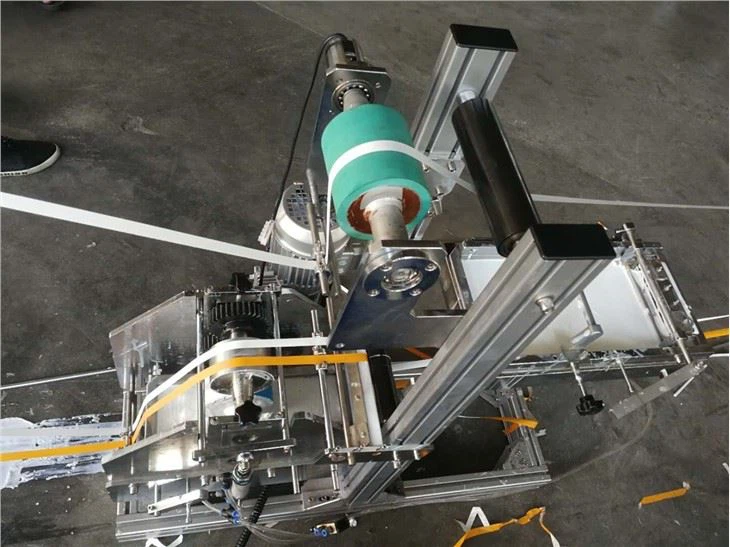

Paper Reel Stand |
3 Layers |
|
Power Supply |
380V/3Phase/50Hz |
Gluing Unit |
3Layers |
| Measurement & Weight |
Belt |
5 Pieces | |
|
Measurement |
3500*1500*1200mm |
Mandrel Shaft |
2 Pieces |
|
Working Space |
7000*5000mm |
Extra blades |
5 Pieces |
|
Weight |
1300kgs |
Useful Tool |
1 Set |
