Automatic Soap Bar Box Packing Machine
automatic soap carton boxing machine, carton box packing machine for a soap bar, soap bar box packaging machine price
Description
Application of carton box packaging machine for soap bars:
The product is suitable for boxing the Aluminum-Plastic blister card, Soap bar, toothbrush, medicine bottle, cosmetic, poker, electronic, and daily.
The machine can finish automatically all jobs such as manual-folding, paper box opening, stuff boxing, batch number printing, box sealing, and so on. It can be used alone, or be linked with the other device.
Features of soap bar boxing packaging machine :
1. Adopt PLC automatic control system, frequency conversion. The electrical components adopt internationally famous brands.
2. Photoelectric system monitors all parts moving. If there is a malfunction during the running, the wrong place will be shown and the machine can stop automatically.
3. Reject automatically the box which is lacking stuff or specification.
4. If the staff or specification lack, the paper box will stop feeding.
5. Performance is stable. The operation is easy and convenient.
6. The machine can feed and box continually, the machine can instead of 15-20 the workload of workers.
Technical parameter of soap bar box packaging machine:
| Model | FD120 |
| Production capacity | 50-100 box/min |
| Packing material | the max. size 200×120×70mm the min. size 50×25×12mm |
| Box quality | 250-300 g/m2 According to its dimensions to confirm |
| Operation manual | max .size 260×180mm min. size 110×100mm |
| paperweight | 55-65g |
| Volume of consumption | 20 M3/h(pressure 0.5-0.7MPa) |
| Total power | 1.5KW |
| Packing material | The max. size 200×120×70mm |
| Electric power | 380V 50HZ |
| Overall dimension | 3700×1350×1700mm |
| weight | 1800kg |

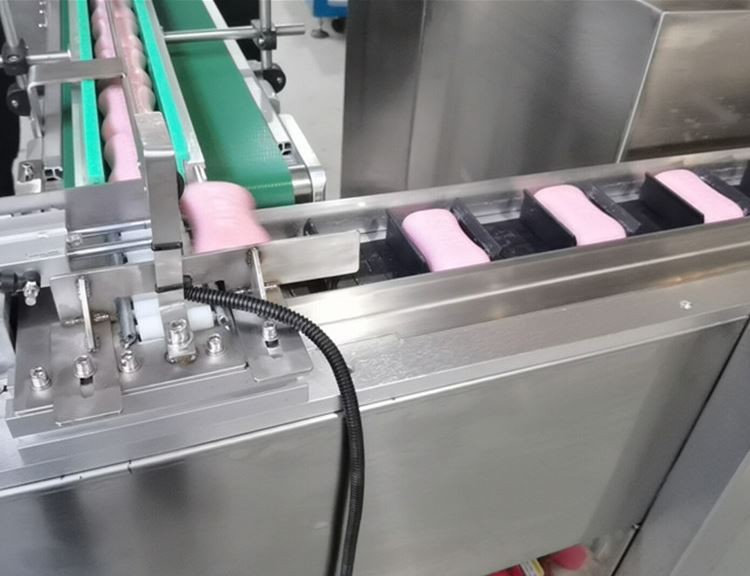

Carton box packing machine details:
Service
Pre-sale service
1. Testing customer engineers to learn how to use the soap bar box packing machine.
2. Testing the packing machines, with productions samples and film materials.
3. Test machine videos will be sent to customers
After-sales service
1. Manual book.
2. Videos of installation, adjusting, setting, maintenance.
3. Telecommunications or face-to-face online communications.
4. The engineer overseas services.
5. The machine has a one-year warranty period, and the spare parts have a two-year warranty period. During the warranty period, if it is not damaged due to man-made reasons, we will replace the new accessories free of charge.
