Honey Sachet Packing Machine
The automatic small sachet pouch honey stick filling packing machine is widely uesd for Food, Medicine, chemical liquid products such as Ketchup, flavoring, Sauce, Pasty, Shampoo, cream, body wash liquid, and so on,5kg,10kg,15kg per bag.
Description
This honey sachet packing machine is specially designed for liquid and semi-fluid materials, suitable for cosmetics (shampoo, cream, etc.), oil, soy sauce, jam, honey, etc.

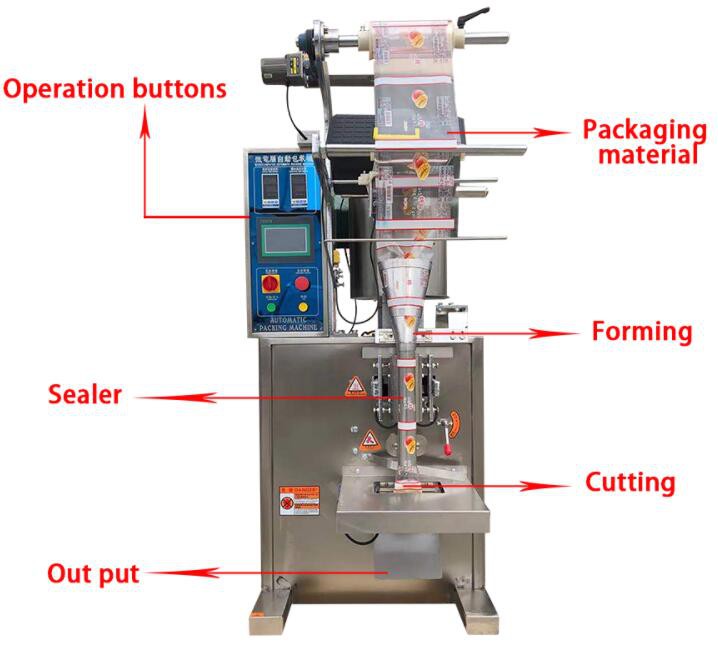

Automatic bag making, measuring, filling, sealing, cutting, and counting in one step.
Send toolbox + vulnerable parts + free installation and debugging + training.
Technical Specification of automatic honey sachet packing machine
| Model | 320 | 420 | 520 | 620 | 720 |
| Bag Length(mm) | 80-180 | 80-300 | 80-400 | 100-400 | 100-400 |
| Bag Width(mm) | 45-150 | 50-200 | 80-250 | 150-300 | 180-350 |
| Max Width of Roll(mm) | 320 | 420 | 520 | 620 | 720 |
| Packing Speed(bags/min) | 40-90 | 5-80 | 5-70 | 5-65 | 5-10 |
| Air Consumption(Mpa) | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 |
| Gas Consumption(m3/min) | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 |
| Power Voltage (v) | 220v | 220V | 220v | 220v | 220v |
| Power (kw) | 3kw | 2.2KW | 4kw | 4kw | 5kw |
| Demension(cm) | 122*90*175 | 132*95*136 | 115*179.5*165 | 165*125*2000 | 178*134*210 |
| Weight(kg) | 350 | 540 | 600 | 800 | 900 |
Features of honey sachet packing machine:
1. Imported PLC control system and color touching screen enable easy and efficient operation.
2. Noiseless stepping motor to improve steady working conditions and decrease vibrator and noise.
3. Fully food level stainless steel 304 material, ensure packing products keep clean and machine long life-span.
4. Imported color mark sensor, accurate cutting positioning, excellent machine performance, and beautiful packaging.
5. A variety of automatic alarm protection functions are used to minimize losses.
Honey sachet packing machine factory:
