Small Toilet Soap Production Line

Small Toilet Soap Production Line

200-500kg and 500-800kg/g tiolet soap production line, make toilet soap from soap noodle, change the mold can make toilet soap with different shape...

Send InquiryChat Now

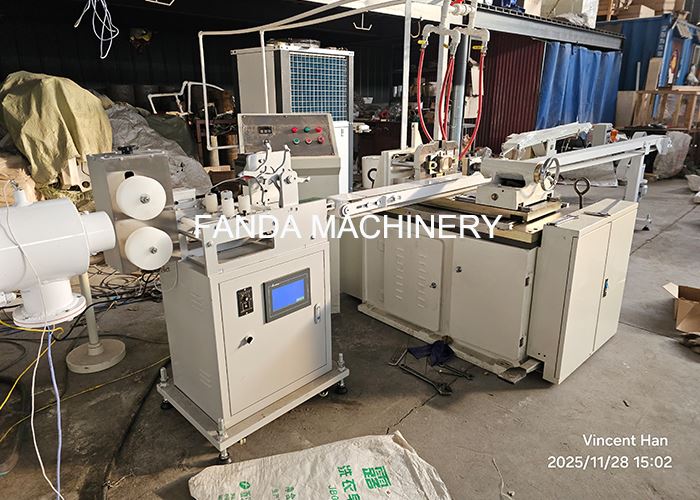

Small Toilet Soap Production Line

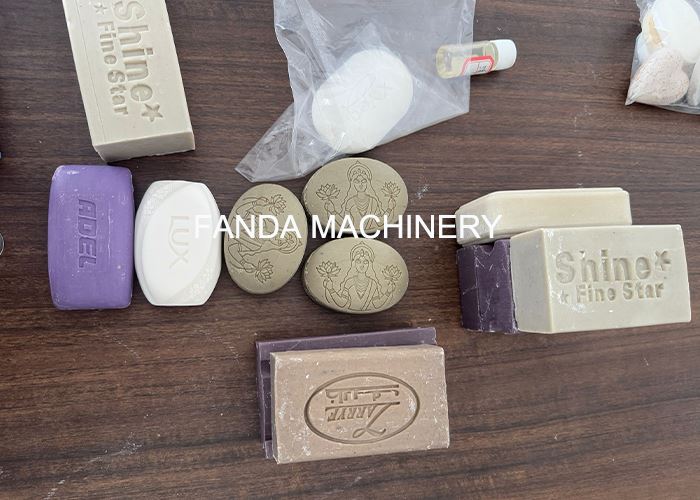

Toilet soap.jpgToilet soap is a widely used in our daily life, we design this small toilet soap production to produce toilet soap from soap noodle, perfume and pigment. We have 200-500kg/h and 500-800kg/h toilet soap production line for your choice.

Small toilet soap production line advantage:

1. From the mixing part can add perfume and pigment to decide the smell and color of final toilet soap

2. From mixing part can add Zeolite and Sodium silicate to adjust the fatty acid percentage in the toilet soap, this production line can produce 50-70% fatty acid content high quality toilet soap, it can also produce low quality toilet soap with fatty acid 40-50%. It decide by how many Zeolite and Sodium silicate added to the soap noodle.

3. Two step milling, make the raw material with better fineness.

4. Applied duplex vacuum extruding, to improve the compact of the toilet soap.

5. Printing and cutting part is easy to change mold to make toilet soap with different shape and size, on the mold have logo or symbol to print on the soap.

6. We can make different kind of mold as your requirement, the mold is made of copper, which is hard-wearing.

Small toilet soap production line machine list:

Machine Name

Quantity


Mixing part

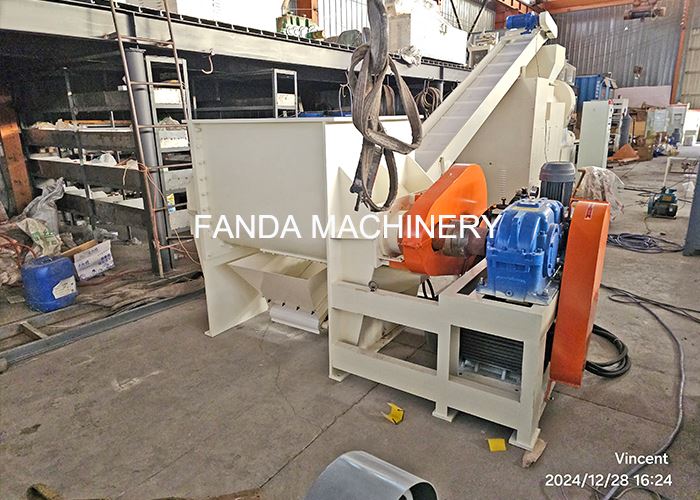

Mixer

To mixer the soap noodle, Zeolite, Sodium silicate, perfume and pigment together evenly

1


Conveyor

To transfer the mixed raw material to grinding part

1

Milling  part

Simplex refiner

To grinding the raw material and improve the fineness of the mixed raw material

1

Simplex refiner.jpg

Three roll mill

Second time grinding, to continuous improve the fineness

1

Extruding part

Conveyor

To transfer the grinded raw material to extruding part

1

Duplex vacuum plodder.jpg

Duplex vacuum plodder

To press the raw material into soap bar

1

Vacuum pump

To extract the air and water in extruding chambe

1

Printing and

cutting part

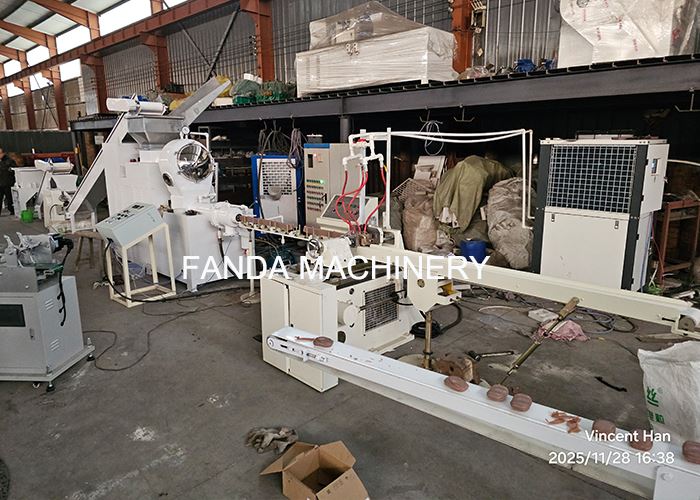

Toilet soap Printing and cutting machine

To print logo or symbol on the soap and cut the soap to different shap

1

Toilet soap printing cutting machine.jpg

toilet soap mold.jpg

toilet soap mold

Cooler

To cooling the printing machine and the mold

1

Flat conveyor

To transfer the toilet soap, so that labor can collect the soap from this flat conveyor

1

Conveyor

To transfer the soap residue from cutting part back to extruding part

1

Controlling part

Electric panel

To control all of the machines in the production line

1

electric panel.jpg

Packing part

Packing machine

To pack the toilet soap into bag or box

1

Packing part.jpg
