Automatic Laundry Soap Making Machine

The automatic laundry soap making machine include two part, the first part is saponification equipment, it is used to make soap noodle from oil, the second part is a lanudry soap making line it is used to make laundry soap from soap noodle, so if we put these two part together it is a complete line to make lanudry soap from animal oil or vegetable oil, the process include saponification step, mixing step, milling step, vacuum pressing step, cutting step and packing step. Use the saponification equipment and laundry soap production line can make high grade laundry soap with 35-70% fatty acid, applied double vacuum pressing technology, the final soap is compact and not easy cracking.

Flowchart of automatic laundry soap making machine


1.Saponification pot   2. Soap crutcher pan   3. Column tube heater    4. Filter   5. Vacuum drying chamber   6. Duplex granulator   7. Cyclone separator   8. Condenser   9. Water-air separator   10.   Buffer tank   11. Pumps   12. Conveyor   13. Mixer   14. Three roll mill   15. Conveyor   16. Duplex vacuum plodder   17. Digital cutting machine   18. Conveyor   19. Packing machine   20. Electric panel

Working condition of saponification equipment and lanudry soap production line

1. Water: 10 cube meters circulating water (no consume), saponification step need water

2. Electricity: 100Kw.h

   The standard voltage is 380V, 50Hz, we can customize the motor as your requirement of voltage

3. Installation area: length 30 meters, width 10 meters, height 15 meters.

   This area include storage soap noodle, final lanudry soap and workers operation place.

4. Labor: need 10-12 people to operate the production line

Machine list of 500-1000kg/h automatic laundry soap making machine

No.

Machine name/specification

Model

Quantity

Power(Kw)

1

Saponification pot

Since the sizeφ2500*3750*600mm is too large for shipping, these three pot will be made on site during installation

P250

3

/

2

Soap crutcher pan

Effect: it can add the foam base, pigment, essence and so on to stir together with the soap base.

Output: 1.5 tons per time.

Size: Φ 1500 * 2400 mm

Weight: 1200 kg

T140

2

2.2x2

3

Column tube heater

Evaporate the water from the soap base and make the soap more transparent and effective.

Column number: 87.

Or: Φ 525 * 3450 mm

Weight: 496 kg

T325

1

/

4

Filter

Purpose: to filter the impurities in the soap pan and the mixing tank.

Size: 6.5mm.

Size: Φ 400 * 550 mm

S325

1

/

5

Vacuum drying chamber

The process of turning a soap base from a liquid to a solid, thereby extracting water from the soap base.

Speed: 13 revolutions per minute.

Work efficiency: 500-1000kg/ h.

Size: 3280*1500*1600mm.

Weight: 1570 kg

T130

1

2.2

6

Duplex granulator

Work efficiency: 1000-2000kg/ h.

Motor power: 15 kw.

Dimensions: 2600*900*1200mm.

Weight: 1200 kg

C245

1

7.5+15

7

Cyclone separator

Effect: to separate the soap base from the water.

Dimension: Φ 960 * 3400 mm

Weight: 520 kg

T960

1

/

8

Condenser

Number of orifice plates: 7

Dimensions: 950*3800mm.

Weight: 750 kg

T75

1

/

9

Water-air separator

External dimension: 400*1300mm.

Weight: 150 kg

T670

1

/

10

Buffer tank

Dimension: Φ 700 * 2300 mm

Weight: 275 kg

T80

1

/

11

Pumps

Vacuum pump 1set      Snail pump 1set

Bleaching pump  1set  Immersible pump 2sets

Effervescent alkali pumps 1set

Gear pump 3sets

Rod pump 2 sets

/

11

1.5x11

12

Conveyor

To transfer the mixed material to vacuum extraction machine

Dimension: 4300x550x650mm

Weight: 160Kg

TSR50

1

2.2

13

Mixer

Add flavor, color or other ingredients and mixing them together evenly

Capacity: 70kg/batch

Weight: 420Kg

Dimension: 1800x1000x1100mm

SJ700

/

3

14

Three roll mill

To grinding raw material and prepare for next step

Dimension: 1300*1650*1300mm

Weight: 2692Kg

S260

1

7.5

15

Conveyor

To transfer the mixed soap noodle to extraction machine

Dimension: 4440x550x850mm

Weight: 165Kg

TSR50

1

2.2

16

Duplex vacuum plodder

To make laundry soap

Dimension: 3900x1000x2150mm

Weight: 2150Kg

C245

1

7.5+15

17

Digital cutting machine

To cut the soap strip to pieces

Cutting length: 60-400mm adjustable

Dimension: 800x360x800mm

Weight: 58Kg

Qk200

1

/

18

Conveyor

To transfer the final soap to packing machine

Dimension: 4440x550x850mm

Weight: 165Kg

TSP50

1

2.2

19

Soap packing machine

To pack the soap

Dimension: 4600x1100x1900mm

W500

1

3.2

20

Electric panel

To control all of the machines in the production line

/

1

/

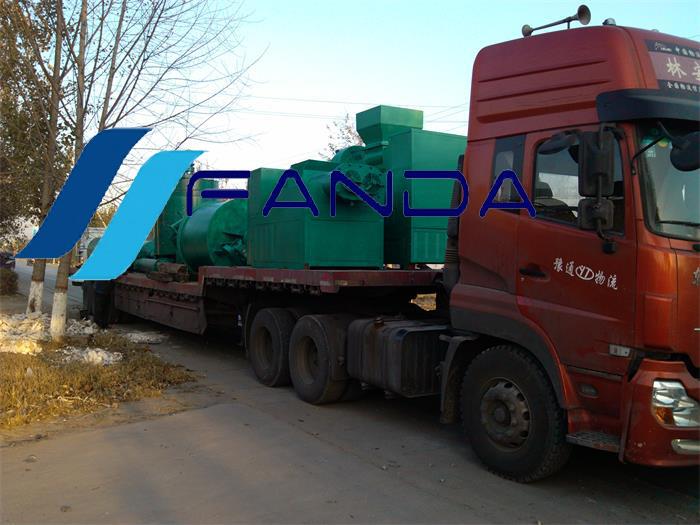

Delivery pictures of saponification laundry soap making line
