Horizontal Pellet Cooler

Horizontal pellet cooler, sieving pellets and cooling pellets at same time. Cooling pellets in small quantity, small pellet line use pellet cooler....

Send InquiryChat Now

Hroizontal Pellet Cooler

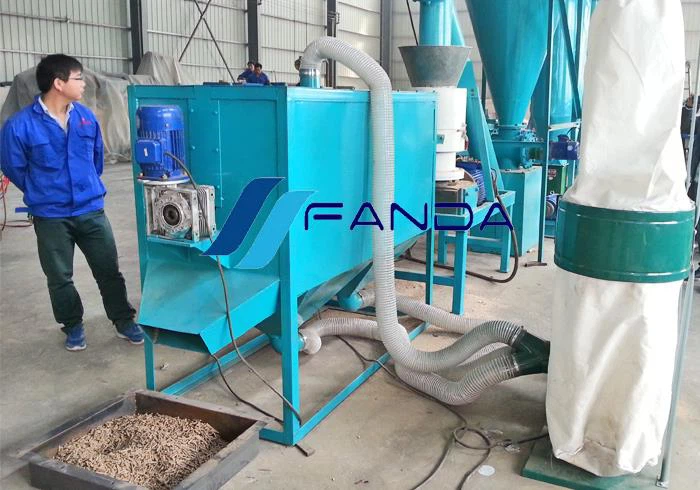

Horizontal cooler.jpgHorizontal pellet cooler is also called small pellet cooler or pellet sieving and cooling machine, it is can sieve the pellets and cooling down the pellets at the same time in small quantity. This pellet cooler is suitable for cooling biomass fuel pellets and feed pellets for small pellet line.

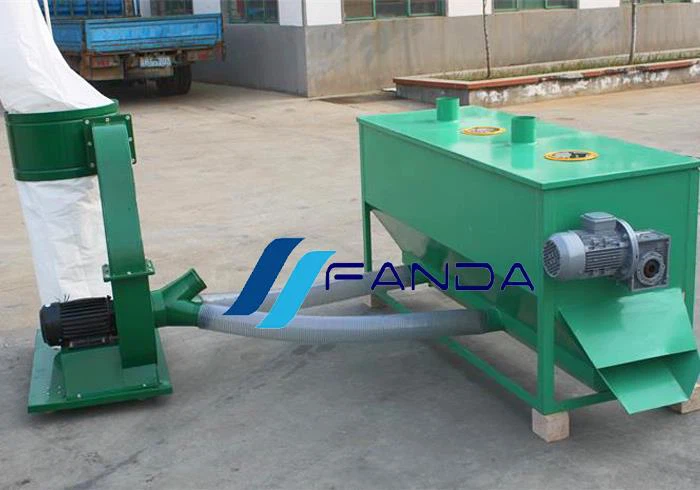

The machine is made up of gearbox and motor, screen, blower and dust collector, pellets come into drum screen from the inlet, during the screen rotating, the pellets will be sieved, the good pellets will go to outlet chute and discharged, the dust will go to dust collector by attraction of blower. At the same time the blower extract the hot air from the pellets to cooling down the pellets.

Horizontal pellet cooler technical data

Model

Capacity

Motor power

Dimension

Weight

HLQ30

200-300kg/h

2.2Kw

1700x750x1120mm

180Kg

HLQ50

400-500kg/h

3Kw

2100x750x1120mm

250Kg
