Wood Crusher Sawdust Making Machine

Wood crusher machine, sawdust making machine, high performance and efficiency crusher machine to make sawdust from wood logs, wood residues. Simple sturcture with widely usage. Final sawdust size changable by change the sieve. Electric motor and diesel engine alternative....

Send InquiryChat Now

wood crusher.jpg

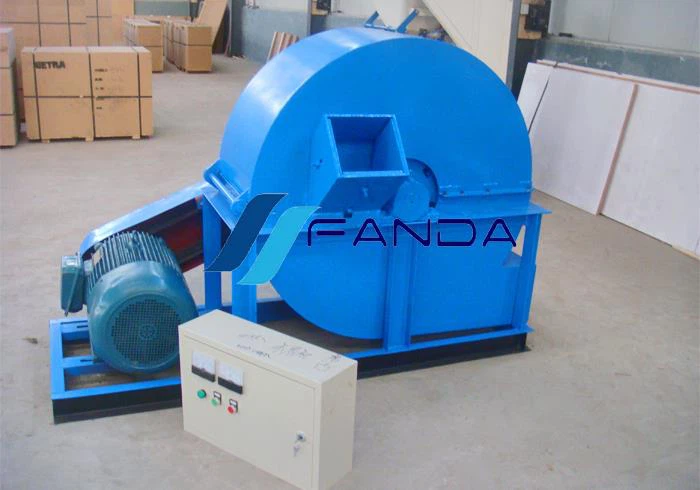

               Wood Crusher Machine/Sawdust Making Machine

Wood crusher machine is also known as wood crushing machine or sawdust making machine, it is specially designed to crush wood logs, tree branches, wood timber,  wood waste, sawmill waste and other wood residues to the wood into sawdust.

Wood crusher machine Sawdust making machine has compact structure, simple design. The whole machine is driven by one motor, connect to the motor is the cutter disc, which is the main part of the machine, on the cutter disc there is blades. After wood feed into the machine from feeding chute, the wood will touch the cutter disc, the blades cut the wood into small pieces, then the hammers bite these small pieces wood to make the size smaller, unless the size is smaller than the holes on the sieve, it will come though the holes and discharged. Because the final crushed powder size is like size of sawdust, so this machine also called sawdust making machine. The diameter of holes on sieve decide the size of the final sawdust. Thus by change the sieve from one machine can get different size sawdust. Usually make wood pellets need sawdust around 5mm size.

Structure.jpgWood crusher Sawdust making machine features

1. Compact structure and simple design make it easy to operate and change the blades.

2. Equipped with both blades and hammers, raw material has better crushing effect.

3. High capacity and stable working performance ensure a continuous running.
4. Grind wood to about 3-5 mm which can be used for bio-pelletizing directly.

5. Two kinds of engine optional, the wood crusher machine can equipped with electric motor or diesel engine, we can make as client requirement.

We also make wood crusher machine/sawdust making machine with diesel engine.

Wood crusher Sawdust making machine technical data

Model

Cutter disc Φ

Power

Capacity

Feed chute size

Blade quantity

Blade size

Dimension

DCS400

400mm

7.5-11Kw

300-600Kg/h

150x170mm

4pcs

90x60x8mm

1200x550x750mm

DCS500

500mm

15Kw

600-800Kg/h

170x200mm

4pcs

120x70x8mm

1500x640x820mm

DCS600

600mm

18.5-22Kw

800-1200Kg/h

190x200mm

4pcs

150x70x8mm

1500x700x900mm

DCS700

700mm

30Kw

1000-1500Kg/h

190x230mm

6pcs

150x70x8mm

1850x830x1050mm

DCS800

800mm

37Kw

1500-2000Kg/h

200x250mm

6pcs

150x80x8mm

1900x870x1350mm

DCS900

900mm

55Kw

2000-3000Kg/h

240x280mm

8pcs

150x90x8mm

1950x980x1450mm

DCS1000

1000mm

75Kw

3000-4000Kg/h

260x350mm

8pcs

150x100x10mm

2000x1100x1500mm
