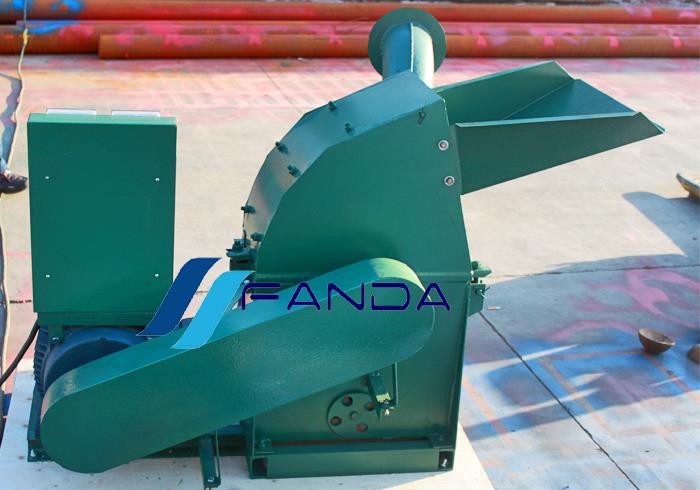

Hammer Mill

The most popular hammer mill, simple inner structure with powerful function to process many kind of raw material. Pellet line, farmers, wood working industry popular machine....

Send InquiryChat Now

Hammer mill is a kind of crusher machine, it is made up of motor, base frame, rotor, hammers and sieve. The structure is very simple but is it have very powerful functions, it is the most popular crusher machine. Raw material feeding into the machine from feeding chute, then material directly go to the crushing room. Powered by motor, the rotor is running with a speed of 2980rpm, during the rotor running, the hammers on the rotor is also running with a very high speed, the hammers will bite the material and make the size smaller and smaller, until the size is smaller than the hols on sieve, the final product will made and discharge from the hammer mill. Usually together with the hammer mill equip with blower, cyclone, airlock and dust collector to control the dust, because if crushing dry raw material there will be a lot of dust, so the cyclone, airlock and dust collector is needed.

Our hammer mill can change the electric motor into a diesel engine.


Hammer mill inner structure

Hammer mill application

It is designed to process many different kind of raw material, such as: small tree branches, wood residues, log barks, small wood blocks, rice straw, corn, wheat straw, bagasse, rice husk, corn stalk, cotton stalk, wood chips, beans straw, peanut shell, sweet potato straw, and other forage grass. It is widely used in pellet making industry, feed making industry, agriculture and farming. That’s why is it called multi functional hammer mill.

Hammer mill advantages

1. This machine is very easy to operate, just start and stop the machine from electric panel, the panel have overload protect function. During working, just need to change the hammers and sieve when they are worn out.

2. It can process many kind of raw materials.

3. A kind of ideal equipment for big small and medium-sized farms, family usage and industry usage.



Hammers in hammer mill

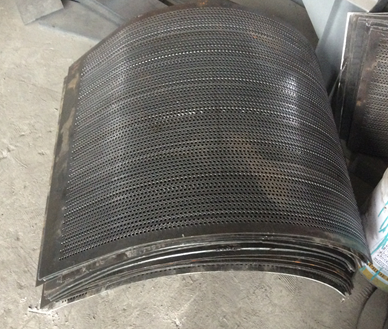

Sieve in hammer mill,the hole size on sieve decide final material size

Hammer mill technical data

Model

Capacity

Motor power

Weight

Dimension

Hammer quantity

HM20

60-120kg/h

2.2Kw

90Kg

480x580x630mm

12 pcs

HM30

200-300Kg/h

5.5Kw

240Kg

900*500*800 mm

12 pcs

HM40

300-500kg/h

7.5kw

270kg

1310*800*1070mm

12 pcs

HM50

600-800kg/h

15kw

450kg

1380*800*1010mm

16 pcs

HM65*27

800-1200kg/h

22kw

1100kg

1500*1000*1100mm

24 pcs

HM65*55

1000-1500kg/h

37kw

1500kg

1700*1000*1100mm

48 pcs

HM65*75

1500-2000kg/h

55kw

1900kg

2100*1000*1100mm

72 pcs

HM65*100

2000-3000kg/h

90kw

2300kg

2400*1000*1100mm

90 pcs

HM130*55

3000-4000kg/h

130kw

5300kg

2800*1620*2100mm

80 pcs

HM130*100

4000-5000kg/h

160kw

6800kg

3020*1620*2170mm

160 pcs
