Dry Type Fish Feed Press Machine

Dry type fish feed press machine, the small model is suitable for starter. Simple structure, easy operate, low power consumption. Make floating and sinking pellets for fish, shrimp, crab. Change mold can make pet feed pellets....

Send InquiryChat Now

Dry Type Fish Feed Press Machine

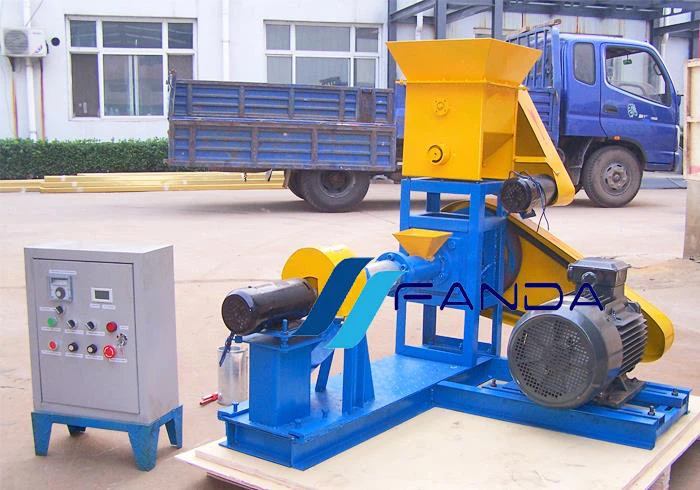

Dry type fish feed press machine.jpgDry type fish feed press machine is a simple machine to produce floating fish feed and sinking fish feed, the machine itself is simple structure, it applies electric heater circle to heating the extruding chamber thus to kill the bacteria and pathogen and provide 100-120℃ temperature for the feed pellets shaping.

Compared with the wet type fish feed machine, the dry type have smaller model to for starter, and the dry dry type do not need boiler, thus to save investment.

The dry type fish feed press machine is quite easy to install, just put the machine on a level ground, fix the machine and connect cables between the motors and electric panel, electric panel and your electric supply, then you can feed the mixed 0.18-0.25mm ingredients into the feeding hopper to make feed pellets. By change different mold, you can get pellets with diameter from 0.8mm to 12mm. The length of pellets is easy to adjust from the cutter.

When we deliver the machine, together with the machine we give you three mold for free.


Dry typre fish feed press machine technical data:

Model

Main motor

Capacity

Feeder motor

Cutter motor

Dimension

Weight

DGP40A

4.4kw one phase

30-40kg/h

0.4kw

0.4kw

1.4x1.03x1.2m

220kg

DGP40B

5.5kw

30-40kg/h

0.4kw

0.4kw

1.4x1.03x1.2m

240kg

DGP50C

11kw

60-80kg/h

0.4kw

0.4kw

1.47x1.1x1.25m

320kg

DGP60C

15kw

100-150kg/h

0.4kw

0.4kw

1.47x1.12x1.25m

350kg

DGP70B

18.5kw

180-200kg/h

0.4kw

0.4kw

1.65x1.4x1.3m

580kg

DGP80B

22kw

200-300kg/h

0.6kw

0.6kw

1.8x1.45x1.3m

695kg

DGP90B

30kw

300-400kg/h

0.6kw

0.8kw

2.1x1.45x1.35m

950kg

DGP120B

55kw

500-600kg/h

1.1kw

1.5kw

2.4x1.95x1.6m

1700kg

DGP135B

75kw

700-800kg/h

1.1kw

2.2kw

2.55x2.05x1.65m

1900kg

DGP160B

90kw

1000-1200kg/h

1.5kw

3kw

3.1x2.65x1.8m

3200kg

SGP200B

132kw

1800-2000kg/h

2.2kw

4kw

3.1x2.85x1.9m

3800kg
