Sawdust Charcoal Briquette Machine

Make charcoal briquette, BBQ charcoal from wood, sawdust, wood chips. High density charcoal briquette, longer burn time. Good quality BBQ charcoal for heating, barbecue and cooking....

Send InquiryChat Now

Sawdust charcoal briquette machine is designed to make briquettes from dry sawdust, the final briquettes density is very high and burn time is long, which is good fuel for heating and cooking. If use carbonization furnace to carbonize the briquettes can get barbecue charcoal, which is good fuel for bbq.



Briquettes

barbecue charcoal

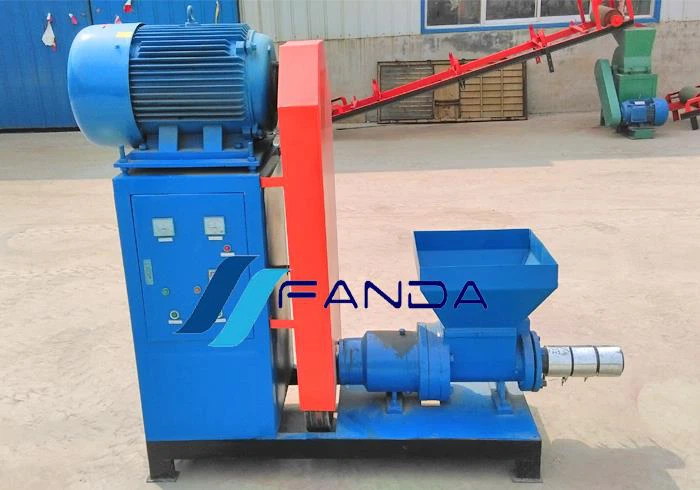

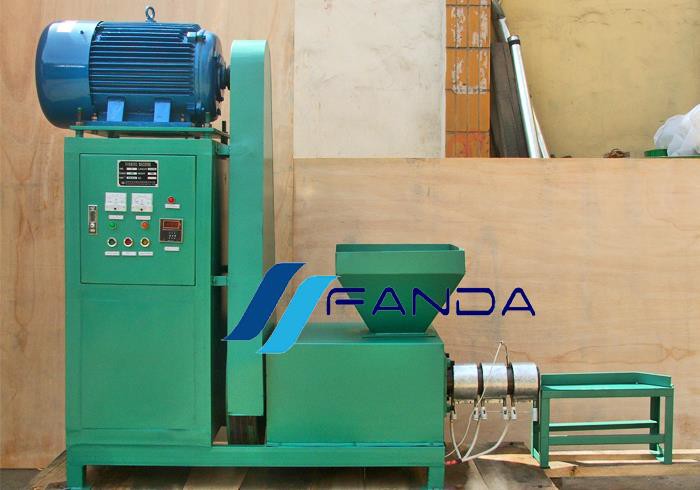

The sawdust charcoal briquette machine is made up of motor, electric panel, reducer, feeding chute, spiral, shaping mold, thermocouple and heating ring. The spiral is inside the shaping mold and keeping rotating after machine start, the heating ring is outside of the shaping ring, sawdust feed into feeding chute, the spiral press the sawdust into shaping mold, with the heating ring increase the temperature, sawdust compress from shaping mold to get briquettes.

Sawdust briquette machine technical data

Model

MT50

MT80

Capacity

150-200 kg/h

300-400 kg/h

Power

15Kw three phase

22Kw three phase

Heating ring power

3Kw*3

3Kw*3

Final briquette diameter

50 mm

80mm

Final briquette length

Adjustable

Adjustable

Final briquette density

1100-1400kg/m³

1100-1400kg/m³

Raw material moisture

8-12%

8-12%

Raw material size

3-5mm

<3mm

Package size

1500*600*1600 mm

1850*650*1300 mm

Gross weight

560 Kg

750 Kg
