Vertical Ring Die Pellet Machine

Vertical ring die pellet machine, good pellet mill to produce pellets from low bulk density raw material like: peanut shell, sunflower husk, rice husk., etc Vertical structure, rotating rollers stable ring die can get centrifugal force in pelletizing room, thus low bulk density material will be easier press into ring die. Automatic grease lubrication system for bearings in shaft and rollers. Ring die can working with two sides, longer lifetime....

Send InquiryChat Now

                                               Vertical Ring Die Pellet Machine

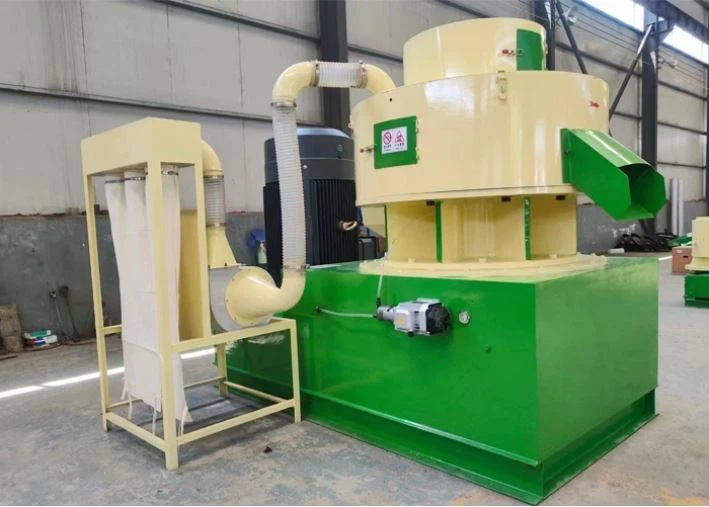

Vertical ring die pellet mill.jpgVertical ring die pellet machine is one kind of the pellet mills. The frame base, motor, reducer, main shaft, rollers, ring die, feeding chute and grease lubrication system are the main parts of the machine. This kind of pellet mill is much more suitable to make biofuel pellets from biomass material like: wood, EFB, coconut shell, sawdust, rice husk, peanut shell, sunflower husk, straw, grass., etc.

The motor connect to reducer by coupling, the reducer decide the rotating speed of main shaft, the main shaft drive rollers to rotate. The motor and reducer make up the drive system of the whole machine. Our machine select China brand name reducer to make sure the quality and performance of the whole machine.

On top of the main shaft is the pelletizing room, in this part include rollers, ring die and pellet cutter. For vertical ring die pellet mill, when machine working the ring die stable while the rollers is rotating, the rotating rollers can bring centrifugal force, which can help to press the raw material into the holes of ring die. That's why it mill have great advantage on process low bulk density raw material. Due to the pelletizing room is on top of main shaft, this kind of pellet mill is called vertical ring die pellet machine.

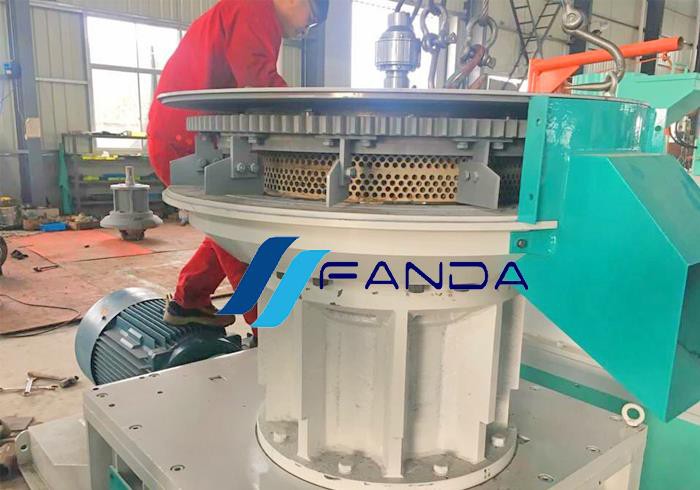

Why choose our vertical ring die pellet millpelletizing chamber.jpg

1. Vertical structure, centrifugal force in pelletizing room, have better performance on soft raw material.

2. Equipped with grease lubricate system, automatic greasing to protect bearings.

3. On the ring die have two side holes, after one side is worn out, turn the ring die to use the holes on the other side, thus to extend the life time of ring die.

4. Ring die with specifical compression ratio for different raw material.

5. Gearbox transmission system, greatly improve the productivity

Working video of vertical ring die pellet mill


 Vertical ring die pellet mill


Ring die

Vertical ring die pellet mill technical data

Model

MKLH450

MKLH500

MKLH560

MKLH600

MKLH700

Capacity

600-800Kg/h

800-1200Kg/h

1200-1500Kg/h

1500-2000Kg/h

2000-2500Kg/h

Power

55Kw

75Kw

90Kw

132Kw

160Kw

Ring die inner Φ

450mm

480mm

550mm

550mm

700mm

De-dust fan power

1.5Kw

1.5Kw

1.5Kw

2.2Kw

3Kw

Lubricator power

0.37Kw

0.37Kw

0.37Kw

0.37Kw

0.37Kw

Pellet cutter power

1.1Kw

1.1Kw

1.5Kw

1.5Kw

1.5Kw

Material moisture

12-15%

Raw material size

<5 mm

Pellet diameter

6mm, 8mm, 10mm, 12mm or customized

Pellet moisture

7-9%

Ring die/roller texture

20CrMiTi

Ring die lifetime

Produce pellets for 1000 hours

Package size

2290*1090*1100mm

2300*1110*1490mm

2780*1200*1800mm

2800*1200*1800mm

2850*1310*1990mm

Gross weight

2000 Kg

3000Kg

5000 Kg

5400 Kg

7000 Kg
