Diesel Ring Die Pellet Mill

Diesel ring die pellet mill.jpgWe designed the diesel ring die pellet mill,to solve the electricity supply problem, in the place where electricity supply is not stable or frequently electricity shortage, this vertical ring die can make the dream of produce pellets in big quantity come true.

We replace the main motor in vertical ring die pellet mill into a diesel engine, the diesel engine transmission the gear box to make pellets. Since this is a big diesel engine, consider to start the diesel engine easily we put battery and auto-start device to the diesel engine, just turn the key to start the diesel engine like start a car.

The diesel ring die pellet mill applied vertical type ring die pellet mill, the ring die keep stable while rollers running, the centrifugal force in pelletizing chamber make it easier to press raw material into ring die to compress pellets.

The diesel ring die pellet mill adopt gearbox connect the diesel engine and pellet mill together, it is name brand gearbox to improve the transmission efficiency.

Why choose diesel ring die pellet mill?

1. This diesel ring die pellet mill also equipped with oil pump which can automatic lubricate the bearings in main shaft and rollers.

2. Compared with diesel flat die pellet mill, the diesel ring die pellet mill capacity is higher, it can make pellets for industrial purpose and big quantity

3. Electric start diesel engine, make the start of pellet mill easier

4. Gear transmission, greatly improve transmission efficiency and productivity

5. Vertical ring die type, with centrifugal force in pelletizing chamber, raw material is easier press into hole of ring die

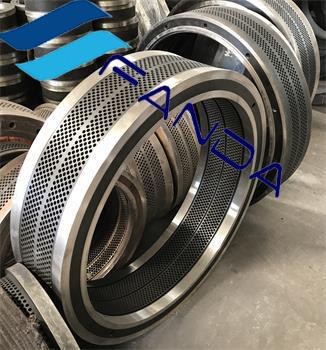

6. The ring die have two sides, after one side worn out, can turn to use the other side to make pellets, double the lifetime of ring die, one ring die can produce pellets for 1500 hours.

7. Equipped with feeding auger, can make sure feeding raw material to the machine at a constant speed.

8. China famous brand gearbox, make sure the working working stable

9. High wearable roller shell, greatly extend the lifetime of roller shell

Diesel ring die pellet mill technical data

Model

DMKL450-75

MKL450-110

Capacity

600-800kg/h

800-1000kg/h

Diesel engine

75HP

110HP

Ring die inner diameter

450mm

450mm

Feeding material diameter

12-15%

12-15%

Feeding material size

<5mm

<5mm

Final pellet size

6-12mm

6-12mm

Roller quantity

2

2

Delivery dimension

2150x1180x1950mm

2420x1210x1950mm

Weight

2800Kg

3000Kg
