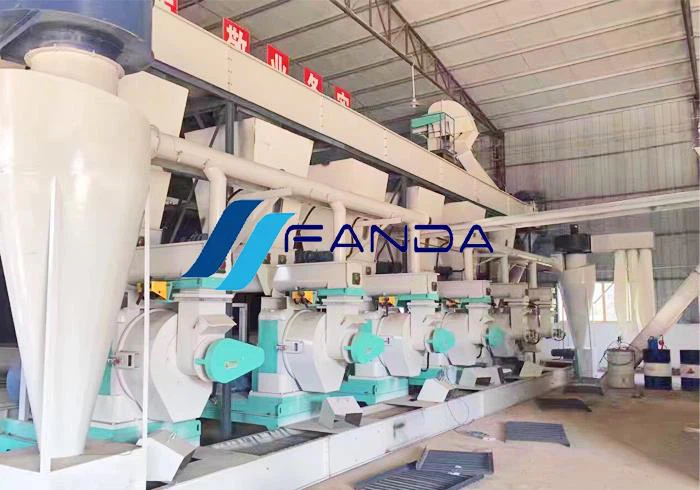

Wood Pellet Line

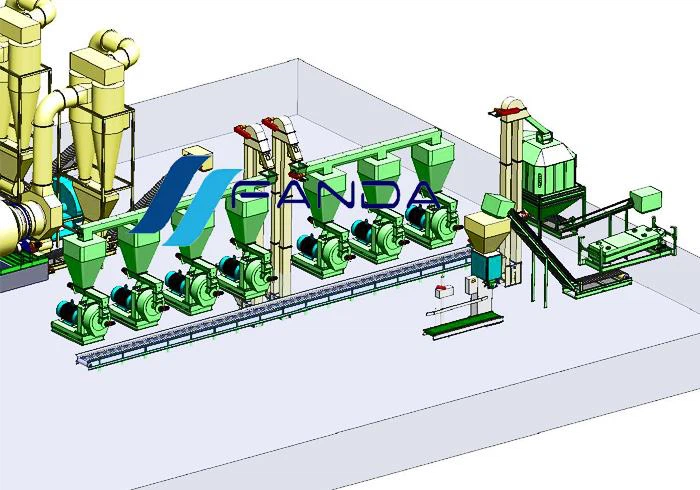

We provide professional design for wood pellet line with different capacity. According to different raw material character, assemble the most suitable machines. We provide detail factory layout and installation drawing. OEM wood pellet line as your requirement is possible....

Send InquiryChat Now

Wood pellet line

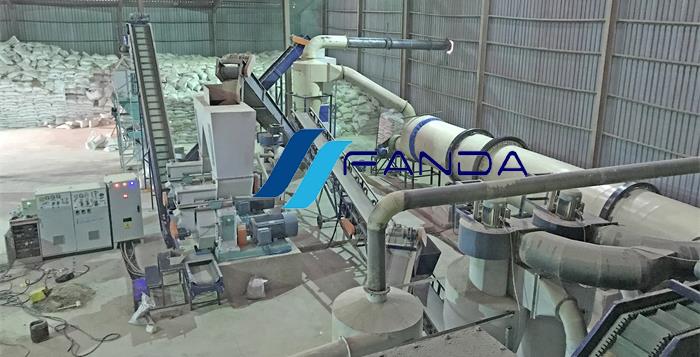

pellet line.jpgWood pellet line is made up of different machines according to the features of different kind of raw material. Before pellet mill need machines to process the size of raw material small than 5mm, process the moisture of raw material to 12-15%. Usually use wood chipper and hammer mill to process the size, use biomass drying machine to reduce the moisture. After pellet mill a cooler is needed to cooling down the pellets, a packing machine is usually needed to pack the pellets into bags. Aport from these main machines, the needed accessory machines is conveyor, blower, cyclone, airlock, de-duster and electric panel.

The following is an main machine assemble for a 1t/h wood pellet line, consider the raw material is wood log diameter <15cm, moisture 40-50%, for this pellet line first need a wood chipper to chipping the wood logs, then need a rotary drum dryer to dry the wood chips, following that a water drop hammer mill is best choice to turn the chips to sawdust, after this preparation of raw material, pellet mill will use this processed material to make pellets and a cooler to cooling down the pellets, final pack the pellets into bags by pellet packing machine.

If make DIN or EN+A standard pellets, the barks of wood can not go to pellets, so at beginning of pellet line a wood debarking machineis needed.

Details please refer to below explanation:

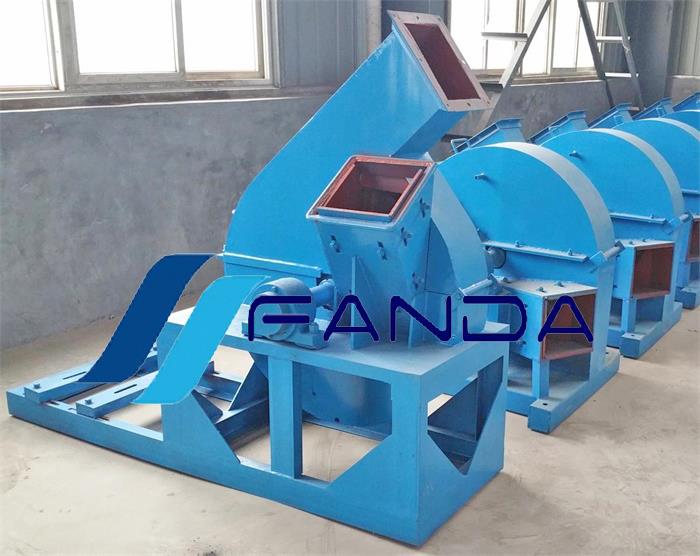

chipper.jpg1. Disc wood chipper

For small capacity pellet line a disc wood chipper is much more economical, takes less install area and easy operate. For big pellet line, drum wood chipper is better.

Model

Motor power

Capacity

Max feed wood diameter

Weight

BX680

22Kw

2-3t/h

13cm

1370Kg

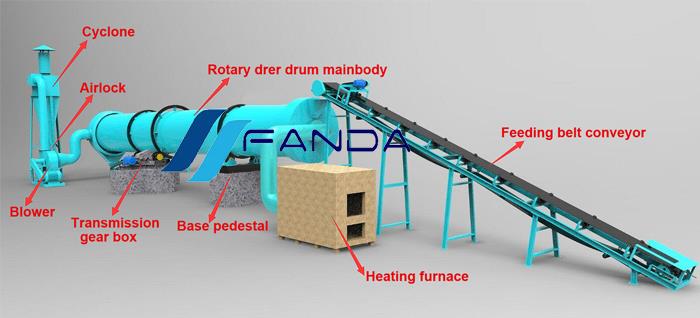

2. Rotary drum dryerdryer.jpg

Rotary drum dryer is best drying machine to dry wood chips, it can reduce the moisture to 12-15%. The system is simple, safe, and easy to operate, both heating source and electricity saving. The heating source for rotary drum dryer is wood waste, wood logs, tree branches.

Model

Motor power

Capacity

Drum diameter

Drum length

HJ1200

11Kw

1-1.2t/h

1.2 m

12m

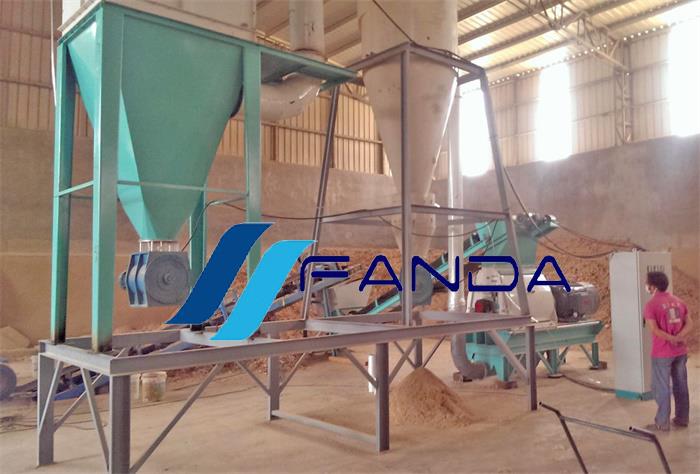

3. Whammer mill.jpgater drop hammer mill

Water drop hammer mill is widely used in wood pellet line to crush wood chips into sawdust, because the quality and stability of this kind of hammer mill is better. The control system use chain reaction technology, it is a good thing for production line control.

We usually suggest dryer before hammer mill in pellet line, because after drying the chips is easier to crush, and it will save electricity in crushing step. Also for hammer mill if raw material moisture is too high it is not easy to crush, cause the wet material will stick on the sieve and block the holes.

Model

Motor power

Capacity

Rotating speed

Hammer quantity

ZW40A

37Kw

1-1.5t/h

2980rpm

56 pcs

4. Ring die wood pellet millpellet mill.jpg

Ring die pellet mill MZLH420 model is the most popular machine to assemble pellet line, since the technology is mature, easy operate, stable running, and good quality final pellets.

Model

Motor power

Capacity

Dimension

Weight

MZLH420

90Kw

1-1.2t/h

2900x1100x2150mm

3000Kg

cooler.jpg5. Pellet cooler

The contraflow cooler is best cooling machine in wood pellet line, it can cooling the wood pellets from 70-80 Celsius to room temperature. The cooler is also together with a vibration sieve to pick out the small size from pellets.

Cooling the pellets before packing can improve the hardness of the pellets.

Model

Motor power

Capacity

Blower motor

Airlock model

SKLN1.5

1.5Kw

1-1.5t/h

5.5Kw

GTD2.8

6. Pellet packing machine

It is a quantitive weighing machine together with bag sealers, it can weight the pellets, fill the bags and seal the bags, we equip two kinds of sealer suit both plastic bags and woven bags.

Model

Motor power

Weight range

Packing speed

Tolerance

100A

0.37Kw

10-100kg/bag

≤300 bags/h

0.2%F.S
